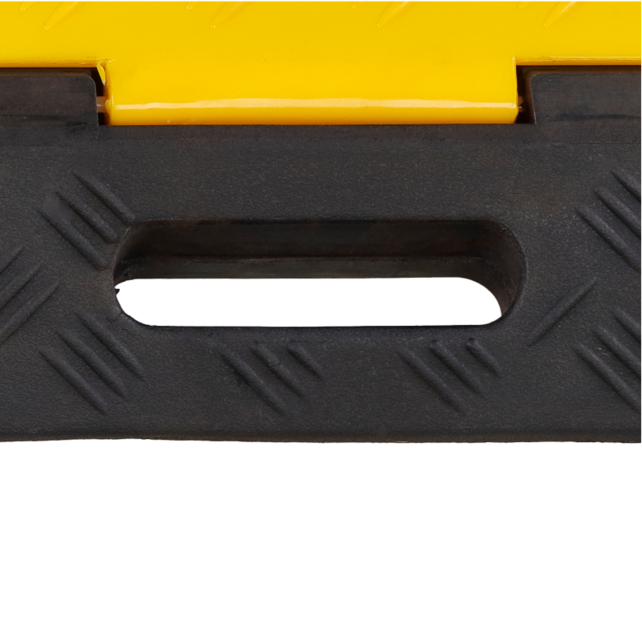

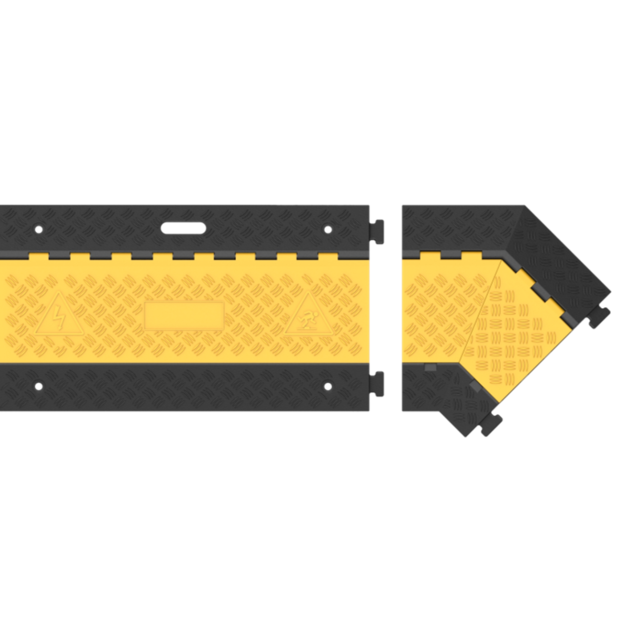

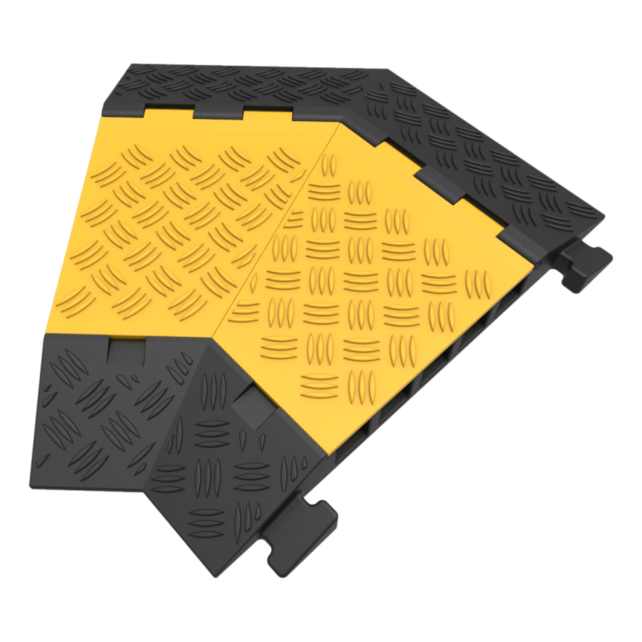

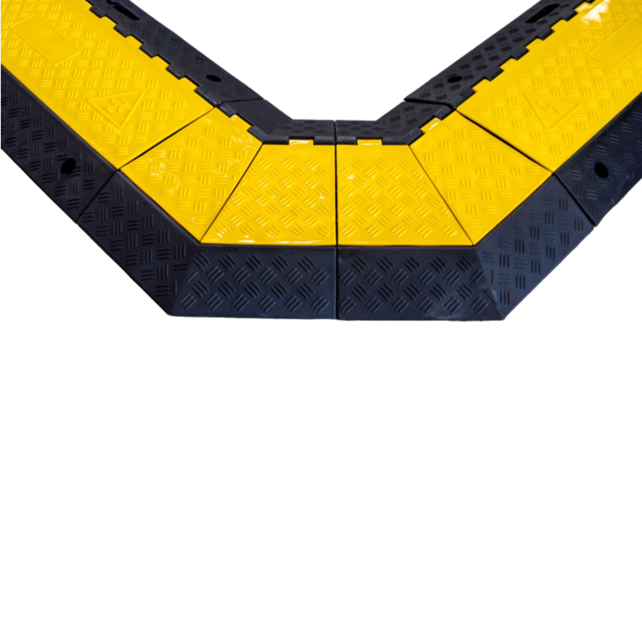

Cable Bridge with Cover 5 tunnels Ø 35 mm cable protection 45° angle

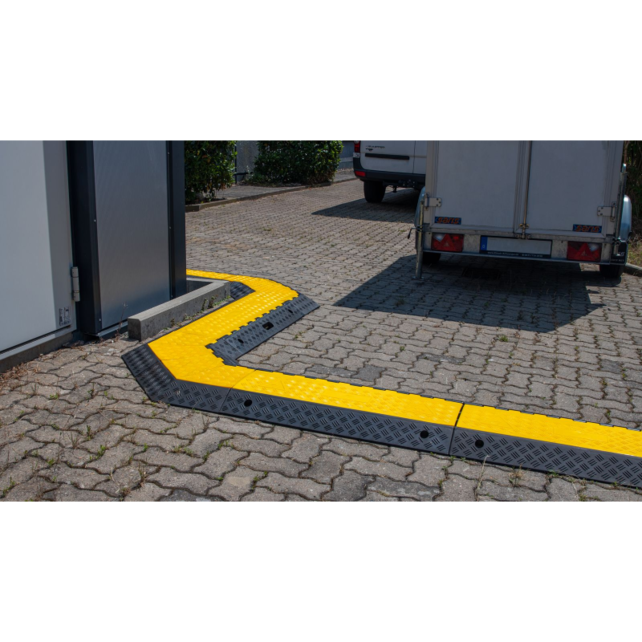

The modular Crash Stop cable bridges with cover are a reliable protection for cables and small hoses in walking and driving paths or at events. The modular cable bridge system offers an easy installation by one person. The axle load of the item is 5t. Rec
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
Cable Bridge with Cover 5 tunnels Ø 35 mm cable protection 45° angle.
The modular Crash Stop cable bridges with cover are a reliable protection for cables and small hoses in walking and driving paths or at events. The modular cable bridge system offers an easy installation by one person. The axle load of the item is 5t. Recommended overrun speed: 5-10 kmh
- Length: 500 mm
- Width: 500 mm
- Height: 50 mm
- No of cable tunnels: 5
- Size tunnel: 68/57/65 mm
- Size cable: 50 mm
- Net weight: 6 kg
- Material: Rubber
- Color: Black with yellow lid
- For indoor and outdoor use
The yellow-black colour allows fast recognition and ensures the traffic participants. The individual elements can be combined with one another via the connectors located on the side. The cables can be inserted easily from above. The different versions allow a safe protection by the cable guides located inside. The lid is made of a high-strength plastic. The chamfered longsides allow the cable bridges to be crossed easily to allow trouble-free traffic flow.
Art. No. | Description | Length x Width | Height | Weight | Axle load |
---|---|---|---|---|---|
SBKB200D2 | 2 channels, with handle | 980 x 240 mm | 45 mm | 6,5 kg | 5t |
SBKB200D3 | 3 channels, with handle | 900 x 500 mm | 70 mm | 16,5 kg | 8t |
SBKB200D5 | 5 channels, with handle | 900 x 500 mm | 50 mm | 17,0 kg | 8t |
SBKB200D3R | 45° Winkel to the right, 3 channels | 500 mm | 70 mm | 7,5 kg | 8t |
SBKB200D3L | 45° Winkel to the left, 3 channels | 500 mm | 70 mm | 7,5 kg | 8t |
SBKB200D5R | 45° Winkel to the right, 5 channels | 500 mm | 50 mm | 6 kg | 8t |
SBKB200D5L | 45° Winkel to the left, 5 channels | 500 mm | 50 mm | 6 kg | 8t |
Made in EU
Brand | SalesBridges |
Article code | SBKB200D5R |
SKU | SBKB200D5R |
EAN | 9501267864622 |
