Cable Bridge with Cover 5 tunnels Ø 33 mm cable protection GUARD-DOG

Cable Bridge with Cover 5 tunnels Ø 33 mm cable protection GUARD-DOG

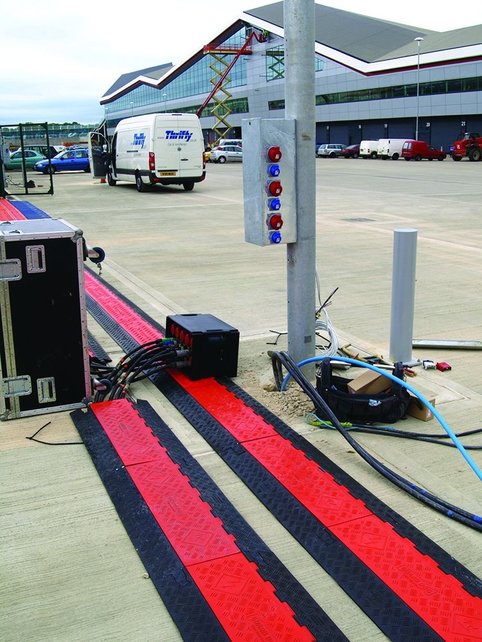

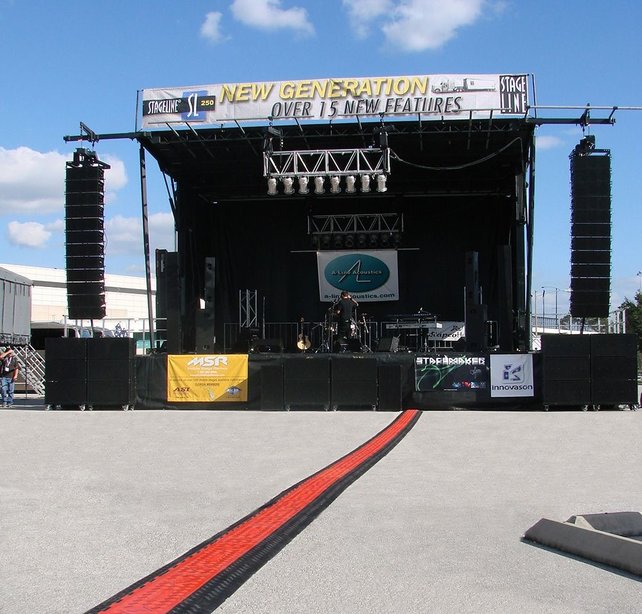

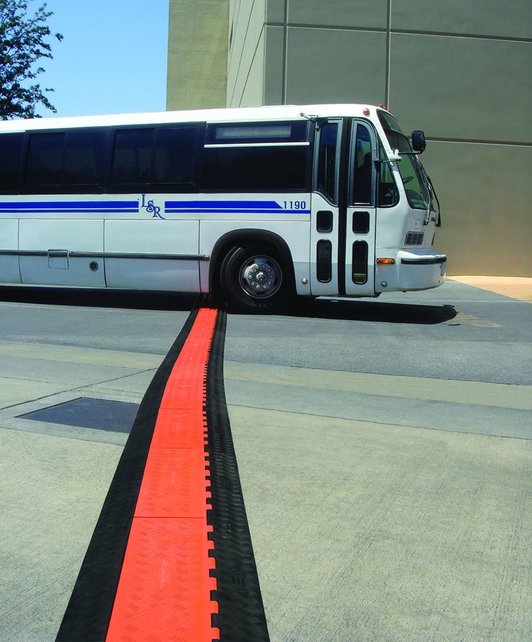

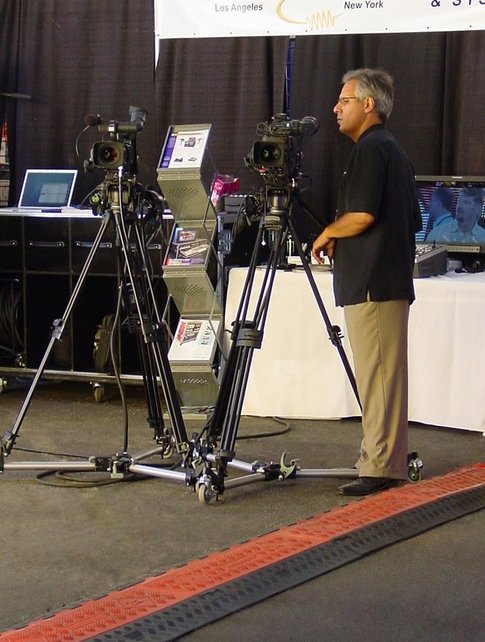

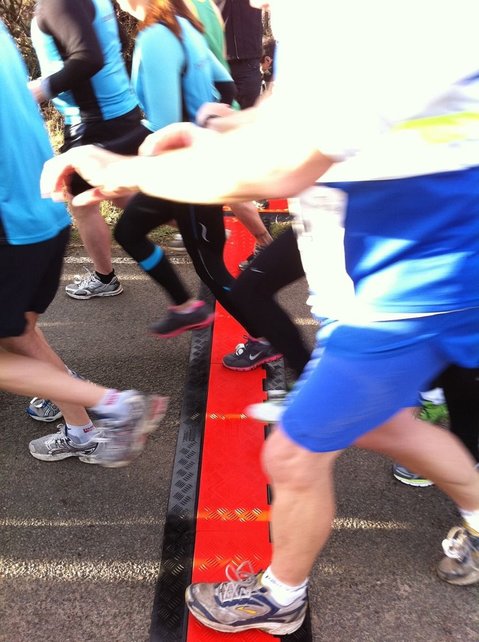

General Purpose Guard Dog® Cable Protector with hinged lid provides a safer crossing for vehicle and pedestrian traffic while protecting valuable electrical cables and hose lines from damage. Modular interlocking design is ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications.

5-Channel
• Protects cables and hoses up to 3.37 cm outside dia.
• Load Capacity 4.763 kg/Tire, 9.526 kg/Axle, Max load tested
at 21°C

• Dog Bone Connectors to extend to any desired length

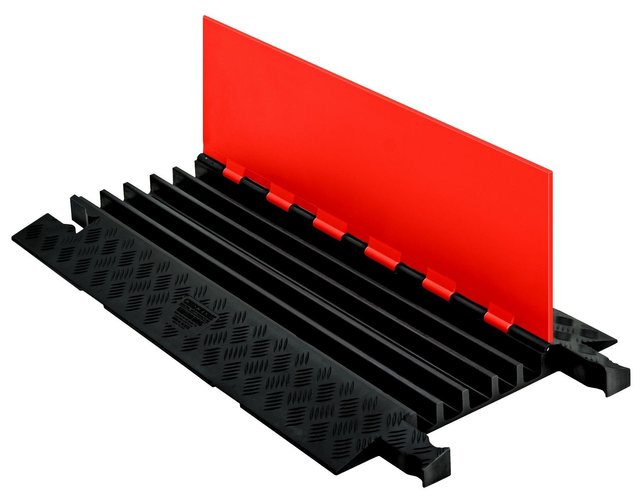

• Reinforced hinged lid for easy cable placement
• All-weather polyurethane construction
• Patented 5-bar tread surface for maximum traction
• Modular interlocking design for easy setup
• Includes four through-holes for temporary mounting

• Length: 914 mm

• Width: 510 mm

• Height: 47 mm

• No of cable tunnels: 5

• Size tunnel: 34 mm

• Size cable: 33.7 mm

• Net weight: 9.6 kg

• Material: Polyurethane

• Color: Black with red lid

• For indoor and outdoor use

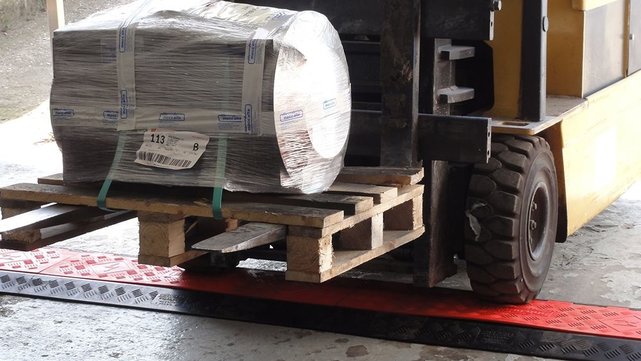

The Guard Dog 5-Channel Cable Protector features a hinged lid, a modular, interlocking design and the capacity to protect cables and hoses with an outside diameter of up to 1.325''. Its all-weather polyurethane construction gives it unmatched durability, and with the use of Dog Bone connectors, it can extend to any length. It also features a 5-bar tread surface, ensuring maximum traction for both vehicles and pedestrians. Because of its durability, it's equally-suited for both commercial and industrial applications. Use it to keep electrical cables at an amusement park out of harm's way or protect critical hose lines from passing vehicles at an industrial site. Either way, its more than up to the task, and its four through-holes ensure it can easily be secured to the base surface for a longer-term installation.

Made in USA
