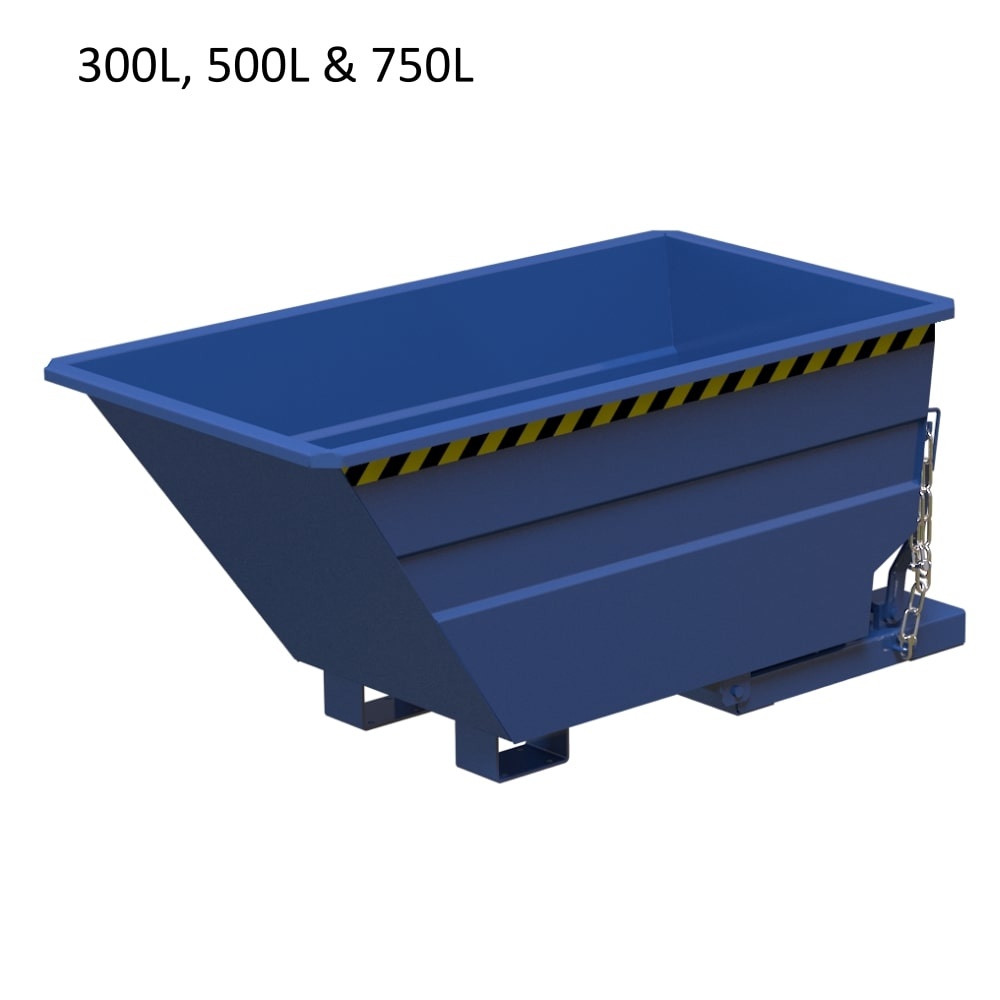

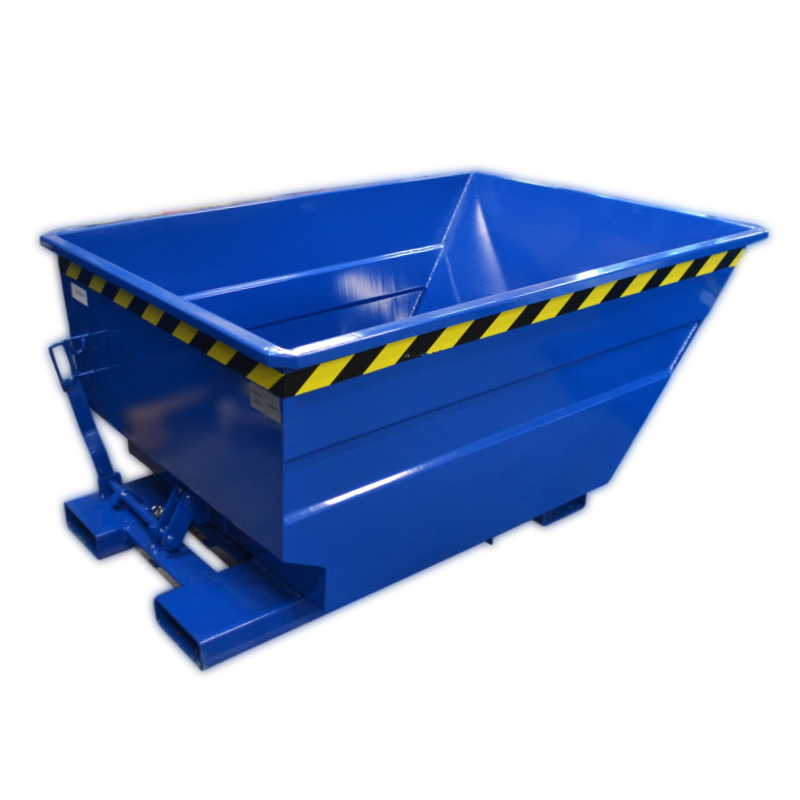

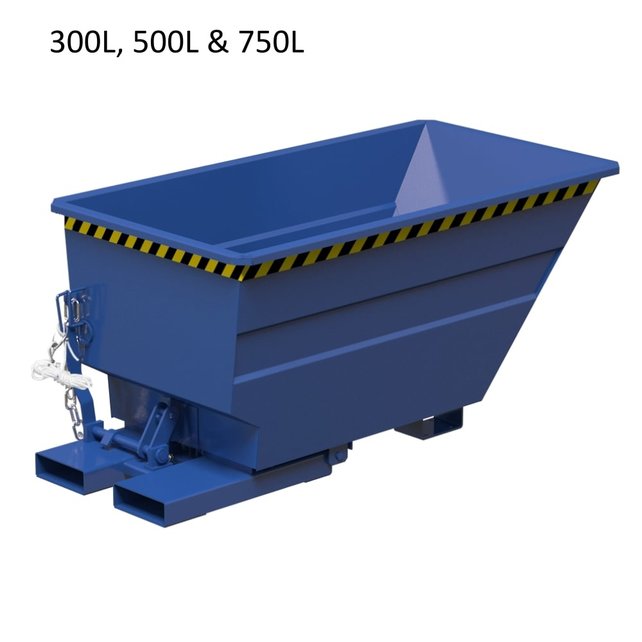

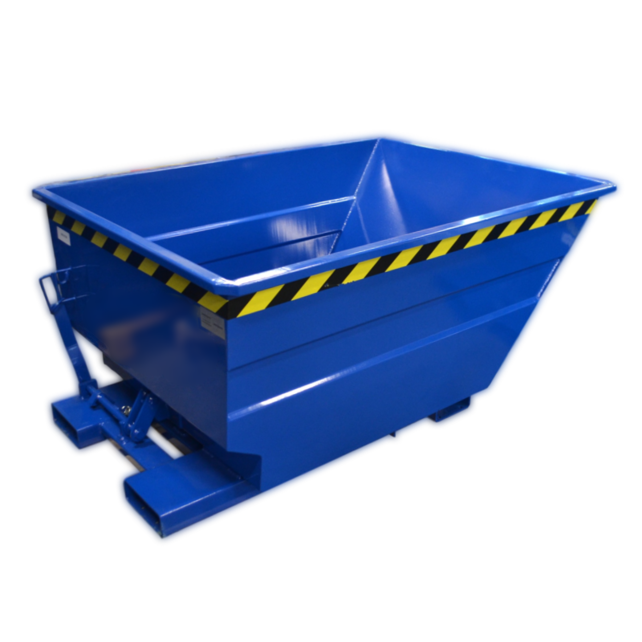

Chip Container SBTCUC300L Tipper Container

• Length: 1393 mm
• Width: 780 mm
• Height: 577 mm
• Without wheels
• Options wheels: nylon or PU wheels, Ø 160 mm, not mounted
• Option: mounting wheels
• Weight: 76 kg
• Payload: 1300 kg
• Volume: 300 L

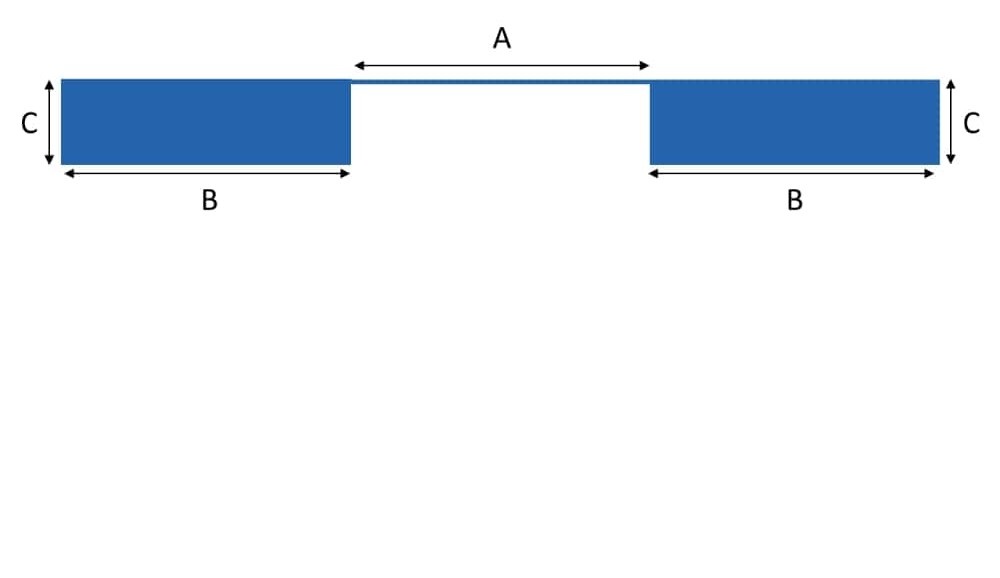

• Dimensions of lift pockets: (A) 128 mm x (B) 204 mm x (C) 62 mm
• Material: steel
• Finishing: powdercoating
• Color: RAL5010
• Suitable for forklift
• Container steel plate: 2 and 2 mm plus ribs
• Base frame steel plate: 4 and 5 mm
• Excellent center load gravity

Other RAL-colors available upon request.

Chip Container Suitable for forklift.

UC series

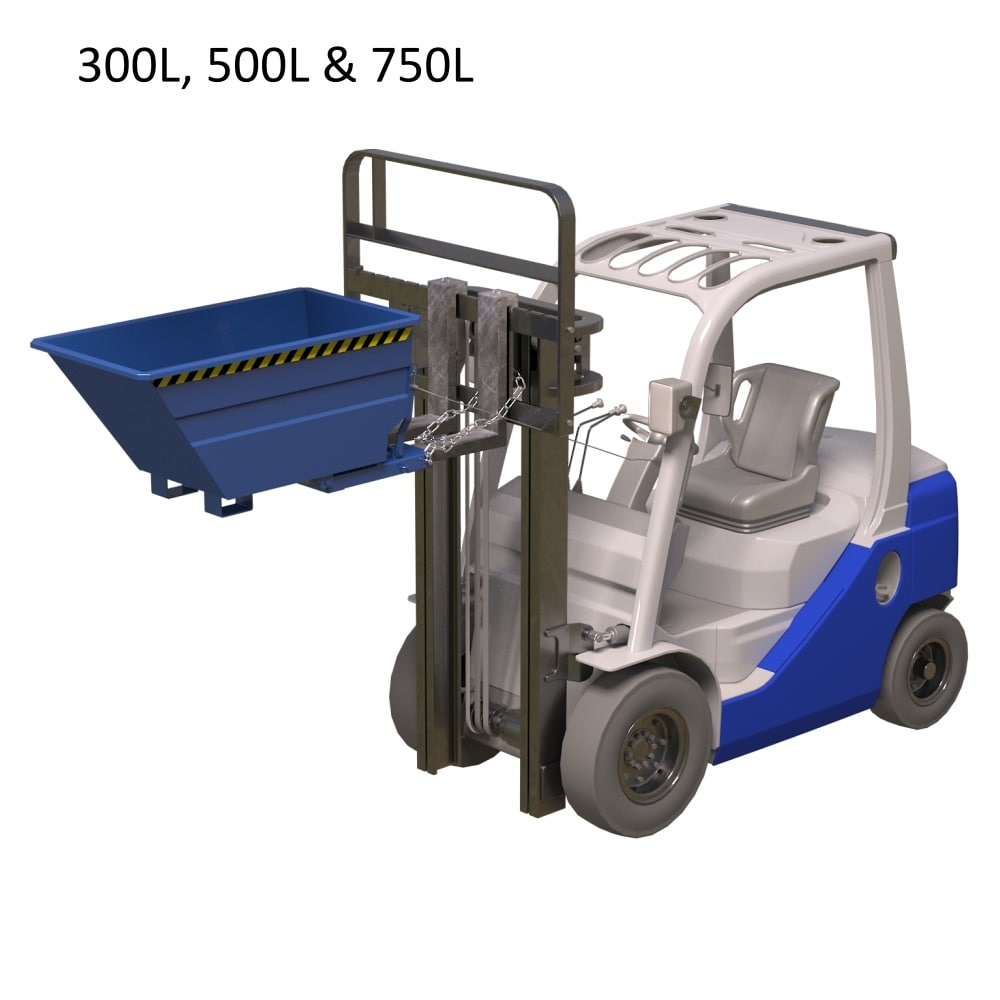

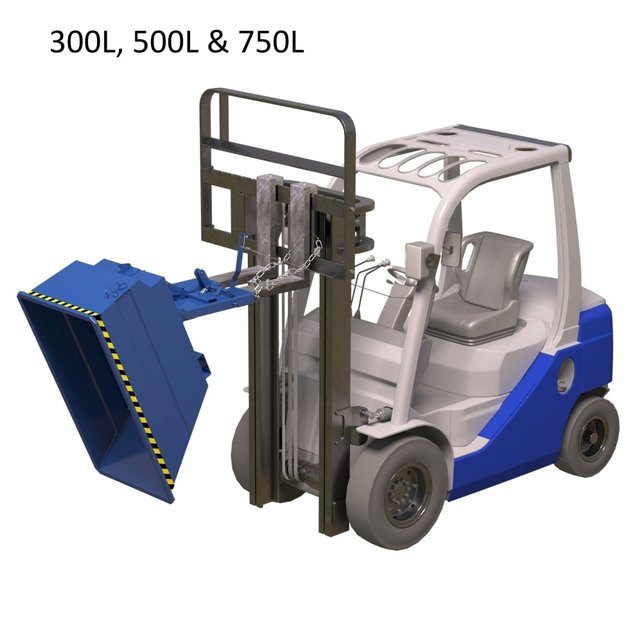

This Universal tipper container SBTCUC is the optimal solution for collecting and transporting all kinds of bulk materials. The UC series is perfect to fit on many machines due to its moderate height. Fitted with special tension spring between the base and the base to ensure the smooth emptying of the tipping skip. Equipped with a safe and stable unlocking mechanism, which can be operated by a pull cord from the driver's seat of a forklift. For additional safety a safety chain can be connected on the forklift. Add a Safety chain and cable set to your order.

The SBTCUC-series is characterized by its high loading and carrying capacity, from 1100 kgs upto 1800 kgs. Thanks to the use of high-quality steel sheets and excellent finishing, the Tipping Bins are very durable and robust. Finished with powder coating in standard color RAL5010.

The containers can be ordered with wheels. The wheels are delivered not mounted as a set, including mounting material. You have the choice between polyamide or PU wheels. We can also mount the wheels for you before delivery. Please tick ​​'mounting wheels' for this option.

Tipper container Application: wood, metal, aluminum RVS, plastic, glass, sand, stones …

Available sizes: 150L, 250L, 300L, 350L, 500L, 750L, 1000L, 1250L, 1500L
