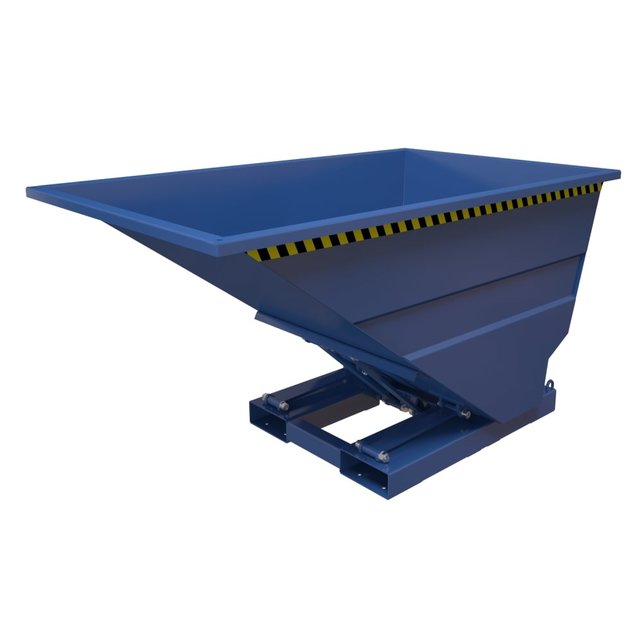

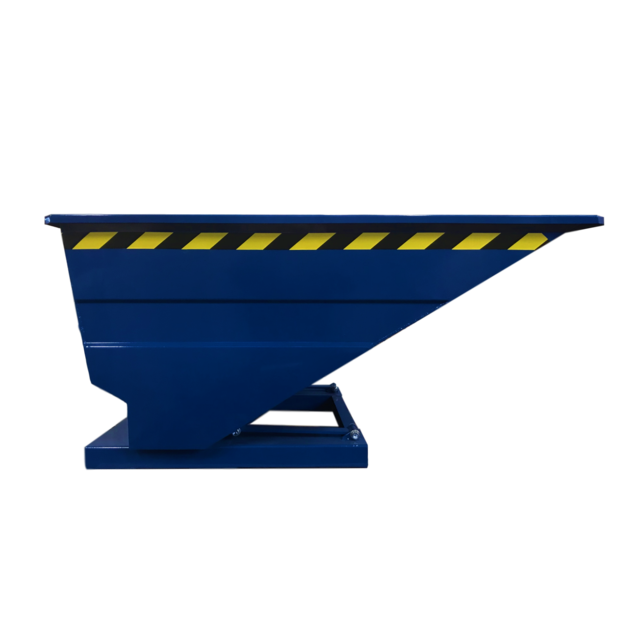

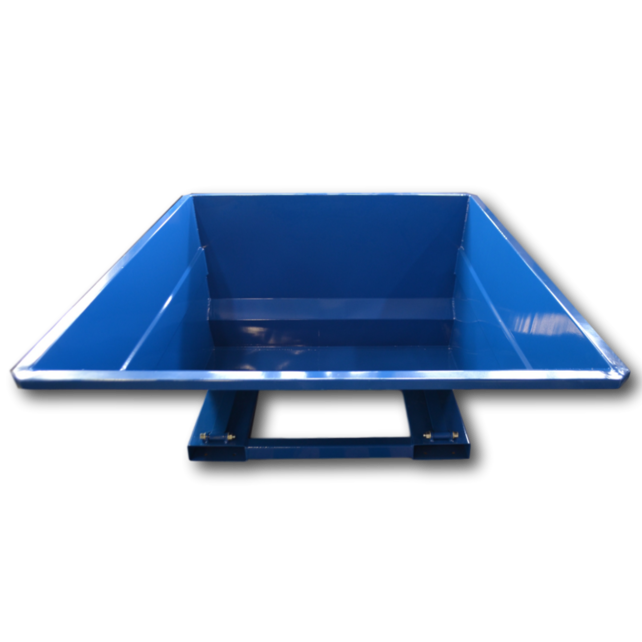

Skip Container 500L Tipping Bin SBTCSC500L for foklift

• Length: 1577 mm
• Width: 973 mm
• Height: 764 mm
• Without wheels
• Optional wheels: nylon or PU wheels, Ø 160 mm, not mounted
• Optional: mounting wheels
• Weight: 100 kg
• Payload: 1400 kg
• Volume: 500 L

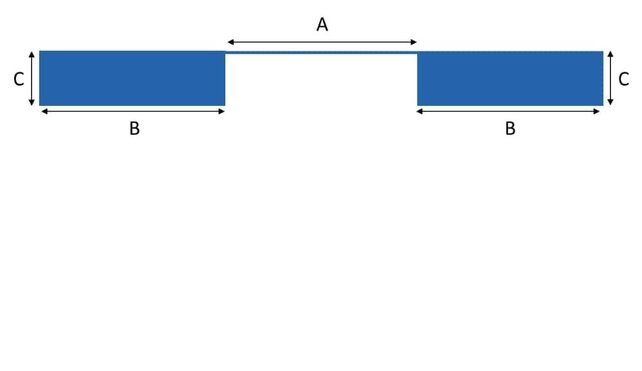

• Dimensions of lift pockets: (A) 268 mm x (B) 204 mm x (C) 66 mm
• Material: steel
• Finishing: powdercoating
• Color: RAL5010
• Suitable for forklift
• Container steel plate: 2 mm
• Base frame steel plate: 4 mm
• Excellent center load gravity

Other RAL-colors available upon request.

Chip Container Suitable for forklift.

SC-model container

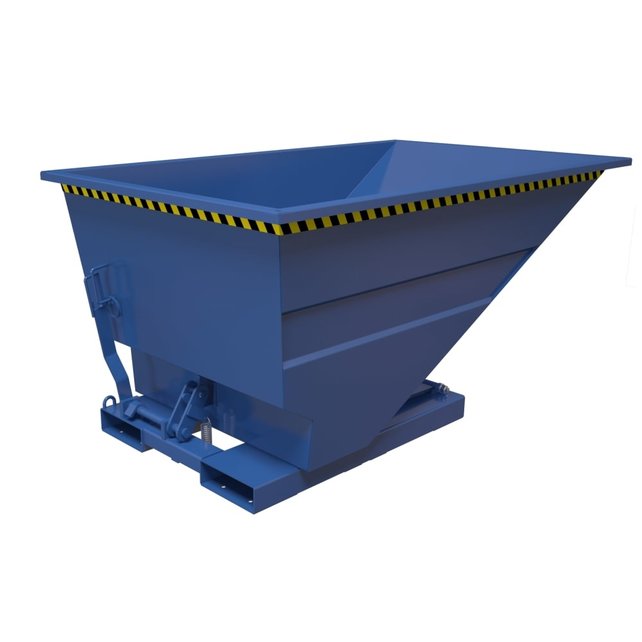

The SBTCSC Tipping Skip or Chip Container is equipped with a special scissor dump mechanism, which ensures smooth emptying. Base frame and container are connected by means of a sturdy connecting arm, which ensures optimal tilting. Equipped with a safe and stable unlocking mechanism, which can be operated by a pull cord from the driver's seat of a forklift. For additional safety a safety chain can be connected on the forklift. Add a Safety chain and cable set to your order.

Thanks to the use of high-quality steel sheets and excellent finishing, the Tipping Bins are very durable and robust. Finished with powder coating in standard color RAL5010.

The containers can be ordered with wheels. The wheels are delivered not mounted as a set, including mounting material. You have the choice between polyamide or PU wheels. We can also mount the wheels for you before delivery. Please tick ​​'mounting wheels' for this option.

Tipper container Application: wood, metal, aluminum RVS, plastic, glass, sand, stones …

Available sizes: 500L, 750L, 1000L

For B2B inquiries please contact us at [email protected].
