Chip Container 750L with Lifting Eyes Hinged FB-model Bottom Tipper Container for Forklift and Crane

Chip Container 750L with Lifting Eyes Hinged Bottom Tipper Container for Forklift and Crane FB-model

Product specifications

• Length: 840 mm

• Width: 1245 mm

• Height: 1145 mm

• Weight: 144 kg

• Payload: 1000 kg

• Volume: 750 L

• Plus: Lifting eyes

• Drive in fork dimensions (inside dimensions): (A) 415 mm x (B) 185 mm x (C) 75 mm

• Minimum fork length required: 1100 mm

• Material: steel

• Finishing: 2K Lacquer

• Suitable for forklift and crane

• Steel plate: 3 mm

• With CE marking

Many options possible:

• Option: safety set

• Options: other RAL colors and galvanized model

• Options: wheels in Nylon, PU or Elastic Rubber (supplied in box)

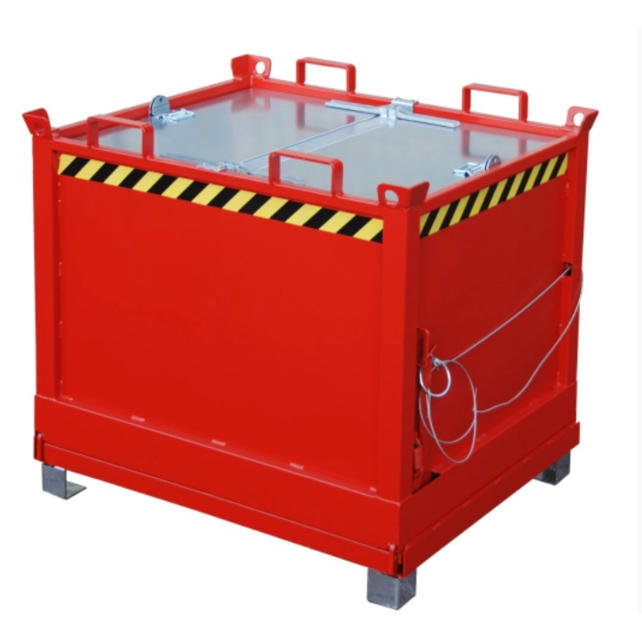

• Options: galvanized lid

• Options: galvanized centering walls for bottom flap (upon request)

Chip Container Hinged Bottom with Lifting Eyes Suitable for forklift and crane.

SBTCFB series

Nice, robust steel construction with smooth inner walls. Equipped with 4 crane eyes with a diameter of 40 mm. Stackable up to 3 containers on top of each other. Particularly flexible, manoeuvrable and can also be equipped with various additional attachments to perform different tasks. This container can be used for, for example, metal, glass, wood, rubble. Collection, storage and transportation with the SBTCFB is possible.

The unloaded container is also very suitable for use on construction sites, because several containers can be stacked on top of each other and can be transported with a forklift or crane. Space-saving storage and transported with ease. Equipped with lifting eyes for more ease of transport.

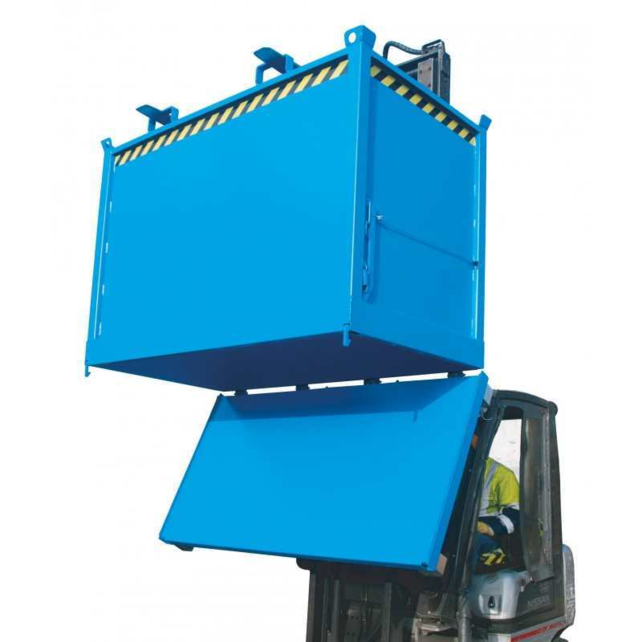

Equipped with a safe and stable release mechanism, which can be operated by a pull cord from the driver's seat. For extra safety, the bottom unloader can be attached to the lift truck with a safety chain.

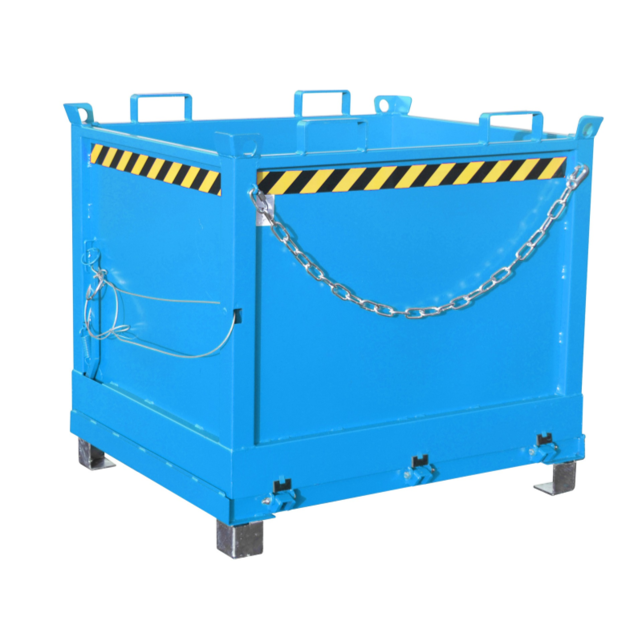

For extra safety, each container can be equipped with a safety set consisting of a safety chain and pull cord.

Finished as standard with high-quality 2K lacquer in RAL5012, but also available in RAL2000 orange, RAL3000 red, RAL6011 green, RAL7005 gray and hot dip galvanized.

Several options are possible, such as ordering wheels in Nylon, PU or Elastic Rubber version. These come in a box. You can also order a lid, but also oil and watertight with drain tap is possible. To do this, click on the options.

Tipping container applications: wood, metal, aluminum, stainless steel, plastic, glass, sand, stones ...

Thanks to the use of high-quality steel plates and excellent workmanship, the bottom flap containers are very durable and robust. Finished with high-quality 2K lacquer in the colors RAL5012 blue, RAL3000 red, RAL2000 orange, RAL6011 green or RAL7005 grey. Also available in a hot-dip galvanized version.

Bottom unloader applications: metal, glass, wood, rubble and more

Available sizes: 500L, 750L, 1000L, 1500L, 2000L
