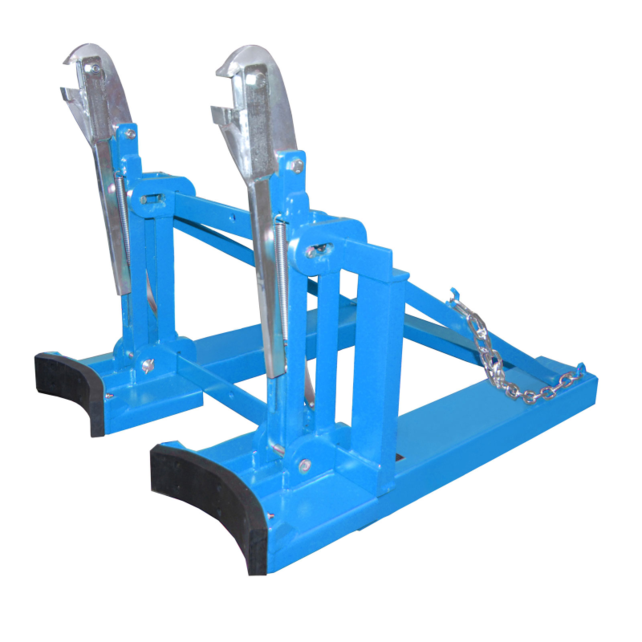

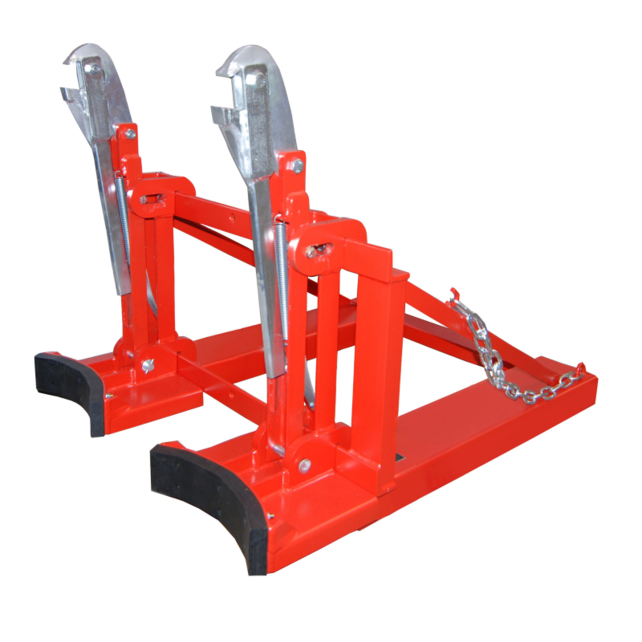

Double Drum Graber - For 2 x 200 L Steel Drums

Double Barrel clamp for Steel Drum Suitable for use with Forklift

The safe way to pick up and transport 200 liter steel bunghole drums, steel drums with a lid and rolling hoop drums

2x Drum grabber for forklift

Internal recording width 170 mm

Recording inner distance 530 mm

Length: 1185 mm

Width: 940 mm

Height:  925 mm

 Weight: 139 kg

Load capacity: 1600 kg

Finish: powder coating (Galvanized on request )

Color: Orange- Blue - Red

Pocket sizes: (A) 530 x (B) 170 x(C) 75 mm (A: space between sleeves, B: width of the sleeve, C: Height of the sleeve)

Suitable for steel drums:

Diameter barrel: 550 mm

Height of barrel: 800 mm

Barrel volume: 2x 200L ( for filled 200 liter steel bunghole drums, steel drums with a lid, rolling hoop drums and 220 liter plastic L-ring drums)

• Safe and fast handling of filled drums

• sturdy steel construction

• clear line of vision for the driver

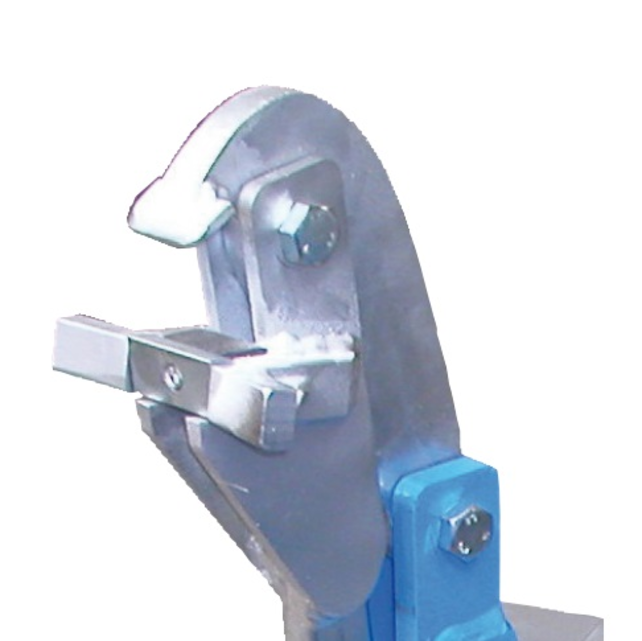

• galvanized gripping head as a standard feature

• rubber guard(s) to prevent damage to drum(s)

• gripping mechanism screwed to frame

• incredible gripping strength

• can be secured to prevent slipping

2 options :

- Normal Barrel Rim Support SBDHRSM2 : for filled 200 litre steel bunghole drums, steel
drums with a lid, rolling hoop drums and 220 litre plastic L-ring drums

-Board Barrel Rim Support - with broad drum support plate-SBDH91RSM2 :for filled 200 litre steel bunghole drums, steel
drums with a lid, 220 litre plastic L-ring drums and plastic double L-ring drums -

Made in Germany
