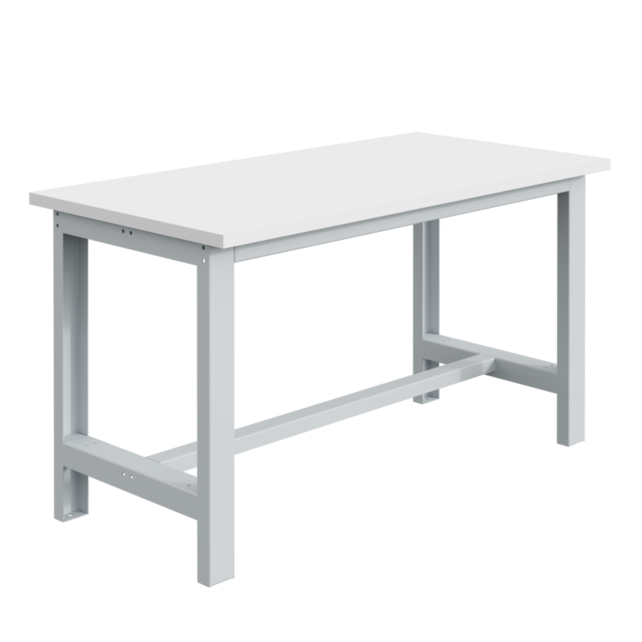

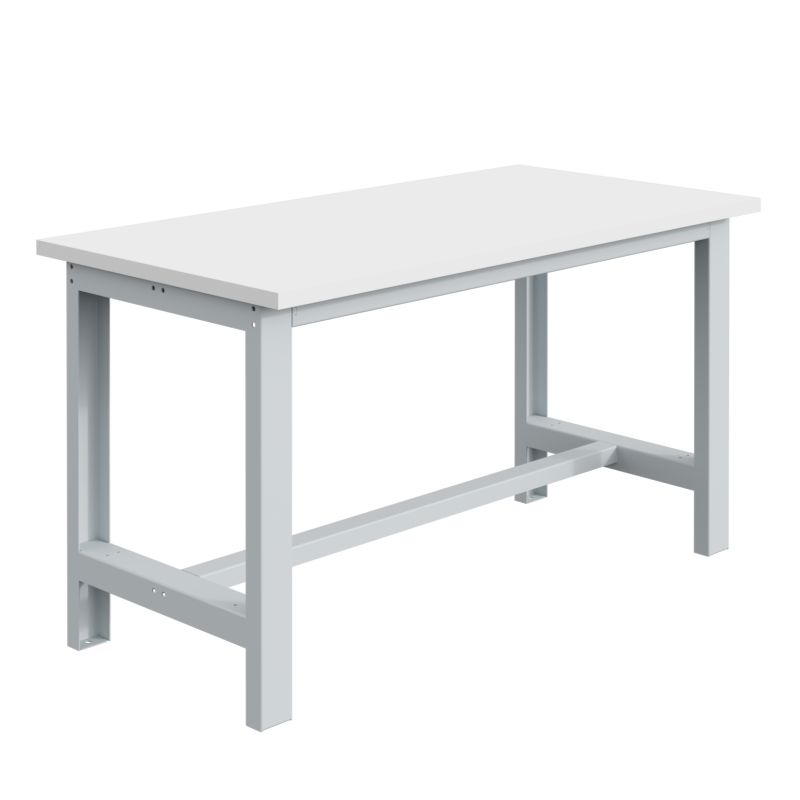

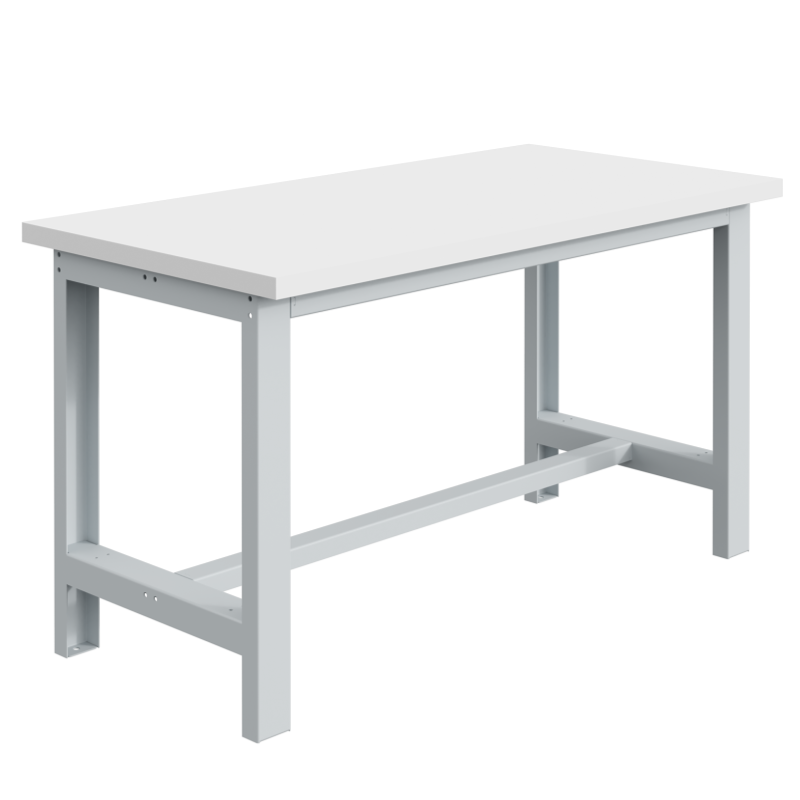

ESD Ergonomic worktable SI-model 1500 kg Light Grey

ESD Workbench or worktable with steel frame and 1500 kg capacity

Workshop furniture SI model

Protection against the undesirable effects of electrostatic discharge requires grounding of all elements in the work area.
This includes ensuring that the floor, furniture, and individuals are all connected to ground. An ESD-safe zone must be established, ensuring that electronic components are handled in an insulated area that guarantees the absence of electrical charge.
Worktops: ESD worktops are constructed from laminated panels infused with carbon to facilitate the circulation and discharge of static electricity.
Painting: A specialised, semi-conductive paint (RAL 7035, other colours available upon request) also infused with carbon, ensures the discharge of static electricity.
Connection Elements: Electrical braiding or grounding kits for equipment or personnel are employed to complete the discharge process. Specific jacks or castors are utilised to ground the furniture and/or seats.
Isolation Elements: Certain components, however, require insulation. Insulating foam kits are employed to achieve this by interrupting the flow of electrostatic current.

MEANS OF PROTECTION
ESD, or Electro Static Discharge, is the rapid passage of electrical current between two objects of different electrical potentials. ESD is caused by a build-up of static electricity due to the separation of electrical charges, which occurs when two materials are placed together and then separated. This break in contact between the two materials generates a charge, which in turn creates an electrical potential difference that could result in an ESD. The electronics industry is particularly concerned about the risk of undesirable leakage current, which could damage electronic equipment such as integrated circuits.

ELECTROSTATIC DISCHARGE (ESD)
There is no single method, but rather a multitude of methods to create an ESD zone. The first step involves compiling the necessary protection specifications, which indicate the level of protection required and the grounding system. This compilation should include an information and staff training manual for individuals present in the ESD zone, outlining the necessary equipment to be worn and movement restrictions for both personnel and handled elements. The zone must be viewed comprehensively, considering all aspects such as the floor, furniture, clothing, components, etc.

A COMBINED APPROACH
Our technical sales representatives and design office have the expertise and experience required to assist you in creating and
furnishing your ESD zone. They can recommend the best solutions tailored to your needs by adapting workstations and surrounding
furnishings to your specific constraints and requirements.
TECHNICAL SUPPORT
STANDARDISATION
The ESD furniture we offer complies with the protected environment standard IEC 61340-5-1.

Specifications and options

DIMENSIONS OF TABLES:

• Width: 75 cm, 100cm

• Lengths: 75, 100, 120, 150, 180, 200 and 240 cm

• Height: 83 cm

EXTRA OPTIONS:

Chest of drawers with 1,2, 3 and 4 drawers (RAL7035). Easy to mount under the table. The model with 4 drawers is a work table with a drawer unit of 4 drawers standing on the floor, right or left version.

Dimensions drawer cabinets with drawers:

• 1 drawer: 46 x 60 x 22 cm (drawer 15 cm)

• 2 drawers: 46 x 60 x 37 cm (drawer 15 cm)

• 3 drawers: 46 x 60 x 52 cm (drawer 15 cm)

• 4 drawers 40 x 60 x 80 cm left or right

The SI-model work tables or work benches can also be equipped with a galvanized shelf, which serves as an extension for storing tools, footstool, etc.

Not all dimensions, table top options and frame colors are available online. However, a lot is possible on request.

Made in France
