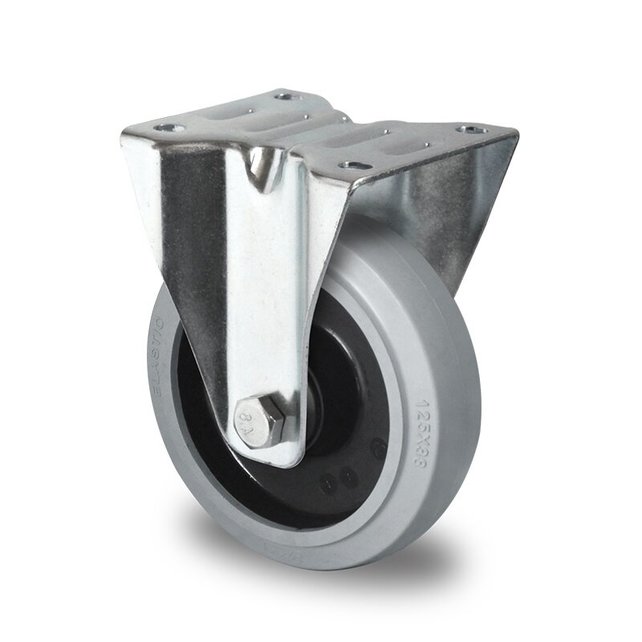

Fixed wheel

100mm 200kg

Grey Elastic Rubber

High-quality Polyamide

Specification

• Wheel material: Grey Elastic Rubber High-quality Polyamide
• Wheel diameter: 100 mm
• Tread width: 35 mm
• Hub width: 40 mm
• Load capacity: 200 kg
• Dimensions mounting plate: 105x80 mm
• Distance bolt holes: 80 / 77x60 mm
• Bolt size: M8
• Plate thickness: 2 mm
• Total height: 128 mm
• Bearings: roller bearing
• Housing surface: zinc blue
• Temperature: - 20 to + 80 ° C
• Standard: EN 12532

This wheel is made of High-quality Polyamide with Grey Elastic Rubber, making it extremely suitable for all kinds of surfaces. Wear-resistant, silent and streak-free for indoor and outdoor use. It is provided with a top plate for fixing and can be fixed with 4 bolts. Make sure the size of the mounting plate and the bolt holes match what you need!

Elastic Rubber wheels are wear-resistant, noiseless, streak-free, easy to clean, high load-bearing capacity and extremely good rolling properties. When the wheels are standing for a longer period of time, they can deform, but this does not happen with the elastic rubber wheels. In addition, they can withstand low and high temperatures. Extremely user-friendly wheels for indoor and outdoor use.
