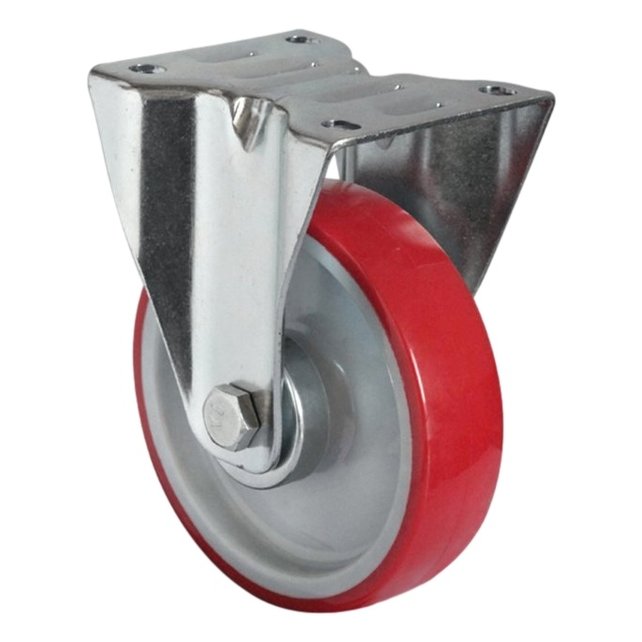

Fixed wheel

100mm 150kg

PU red

Specification

• Wheel material: PU red
• Wheel diameter: 100 mm
• Tread width: 32 mm
• Hub width: 40 mm
• Load capacity: 150 kg
• Dimensions mounting plate: 105x80 mm
• Distance bolt holes: 80 / 77x60 mm
• Bolt size: M8
• Plate thickness: 2 mm
• Total height:  125 mm
• Wheel bearing: Roller bearing
• Housing surface: zinc blue
• Temperature: - 40 to + 80 ° C
• Standard: EN 12532

Swivel castor without brake with a diameter of 100 mm and a load capacity of 150 kg. This wheel is made entirely of Polyurethane and is therefore extremely suitable for hard and flat surfaces. It is provided with a top plate for fixing and can be fixed with 4 bolts. Make sure the size of the mounting plate and bolt holes match what you need!

PU wheels are durable, easy to clean, have a high load-bearing capacity and good rolling properties. For uneven floors, thresholds, tiles or, for example, more sound absorption, it is better to use PU or Elastic Rubber wheels.
