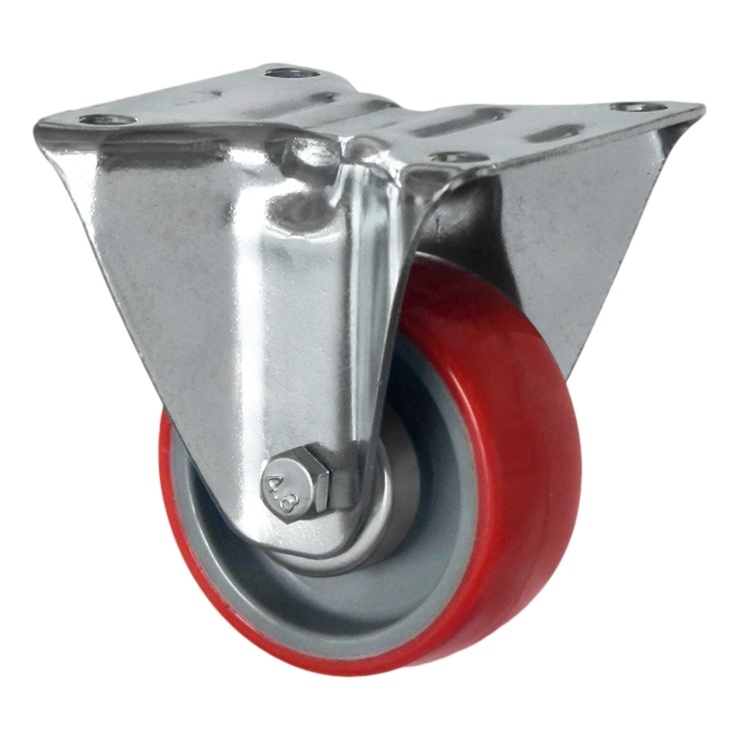

Fixed wheel

80mm 130kg

PU red

Specification

• Wheel material: PU red
• Wheel diameter: 80 mm
• Tread width: 32 mm
• Hub width: 40 mm
• Load capacity: 130 kg
• Dimensions mounting plate: 105x80 mm
• Distance bolt holes: 80 / 77x60 mm
• Bolt size: M8
• Plate thickness: 2 mm
• Total height:  105 mm
• Wheel bearing: Roller bearing
• Housing surface: zinc blue
• Temperature: - 40 to + 80 ° C
• Standard: EN 12532

Swivel castor without brake with a diameter of 80 mm and a load capacity of 130 kg. This wheel is made entirely of Polyurethane and is therefore extremely suitable for hard and flat surfaces. It is provided with a top plate for fixing and can be fixed with 4 bolts. Make sure the size of the mounting plate and bolt holes match what you need!

PU wheels are durable, easy to clean, have a high load-bearing capacity and good rolling properties. For uneven floors, thresholds, tiles or, for example, more sound absorption, it is better to use PU or Elastic Rubber wheels.

Do you need advice? Contact us immediately via email [email protected] or telephone +31652883848
