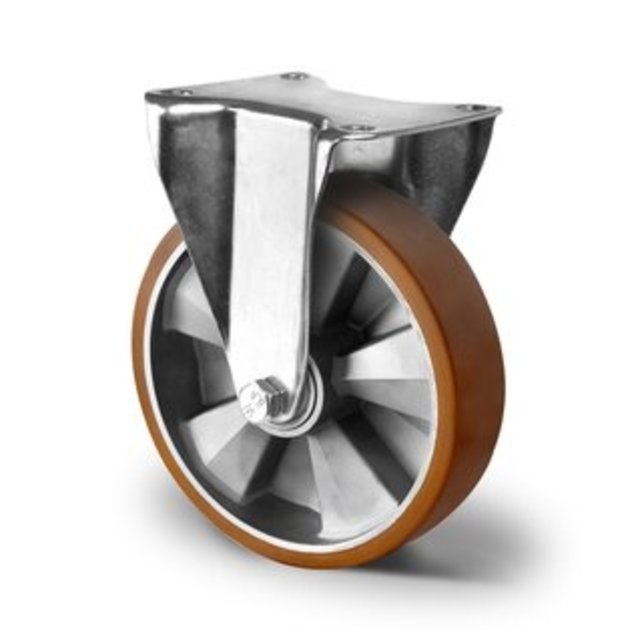

Fixed wheel

160mm 600kg

Heavy Duty

High-quality PU brown

Specification

• Wheel material: High-quality PU
• Wheel diameter: 160 mm
• Tread width: 50 mm
• Hub width: 60 mm
• Load capacity: 600 kg
• Dimensions mounting plate: 135x110 mm
• Distance bolt holes: 105 x 84/76 mm
• Bolt size: M12
• Plate thickness: 5 mm
• Total height: 195 mm
• Bearings: double ball bearing 6204
• Housing surface: zinc blue
• Temperature: - 20 to + 60 ° C
• Standard: EN 12532
•

This wheel is made of high-quality PU, making it extremely suitable for use on smooth and flat surfaces.

These heavy duty PU wheels are wear resistant, noisefree, markingfree, high load capacity and extremely good rolling properties. They are made to carry extra heavy loads or to carry loads over even surfaces, such as in warehouses and sheds. Also suitable for heavy transport such as hard stone/granite and heavy constructions. In addition, they can withstand low and high temperatures.

It has a top plate for mounting and can be secured with 4 bolts. Check whether the size of the mounting plate and of the bolt holes correspond to what you need!
