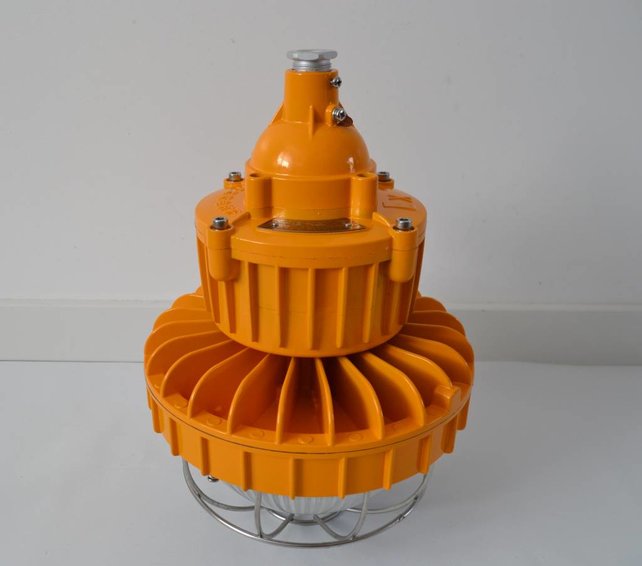

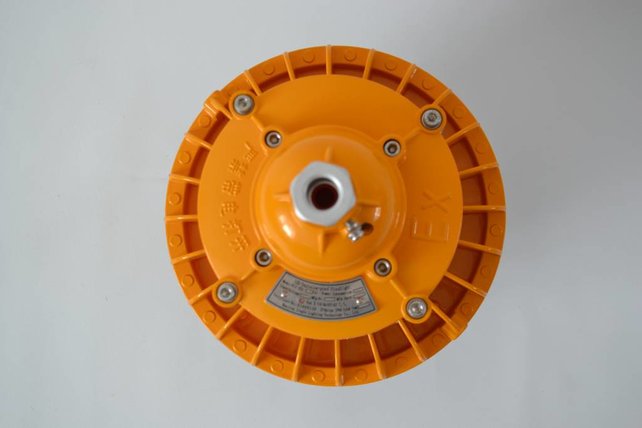

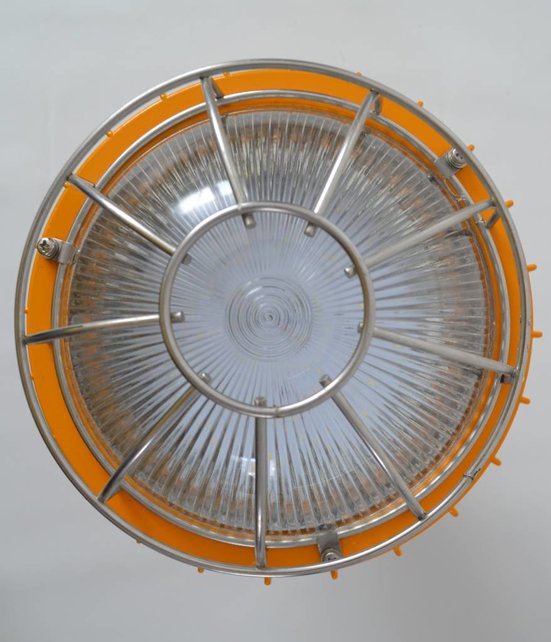

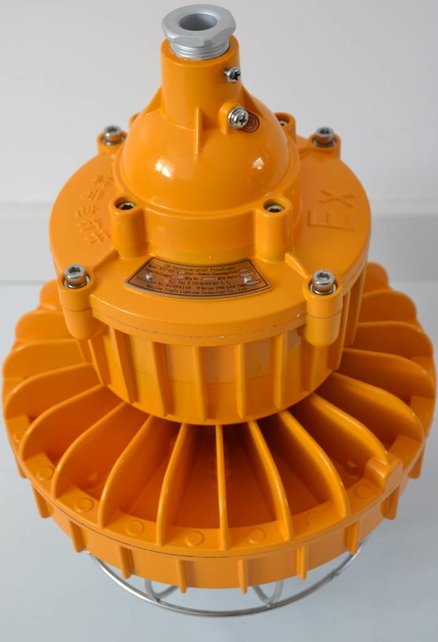

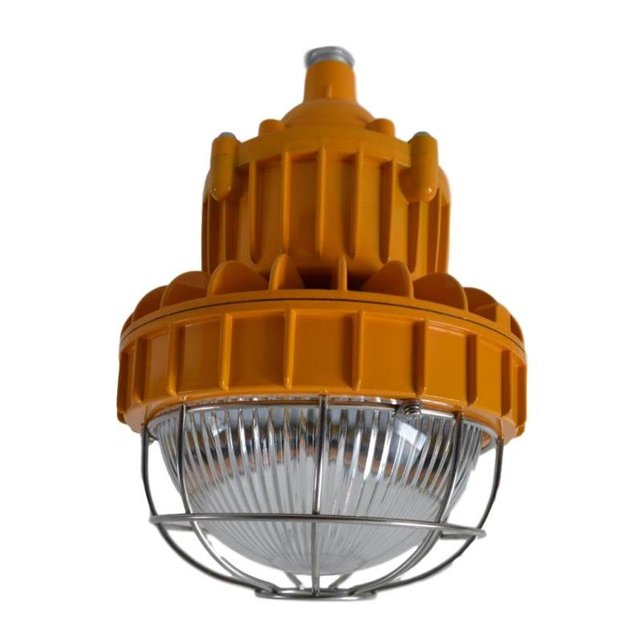

Floodlight LED 60W Explosion Proof CREE Chip

• LED Chips: CREE
• Driver: MEANWELL
• Power: 60 Watt
• IP: IP66
• Lumen: 4000 LM
• Beam angle: 65°/110°
• Lifetime: 50.000 hours
• Input voltage: DC24/AC 100-277V
• Color: 5500K
• Operating temp.: -30°C ~ 50°C
• Operating humidity: 20% ~ 95% RH
• Gas environment: T5
• Dust environment: T95°C
• Housing: Die-Casting Aluminium
• Lamp glass: Tempered Glass
• Mounting: Ceiling, Hanging, Wall
• Mounting Height: 3 ~ 6 m
• Anti-corrosion grade: WF2
• Dimensions product: (L) 246 mm x (B) 246 mm x (H) 346 mm
• Nett weight: 5.5 kg

Product Description

The LED luminaire is treated with grade WF2 corrosion and moisture proof, withstanding wide range of temperature and rough environment. Our product is fitted with CREE LED chips and Meanwell driver in order to guaranty a long life spam and free maintenance. With a modern design it is suitable for places where moisture, dirt, dust, corrosion and vibration are encountered. In addition it is used in NEMA 3 and 4X areas where wind, water, snow or high ambient temperatures are expected and in hazardous locations with flammable vapors, gases or combustible dust, as defined by the NEC and IEC. Also it provides an excellent light output with high uniformity and perfect vertical light distribution.

Usage and applications

• Gas Stations
• Storage Facility
• Manufacturing Plant
• Marine Loading Terminals
• Chemical Processing Facility
• Petrochemical Processing Facility

Features

• Instant On-including after power interruption
• World Voltage AC 100-277V 50/60Hz
• 50,000+ maintenance free hours @L80
• Heavy duty copper-free
• Anodized Die-cast aluminum housing
• Shell surface of electrostatic spraying
• Excellent anti-corrosive property
• All exposed fasteners with quality stainless steel
• Thermal shock and 7J impact resistant tempered glass lens
• Shell protection, over-voltage and over heat protection
• Harsh & Hazardous Duty

Compliance
NEC Standard
Class I, Div. 1&2, Groups B, C, D Class I, Zone 1&2, Groups IIB+H2, IIA Class II, Div. 1&2, Groups EFG
Class III
Enclosure Type 4 (NEMA 4, 7B CD, 9EFG)

ATEX en IEC Ex Standard
Zone 1 and Zone 21 areas
Zone 2 and Zone 22 areas
EN 60079-0， EN 60079-1, EN 60079-31 Cert # IEP 15 ATEX 0326
Ex II 2G Ex d IIB T5 Gb
Ex II 2D Ex tb IIIC 95 °C Max Db IP 66

IES data file available upon request.
