Fork head props 1.80 up to 3.00 meters Jacks SBPBM30

Fork head props Jacks Galvanized

SBPBM30: 1.80 up to 3.00 meters

TYP BM

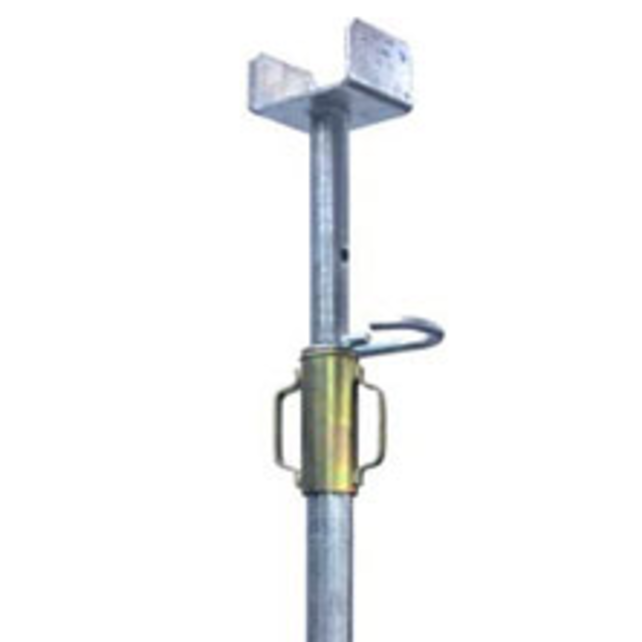

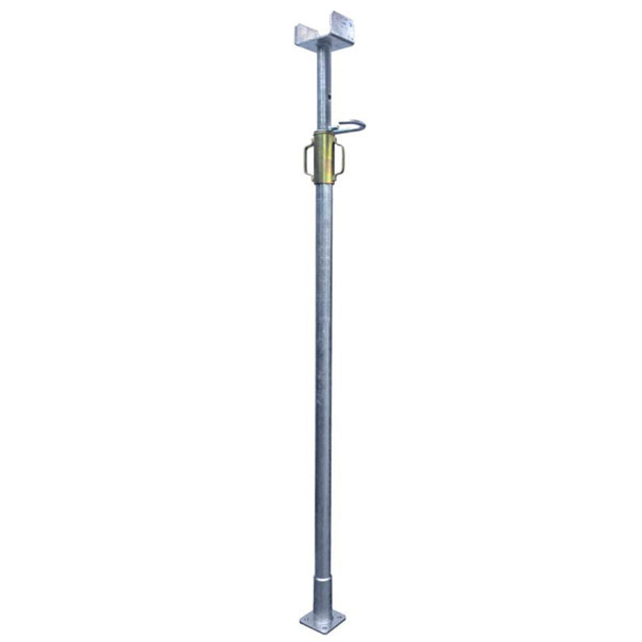

Props made with fork already welded to support the beam in the support system.

Fork head stays manufactured according to customer requirement.

They come in 4 models with different extension and capacity:

SBPBM30: extendable between 1.80 and 3.00 meters
SBPBM36: extendable between 2.10 and 3.60 meters
SBPBM41: expandable between 2.40 and 4.10 meters
SBPBM50: extendable between 2.90 and 5.00 meters

Dimensions:

• Inner diameter mm 48.30

• Outer diameter mm 57.00

• Plate mm 120x120x8

• Fork thickness mm 8

• Hook diameter mm 15

Features -fork head stays:

hook chamfered at the ends: easier to insert into the holes thanks to its ergonomic shape;
anti-shear system: the greater length of the inner tube compared to the outer one makes it possible to guarantee a difference of at least 10 cm between the two to avoid injury;
inner holes obtained with machines that can machine them perfectly or by means of a milling system that obtains twists on the surface of the pipe: both methods guarantee the complete absence of burrs in the vicinity of the holes;
inner tube anti-slip-off system, to prevent the tube from slipping accidentally, thus guaranteeing integrity and safety when laying down and moving on site;
hot-dip galvanizing, with a guaranteed minimum thickness of 50 microns.

Request:
sticker personalized with the customer's logo, with information about capacity and maximum expansion;
quick release system, an accessory that guarantees the release of the support under the load by simply hitting it with the hammer to speed up and simplify the release procedure and reduce operator effort.

Note: the capacities indicated in the table always refer to the capacity of the single post shore. Higher capacities can be achieved by binding, port-like systems or pipe coupling systems. The gate-like system is a temporary structure suitable for creating a loading tower. By tying the props in four, the capacity can be maximized. The pipe coupling system provides top and bottom pipe with couplings; it is the same figure of the gate, which is more economical, but less fast.

Made in EU - EN 1065 Certified.
