Headlock Self-fixing

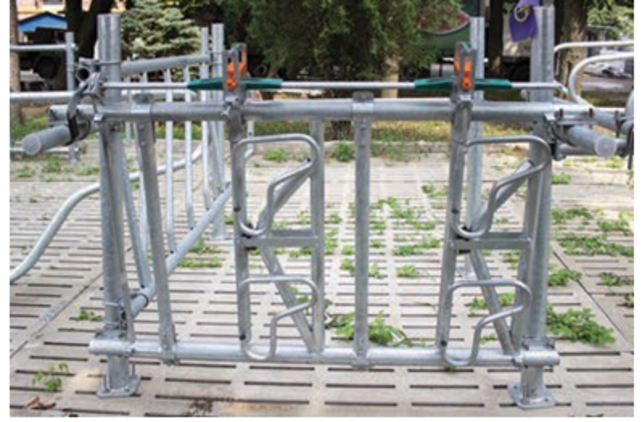

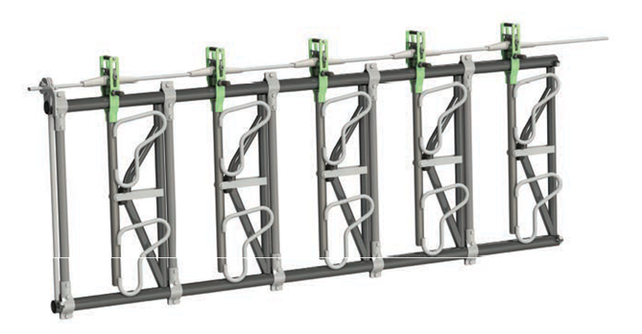

Headlock type of fodder table barrier is self-fixing mechanism. Safe feeding arrays have aperture for the head at the top and at the bottom. Thanks to lower aperture for head, the cow, if needed, can be freed if it is unable to climb on its own to the upper aperture. All positions of the locking mechanism can be operated with one locking lever. Hot-dip galvanized steel for a long life, protected against corrosion and rust.

Available in the following dimensions:

Headlock self-fixing with 2 places of 550 mm - total length of 1250 mm

Headlock self-fixing with 3 places of 550 mm - total length of 1800 mm

Headlock self-fixing with 4 places of 550 mm - total length of 2350 mm

Headlock self-fixing with 5 places of 550 mm - total length of 2900 mm

Headlock self-fixing with 2 places of 650 mm - total length of 1500 mm

Headlock self-fixing with 3 places of 650 mm - total length of 2150 mm

Headlock self-fixing with 4 places of 650 mm - total length of 2800 mm

Headlock self-fixing with 5 places of 650 mm - total length of 3450 mm

Main advantages:

• Reliability of construction.
• Easy to operate.
• Possibility of individual fixation.
