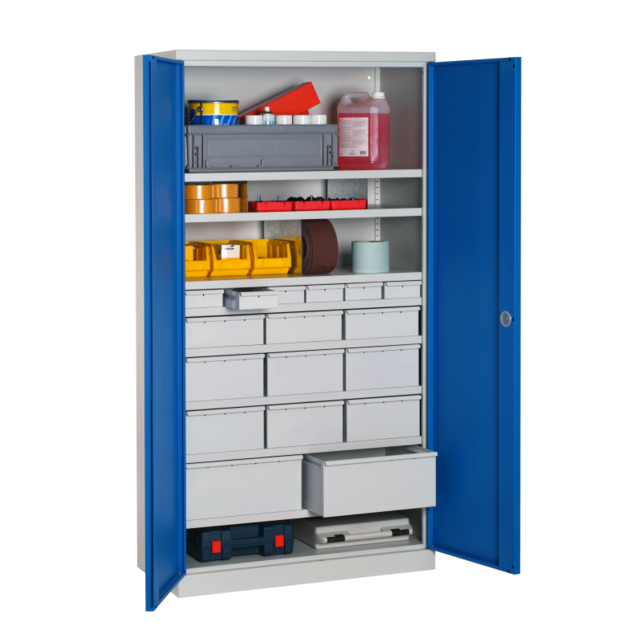

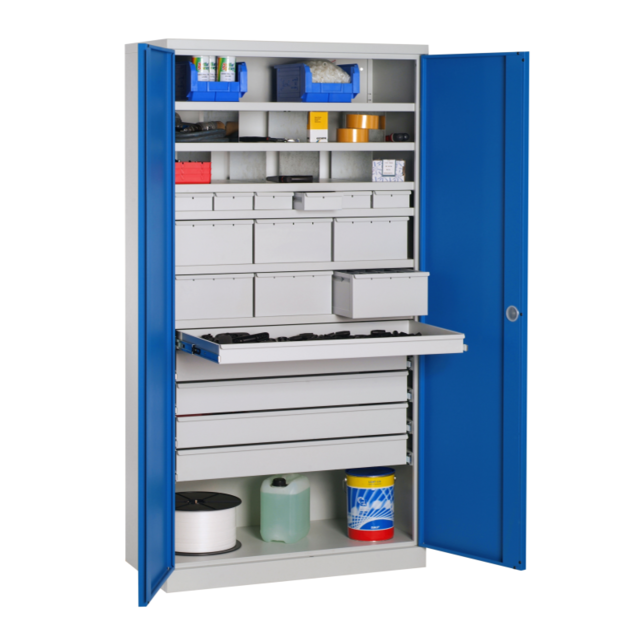

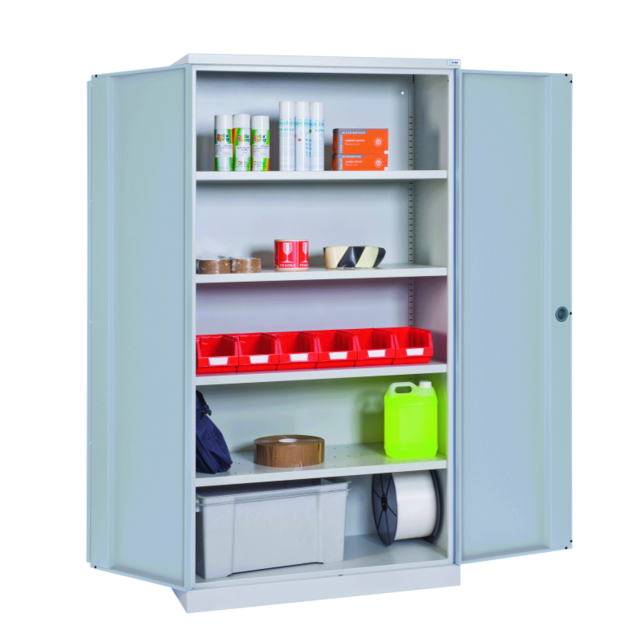

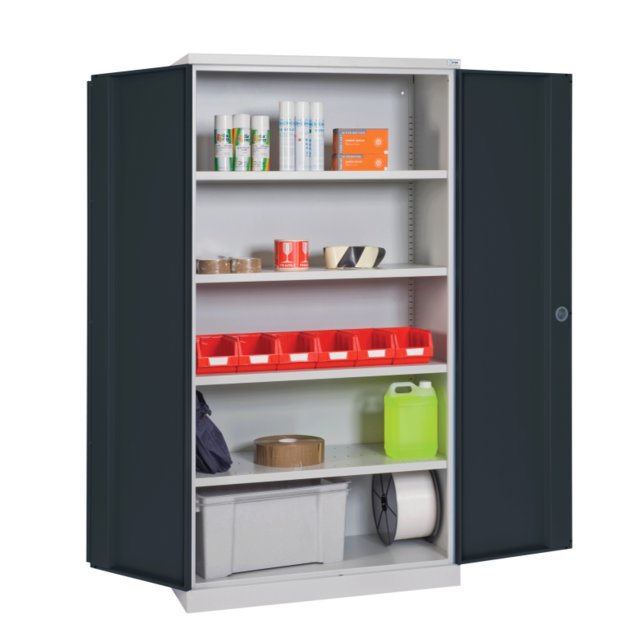

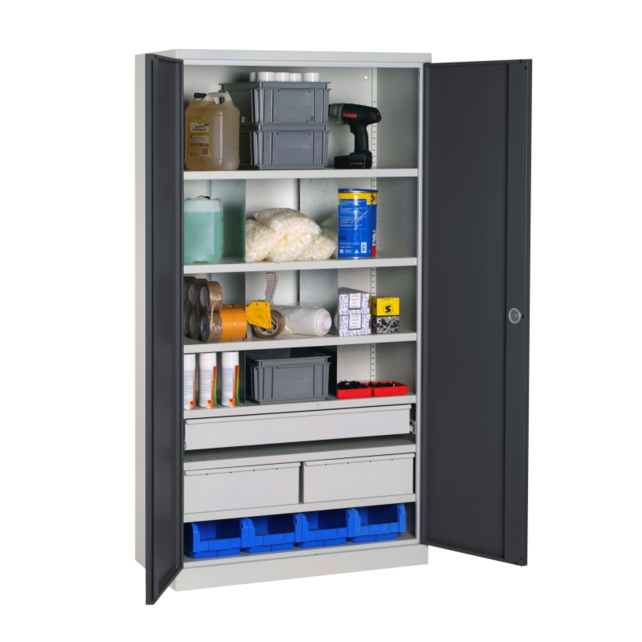

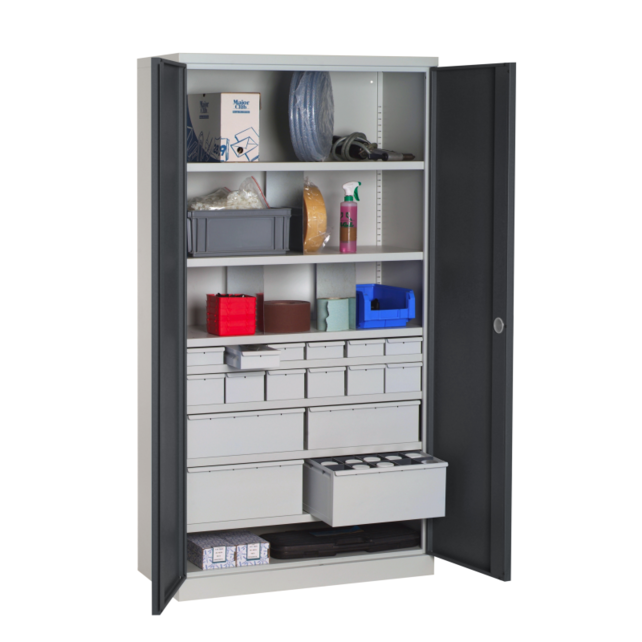

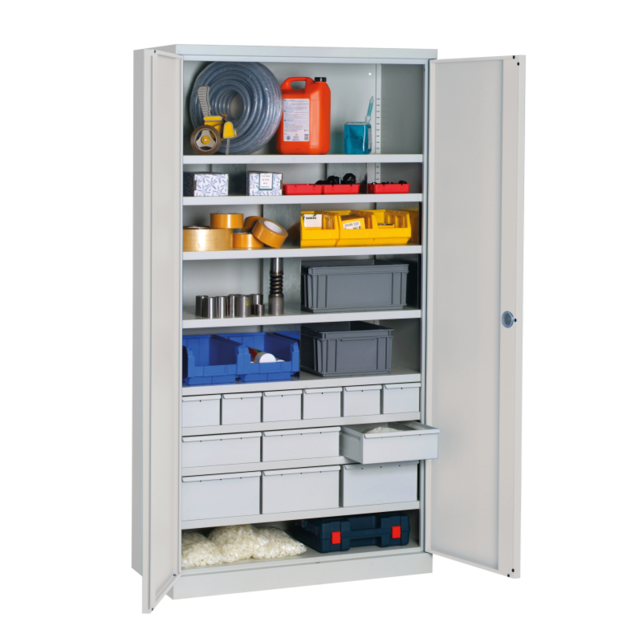

Hinged door cabinets storage cupboards for workshop Height 1950mm

Hinged door cabinets storage cupboards for workshop Height 1950 mm

The casing element of the hinged door cabinets is made of spot-welded, folded sheet steel.

They are foreseen with a welded omega-form stiffener which provides greater rigidity and conceals the closing mechanism. They are incorporated between the top and bottom strips of the cabinet casing and are mounted on concealed steel hinge pins which cannot be unhinged in the closed position for greater security.

These hinge pins enable door opening to an angle of 240°.
Closing is achieved with a built-in, 2-point handle/lock system.

The shelves are made of thick folded sheet
steel. They are foreseen with a welded omega-form stiffener which provides greater rigidity and allow a evenly distributed load of 150kg per shelf. They are height adjustable in step of 25mm and secured with galvanized steel latches. The shelves are perforated every 150mm in order to incorporate vertical dividers with a depth of 500mm.

The useful dimensions of the shelves are: W996 x D440 or 590mm.

It is possible to add optional shelves of the colour RAL 7035 GC (Light Grey).

All elements are finished with epoxy powder paint, oven polymerized at 180°C.

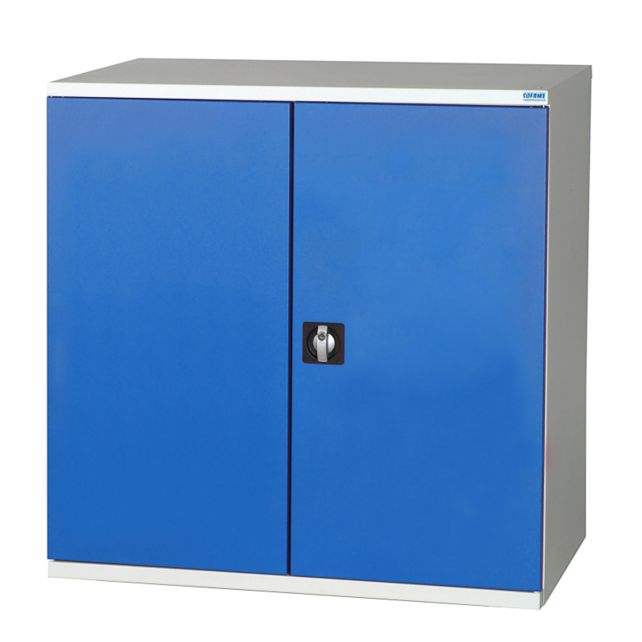

Hinge door cabinets are available in 2 heights: 1000mm (2 shelves) and 1950mm (4 shelves); 2 depths 500mm and 665mm. The entire 1000mm width of the cabinet may be used. The depth of 665mm offers sufficient
useful volume to receive Europe containers 600x400 placed longitudinally.

Attention: The short cabinets are not stackable!

Compliant with standard NF D65 763
