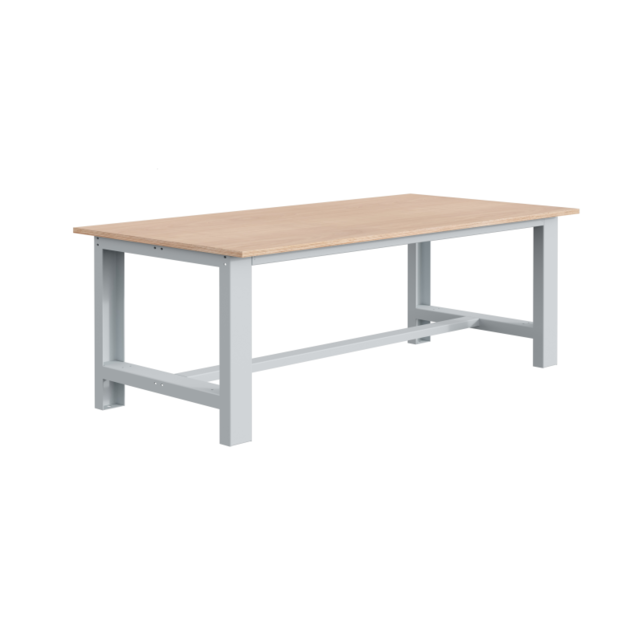

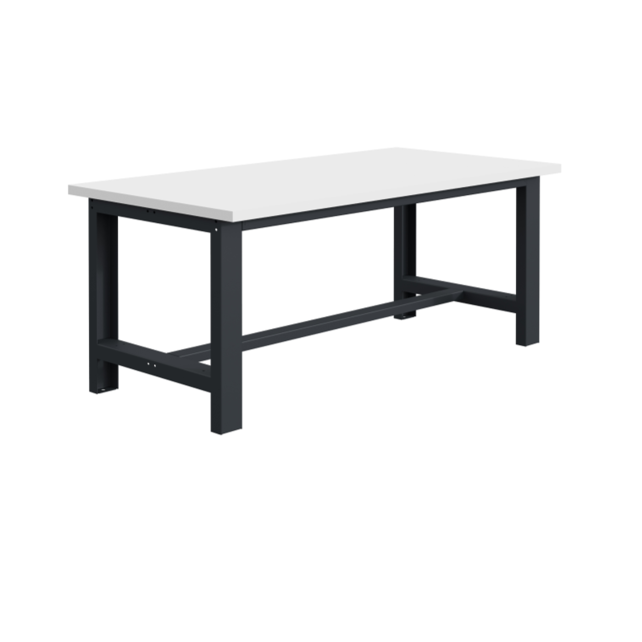

Large Workbench 2400mm Heavy duty Worktable Load 1500Kg

Large Workbench 2400mm Heavy duty Worktable Load 1500Kg

Features:

• Available depth: 750mm, 1000mm

• Fixed Height Load capacity 1500Kg

• Adjustable Height Load capacity 1000Kg

• 8 different type of Worktops including ESD

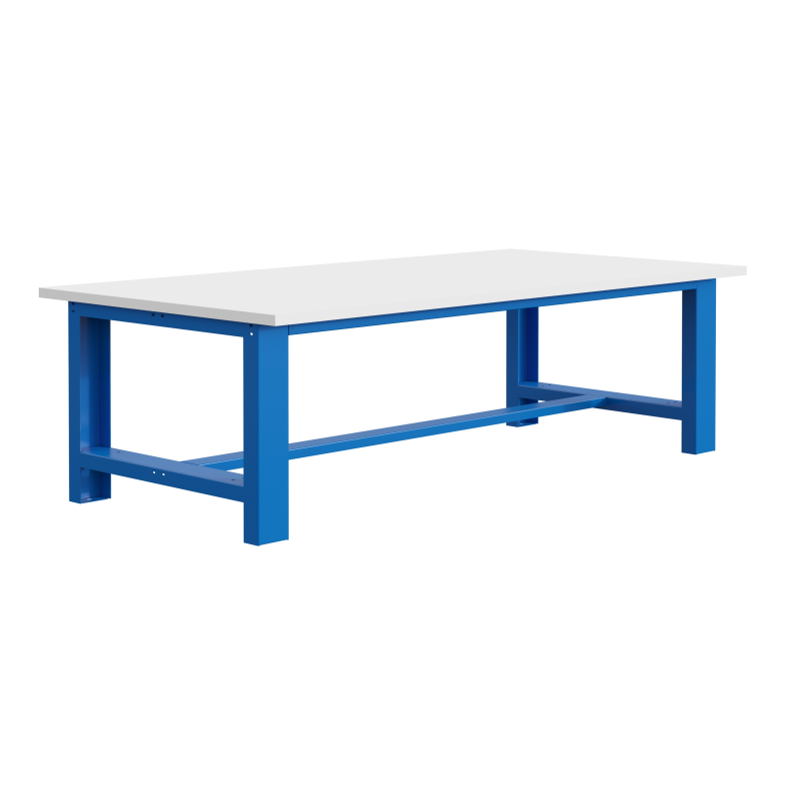

• Frame color of choice

• Wide range of accessories

• Made in France

• 5 years warranty

CHARACTERISTICS OF THE METAL STRUCTURE

The frame is made of folded sheet steel, thickness 25/10th. The legs or ladders are made of welded U-shape folded sheet
steel, cross-section 42x80x42mm for the versions SI fixed height, SI mechanical height adjustment and SI hand crank height adjustment,
and cross-section 62x87x62 mm for the electrical height adjustment version.
The horizontal cross members are made of folded steel in U-shape, cross-section 40x60x40mm for the versions SI fixed height, SI
mechanical height adjustment and SI hand crank height adjustment, and cross-section 40x50x40 mm for the electrical height adjustment
version. The structure is finished with a fine-textured structured epoxy powder paint, oven-polymerised at 180°C.

The product is designed in such a way that no screws or bolts are visible after assembly of metal elements, thus providing greater
protection of users against possible injury. The SI frame may be anchored to the floor (except for the electrical SI version) thanks to
the perforated base plate incorporated at the bottom of the foot.
This plate helps prevent indentation on the floor surface. On the fixed version, one or both ladders may be replaced by a
drawer cabinet which supports the worktop as well as the upper and lower cross-members. This drawer cabinet has an overall width of
430mm and overall depth of 600mm.
The mechanically height-adjustable version of SI workbench has two horizontal in-depth 750mm, and three in-depth 1000mm crossmembers.
The worktop is supported by two side members in U-shape with a 50x80x40mm cross section. This model is height-adjustable at
a pitch of 40mm and tightened by screw and bolt. Frame adjustment travel ranges from 740 to 1020mm, excluding worktop thickness.

EQUIPMENT

The workbench can be complemented by either a lower shelf extending over the entire depth or a half lower shelf covering half
the depth. These shelves are made of galvanised metal and can be placed in the lower section, resting on both the legs or scales and the
horizontal crossmember. Drawer cabinets may be mounted under the frame of the SI workbench, as well as a keyboard stand or CPU stand

An optional metal plate allows for lateral linking of two workbenches, either face-to-face or perpendicularly (for fixed SI only)

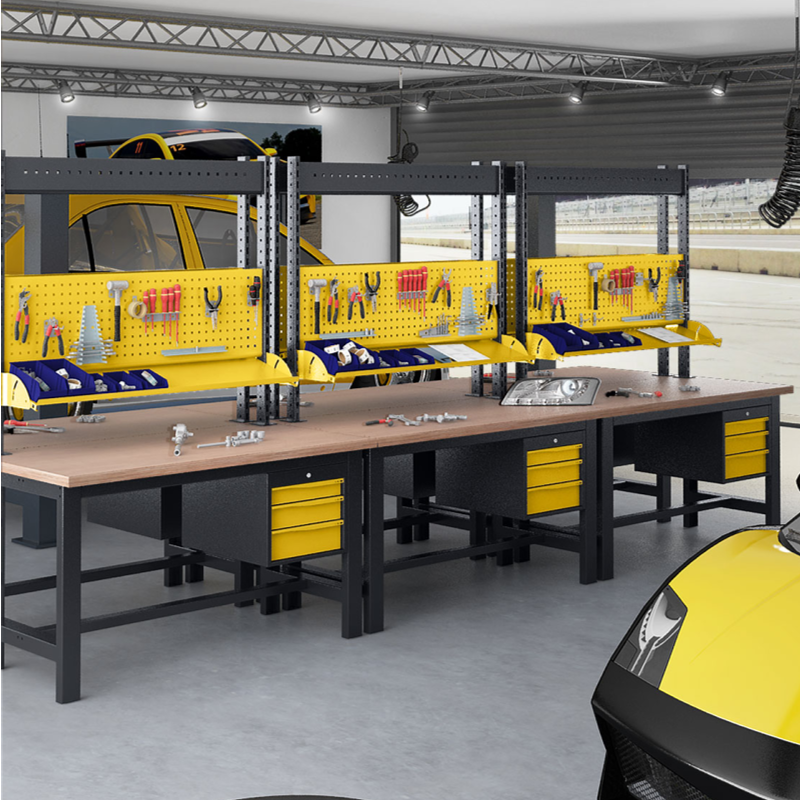

The worktop can be equipped, in upper section, with uprights to accommodate a range of equipment (shelves, rails, lighting support,
perforated panels, various supports and reels, etc.) so that users can benefit from easy access to work tools in ideal ergonomic conditions.
The base can be equipped with height-adjustment jacks (with a 30mm stroke, ranging from 825mm to 855mm for the fixed structure
without a worktop) or with a set of four swivel castors, each with a diameter of 100mm, with two of them featuring brakes.

Certification

The fixed and electrical SI workbenches are certified NF Environment standard and NF Technical Furniture standard.
The certified permissible load for the fixed SI is 1,500kg, 1,000kg for the mechanical height adjustment SI, and 300kg for the crank-operated
and electric (dynamic load) models.
Worktops are PEFC certified.

DIMENSIONS OF TABLES:

• Width: 75 cm

• Lengths: 75, 100, 120, 150, 180, 200 and 240 cm

• Height: 82.8 to 84 cm depending on the table top

Available on request

• Width: 100 cm

• Lengths: 75, 100, 120, 150, 180, 200 and 240 cm

• Height: 82.8 to 84 cm depending on the table top

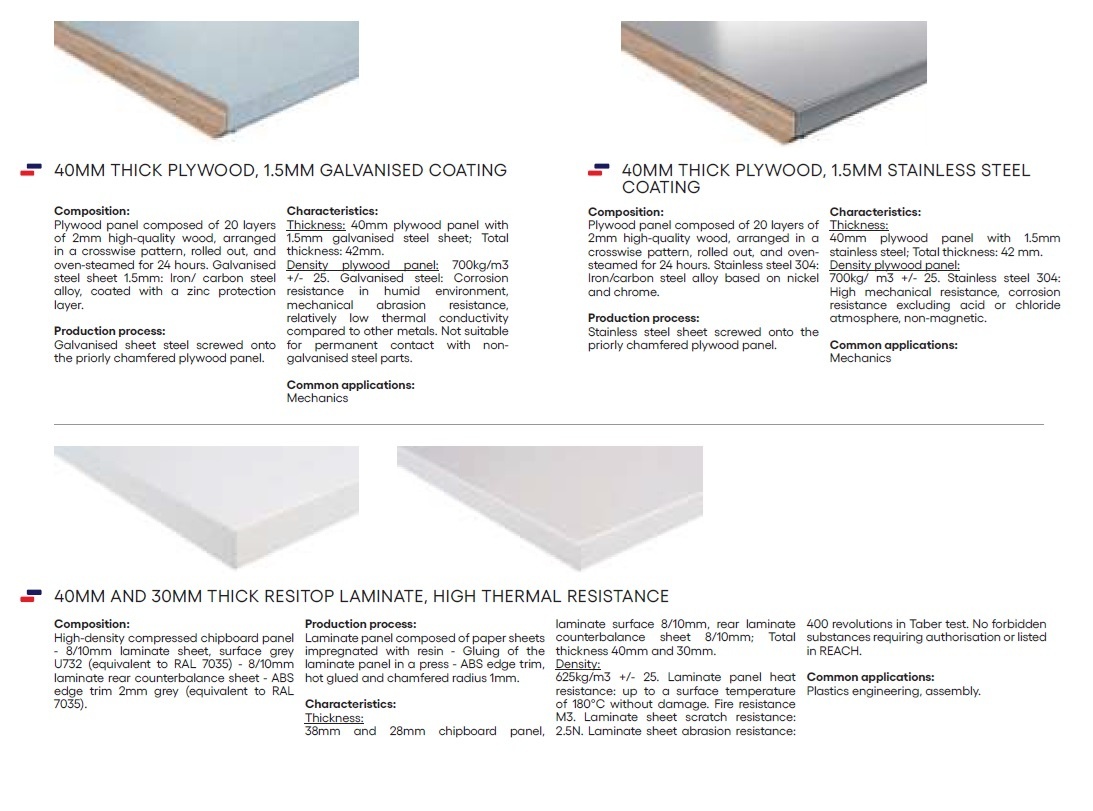

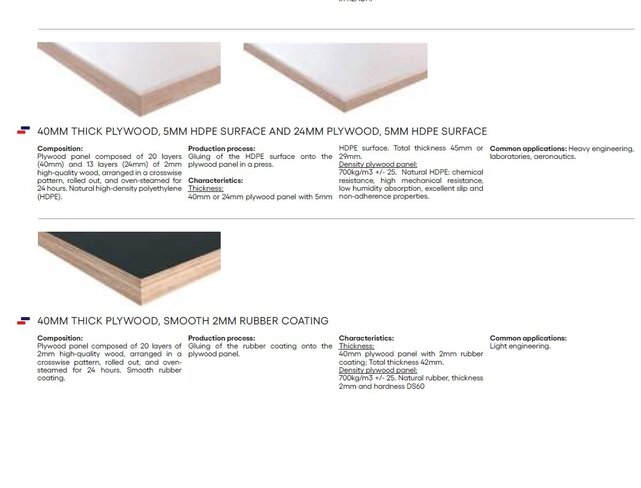

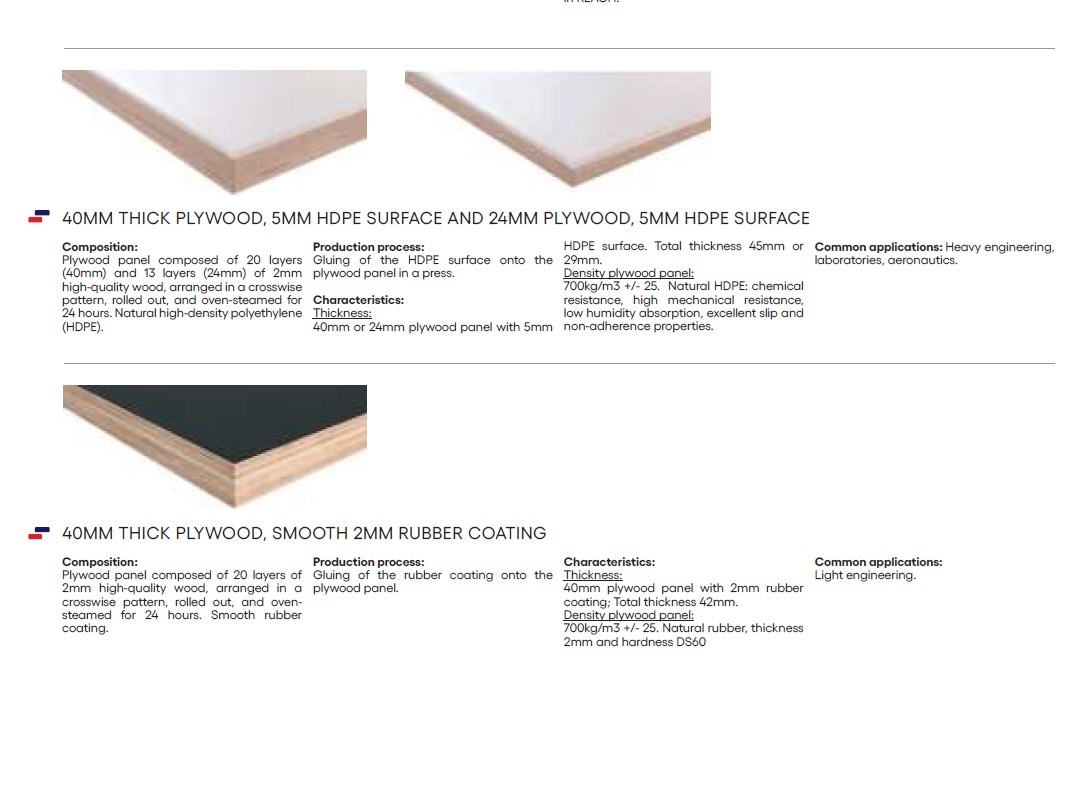

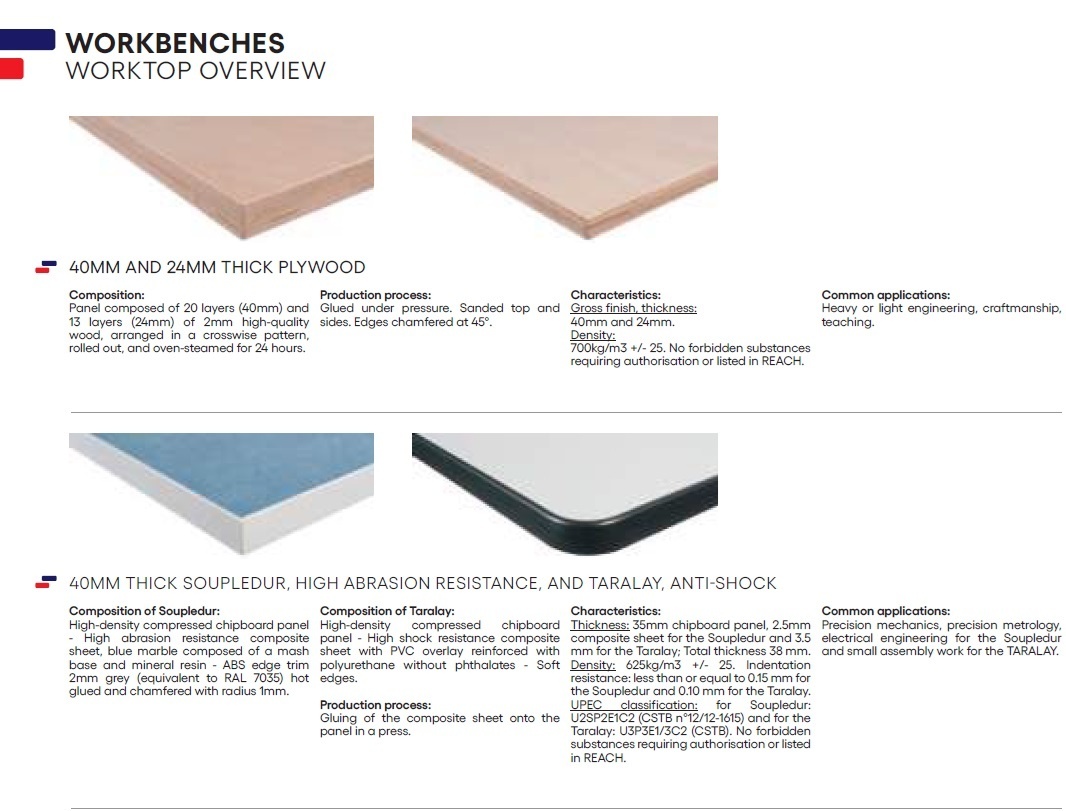

POSSIBLE TABLE TOPS:

• MULTIPLEX in thickness 40 mm and 24 mm (RAL7035)

Common Uses: Heavy or Light Mechanics, Crafts, Education, Electromechanics, Packaging.

• RESITOP laminate 40 mm and 30 mm thick (RAL7035)

With high thermal resistance, heat resistant up to 180 ° C, fire resistant, scratch resistant

Common applications: plastic, mounting

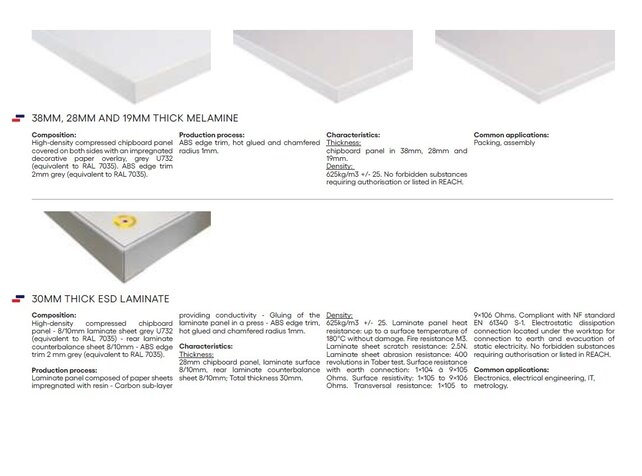

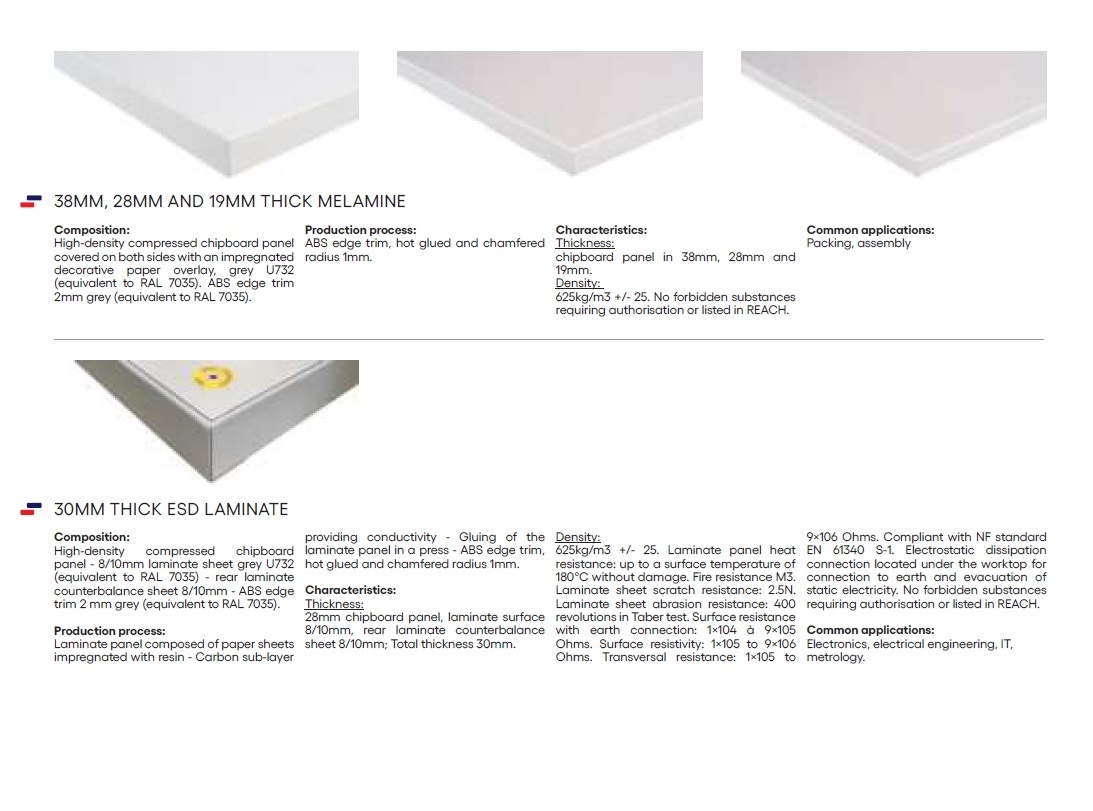

• MELAMINE 38 mm, 28 mm and 19 mm thick

Hygienic, color and wear resistance.

Common applications: packaging, assembly, catering (indoor use)

• ESD ANTISTATIC laminate 30 mm thick

Heat resistant up to 180 ° C, scratch resistant, wear resistant, fire resistance

Surface resistance with grounding: 1 × 104 to 9 × 105 Ohm Surface resistance: 1 × 105 to 9 × 106 Ohm / Cross-sectional resistance: 1 × 105 to 9 × 106 Ohm / Meets NF standard

EN 61340 S-1 / Electrostatic connection is located underneath the earth basin to dissipate static electricity

Common applications: Electronics, electromechanics, IT, metrology

EXTRA OPTIONS:

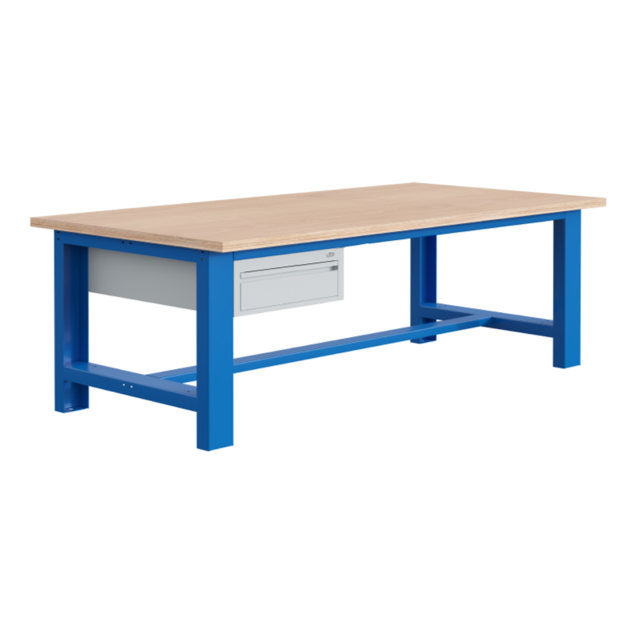

Chest of drawers with 1,2 and3 drawers (RAL7035). Easy to mount under the table.

Dimensions drawer cabinets with drawers:

• 1 drawer: 46 x 60 x 22 cm (drawer 15 cm)

• 2 drawers: 46 x 60 x 37 cm (drawer 15 cm)

• 3 drawers: 46 x 60 x 52 cm (drawer 15 cm)

The SI-model work tables or work benches can also be equipped with a galvanized shelf, which serves as an extension for storing tools, footstool, etc.

Not all dimensions, table top options and frame colors are available online. However, a lot is possible on request.
