Lifting table mobile 500Kg Scissor lift on wheels platform120x80cm Euro pallet size
Lifting table 150Kg to 1000kg Scissor lift trolley on wheels 760mm to 950mm from Salesbridges is a mobile lifting table and the ideal support when loading, filling or unloading. Materials and goods are brought to a suitable working height.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list

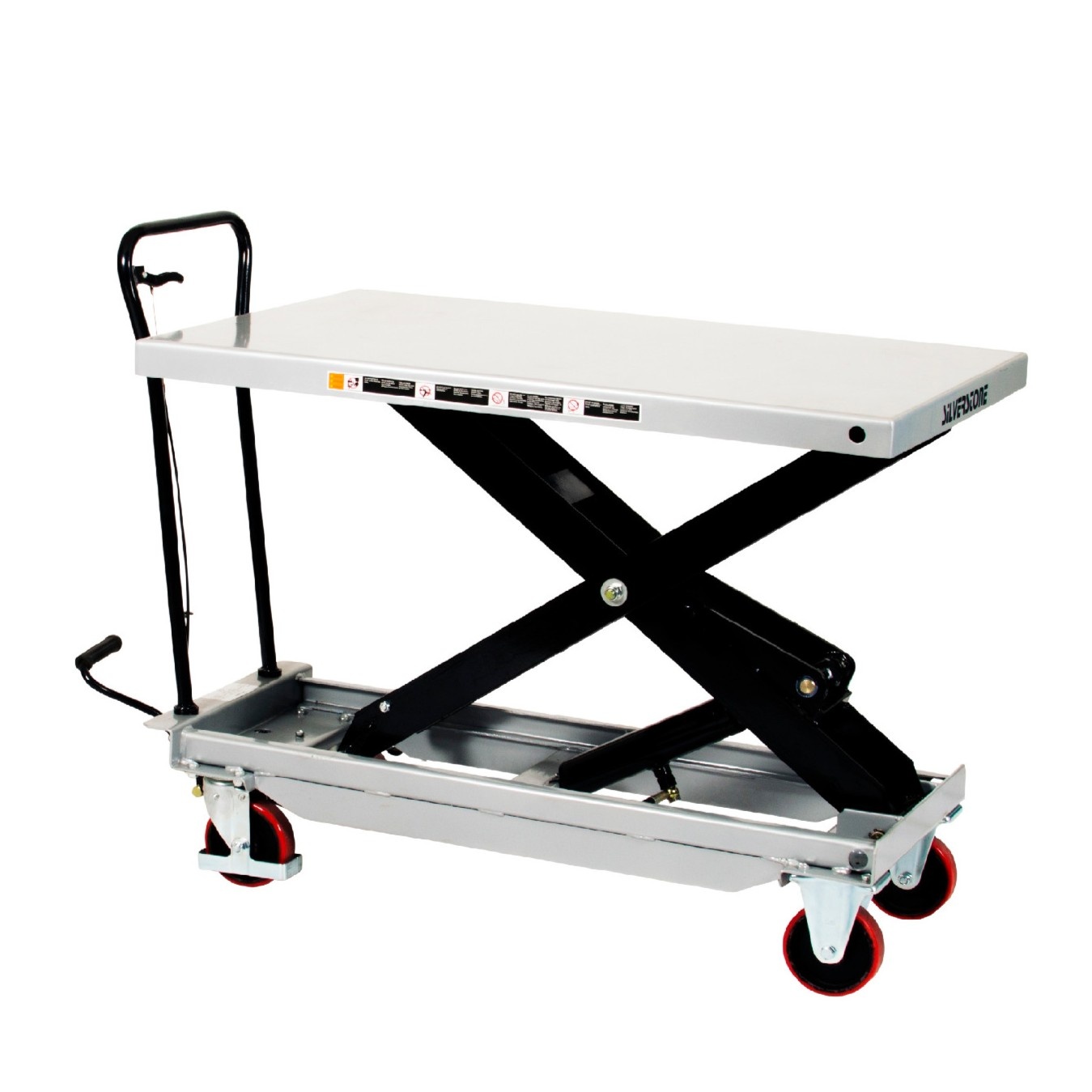

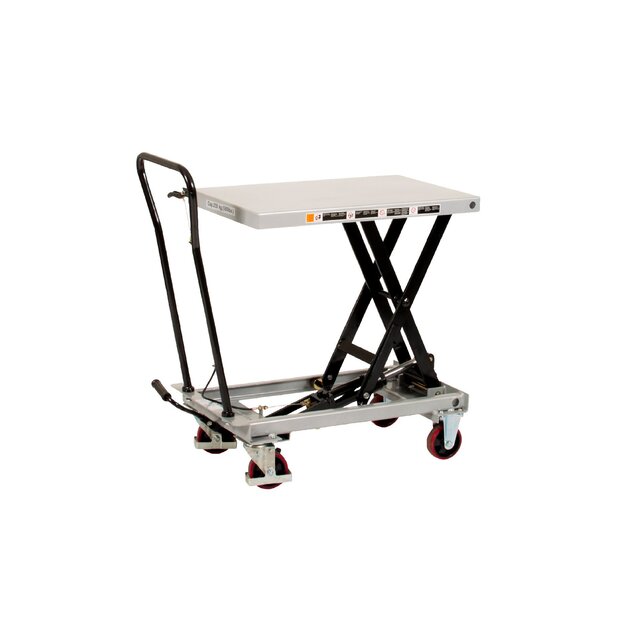

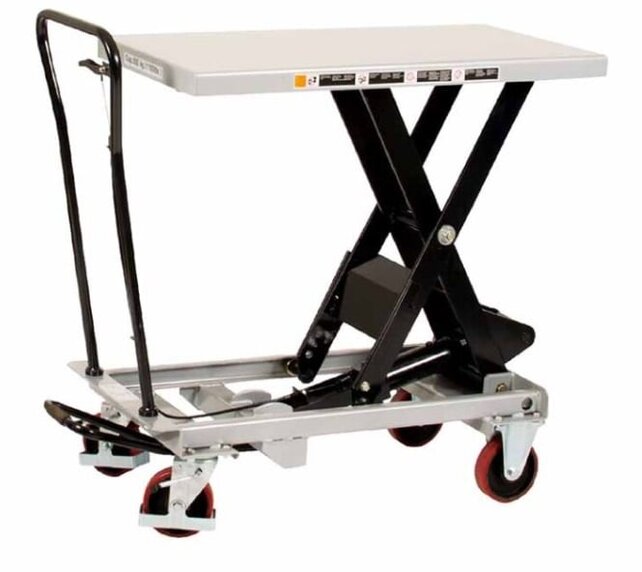

The SBHTBS scissor lift trolley - 500Kg EUR Pallet 120x80
The scissor lift table trolley SBHTBS from Salesbridges is a mobile lift table and the ideal support when loading, filling or unloading.
The load capacity is 150 kg, 250 kg, 500 kg, 1000 kg. Materials and goods are brought to an appropriate working height. Ergonomics at the workplace are significantly increased. A high-quality workmanship and the built-in quality components are also convincing across the board. The powder-coated frame easily withstands the daily work in the warehouse and in the factory. Premature corrosion is prevented thanks to the high-quality powder coating. All scissor lift trolleys can be lifted easily and effortlessly using their foot pedal. Lowering is stepless via the hand lever on the handle.
SBHTBS50LB | EUR pallet

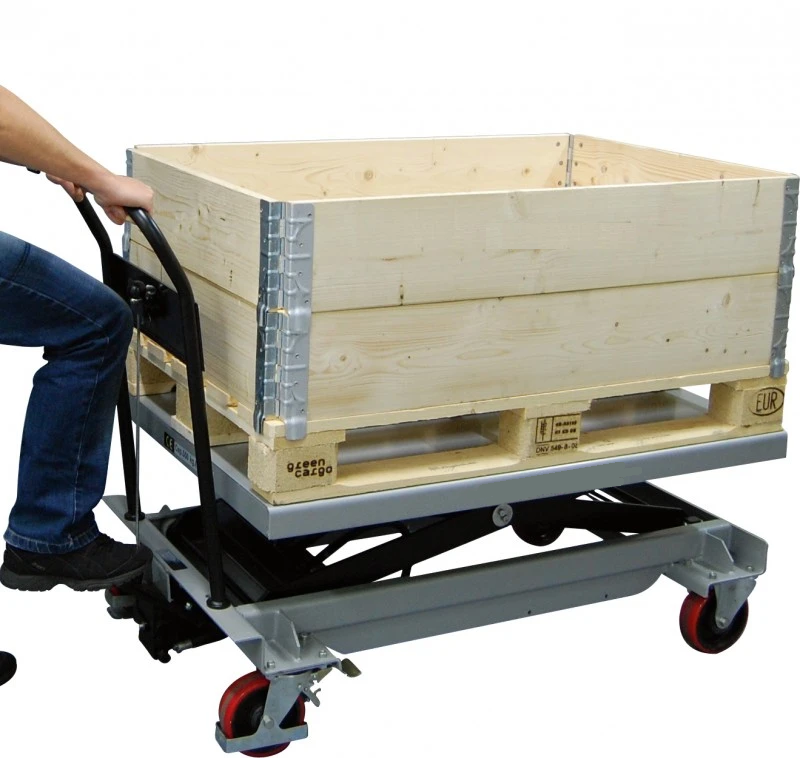

The table platform has the dimensions of a EUR pallet. The table construction is very robust, yet very easy to maneuver due to the low net weight. This table is known for its mechanical operating strength and operating reliability. manual lifting by foot pump and lowering by handle. Simple and reliable design ensures a long service life
lifetime.
• MOBILT, MANUAL LIFT TABLE - SINGLE SCISSOR
- Platform size 1200x800mm
- Capacity: 500Kg
- Maximum height: 1190 mm
- Min. Height: 370mm
- Handle height: 1030 mm
- Weight: 160 kg
- Outside dimensions: (LxW) 1390x800mm
Other models
| Technische specificaties | SBHTBS15 | SBHTBS25 | SBHTBS50 | SBHTBS100 |
|---|---|---|---|---|
| Load capacity (kg) | 150 | 250 | 500 | 1000 |
| Stroke range (mm) | 255-760 | 330-910 | 430-1000 | 445-950 |
| Stroke (mm) | 505 | 580 | 570 | 505 |
| No. of strokes max Height | 16 | 25 | 44 | 68 |
| Platform size (LxW) (mm) | 700x450 | 830x500 | 1010x520 | 1010x520 |
| total length (mm) | 950 | 1010 | 1185 | 1260 |
| overall width (mm) | 450 | 500 | 520 | 520 |
| service | hand | hand | hand | hand |
| Handle height (mm) | 1000 | 1100 | 1130 | 1130 |
| lowered height (mm) | 255 | 330 | 430 | 445 |
| tires | polyurethaan | polyurethaan | polyurethaan | polyurethaan |
| Own weight (kg) | 41 | 78 | 118 | 197 |
Make a choice: * to select the right model with the corresponding price
Scissor lift trolley with foldable handle
The SBHTSP150 model is equipped with a foldable handle. This makes the scissor lift table trolley a real space-saving miracle. When folded, the scissor lift truck has a height of around 350 mm. With these dimensions, it can easily be placed under a workbench, for example.
Robust helper in the warehouse
A robust steel frame construction and a high quality powder coating are just two features of the SBHTSP. The scissor lift table also impresses with its high-quality workmanship and its built-in quality components.
casters and brakes
Polyurethane rollers ensure particularly smooth running on level surfaces. They are abrasion-resistant and also have excellent traction. The two parking brakes on the castors fix the SBHTSP scissor lift table trolley and give it a firm and secure footing. The devices are lifted effortlessly using the foot pedal. The scissor lift table trolleys can be lowered steplessly using the hand lever.
Make a choice: * to select the right model with the corresponding price
| Brand | Salesbridges |
| Article code | SBHTBS50LB |
| SKU | H:1190mm - 120x80mm |
| EAN | 9503787984583 |
