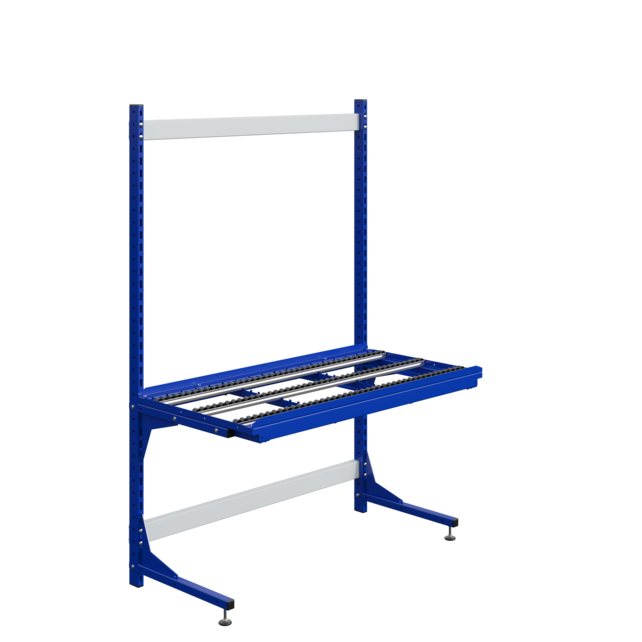

Production line workstation conveyor roller track working table 150kg

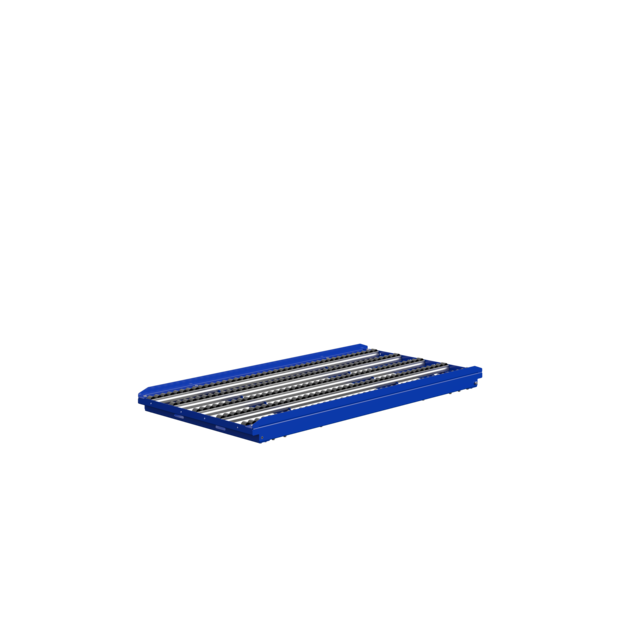

CONVEYOR GRAVITY ROLLER AND ROLLER TRACK TOPS

The top structure is constructed with 25/10th sheet steel for the frame and 20/10th for the edges and rail guide combs, which are completely removable and assembled using screws, nuts, and 4 ladder/top junction plates made of 25/10th sheet steel.
The tops can be fitted with either galvanized steel rollers with a diameter of 30mm or three roller track rails with a diameter of 30mm.
Roller track rails can be added to tables with a pitch of 48mm, allowing a table to accommodate up to 13 roller rails.
The tops are equipped with side edges that can be fixed either as raised or fallen edges. Additionally, optional stops can be added to the tables at the end of the line.
Each top is equipped with two supports for fixation between two PROD’LINE workstations.
Load capacity per top: 150kg.

Width: 920mm or 1360mm

Depth: 695mm

Height: 1950

Adjustable height for the roller table 50mm incrementation

Weight capacity: 150Kg

The conveyor tables consist of two entirely removable legs or ladders made of 20/10th sheet steel, assembled with screws and nuts, and a lower cross-member in 25/10th sheet steel, fixed with screws and nuts
onto the ladders.
These tables are furnished with gravity roller tops or with roller track tops (see characteristics below). They are mechanically adjustable in height from 700 to 900mm, with the tabletop capable of inclining up to 5°.
As standard, tables are equipped with a jack kit to adjust the height according to the workstation’s height.
Two connecting parts are provided with each table for assembling multiple tables together or attaching a table to the ball transfer table.
Conveyor tables can be fitted with 100mm diameter castors featuring rubber tyres, two of which have brakes.
Load capacity per table: 150kg.
The conveyor tables can be positioned laterally in line with workstations.
Upon request, tables can be outfitted with one or two lower shelves

Origin: Made in France

Warranty: 5 years

In compliance with standard XPD 65762

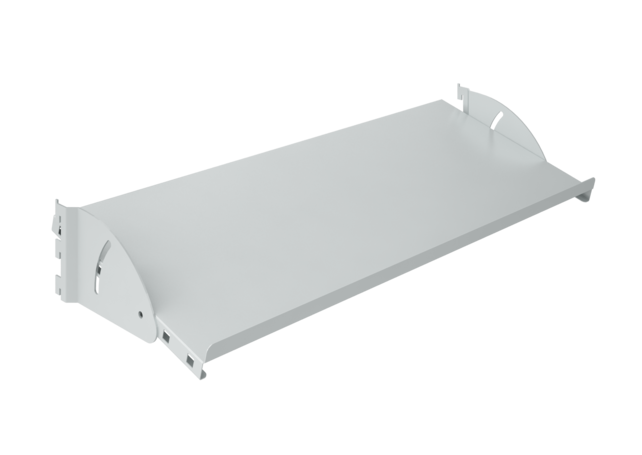

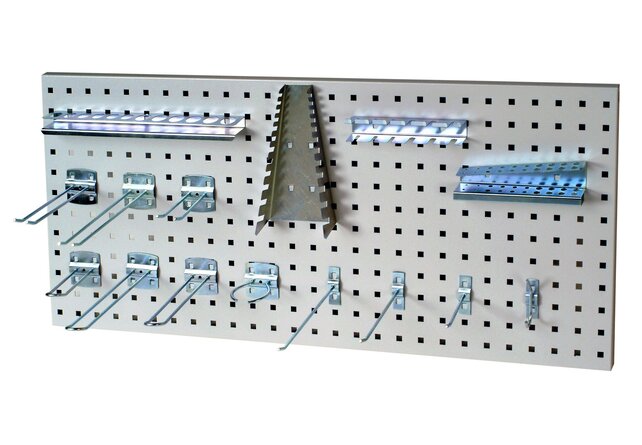

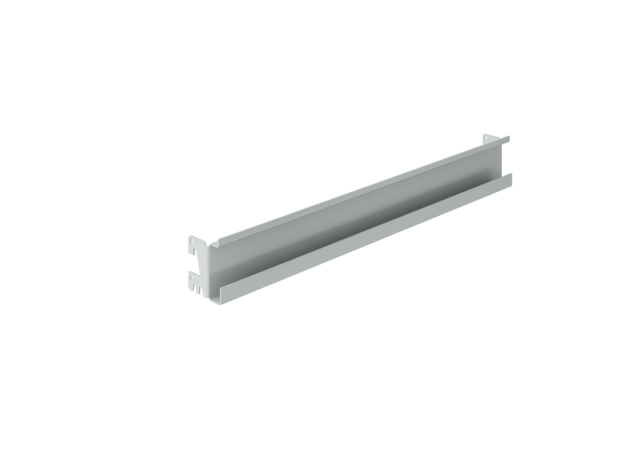

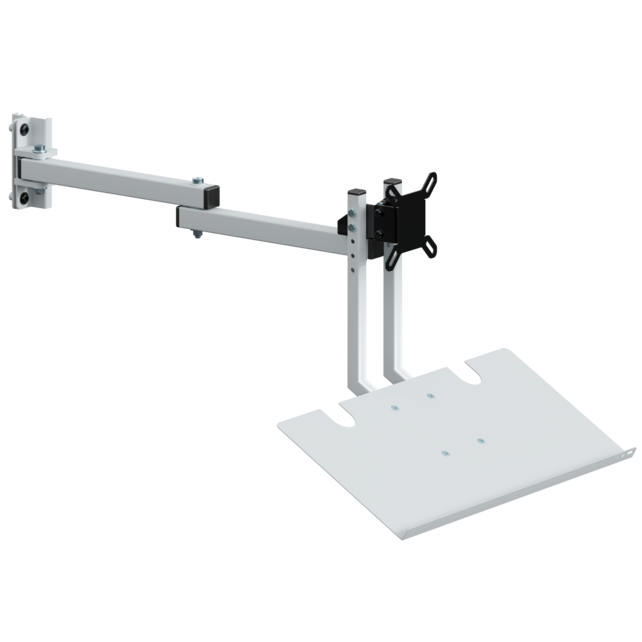

Wide range of optional accessories that can be considered to complete your purchase

Made in France
