Production line workstation conveyor roller workbench 150 kg

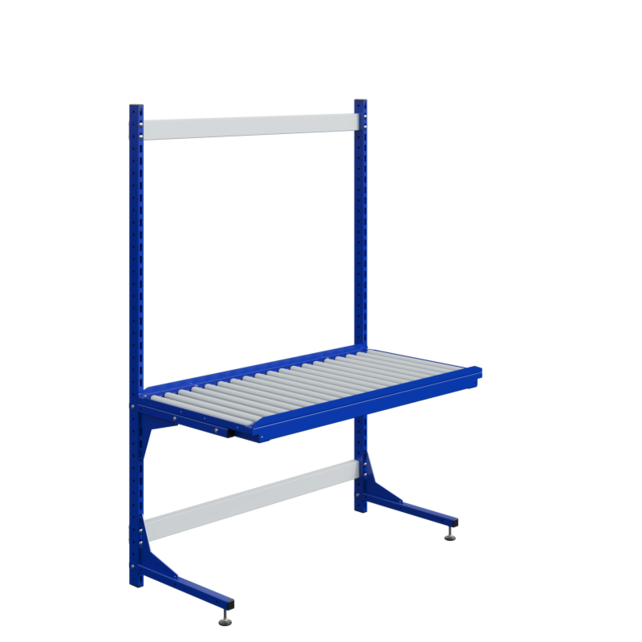

CHARACTERISTICS OF THE WORKSTATION with conveyor table

The conveyor tables consist of two entirely removable legs or ladders made of 20/10th sheet steel, assembled with screws and nuts, and a lower cross-member in 25/10th sheet steel, fixed with screws and nuts
onto the ladders.

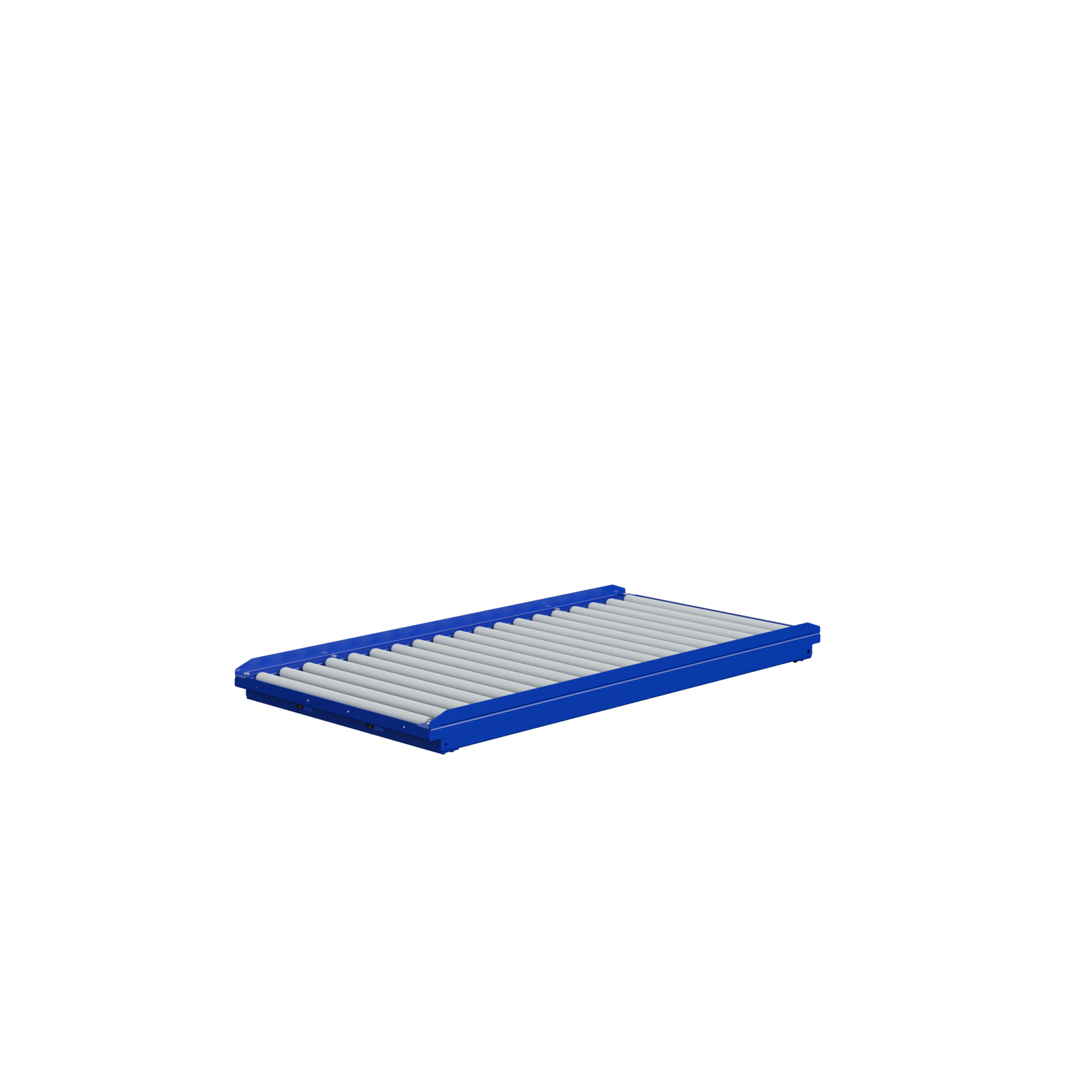

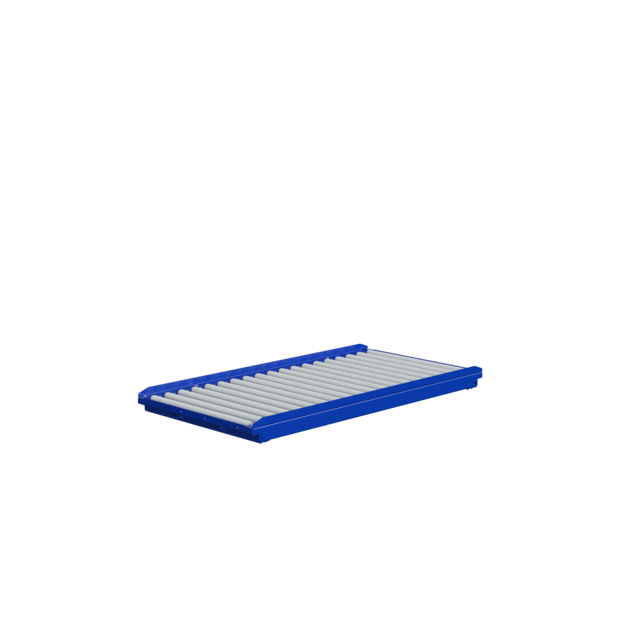

These tables are furnished with gravity roller tops or with roller track tops (see characteristics below). They are mechanically adjustable in height from 700 to 900mm, with the tabletop capable of inclining
up to 5°.
As standard, tables are equipped with a jack kit to adjust the height according to the workstation’s height. Two connecting parts are provided with each table for assembling multiple tables together or attaching a table to the ball transfer table.
Conveyor tables can be fitted with 100mm diameter castors featuring rubber tyres, two of which have brakes. Load capacity per table: 150kg.
The conveyor tables can be positioned laterally in line with workstations.

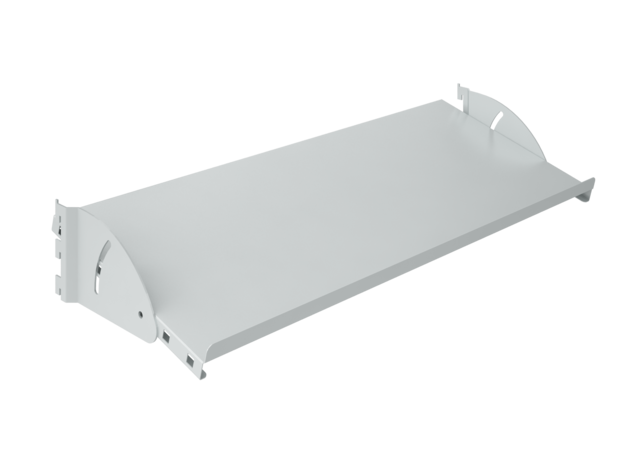

Upon request, tables can be outfitted with one or two lower shelves.

Width: 920mm or 1360mm

Depth: 695mm

Height: 1950

Adjustable height for the roller table 50mm incrementation

Weight capacity: 150Kg

Origin: Made in France

Warranty: 5 years

In compliance with standard XPD 65762

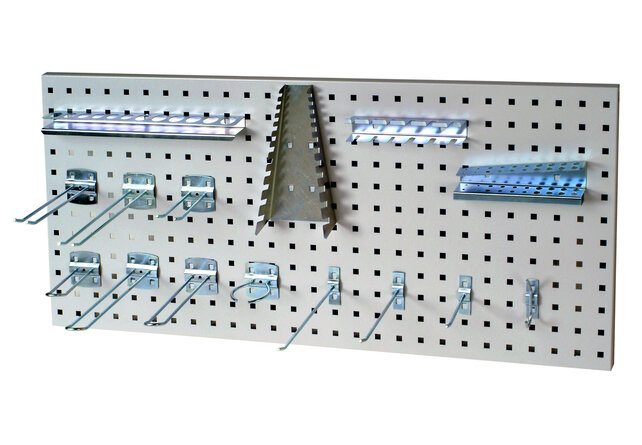

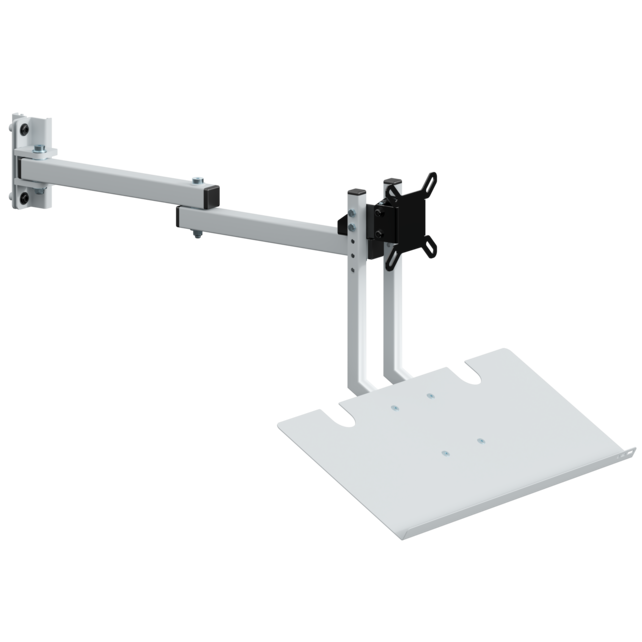

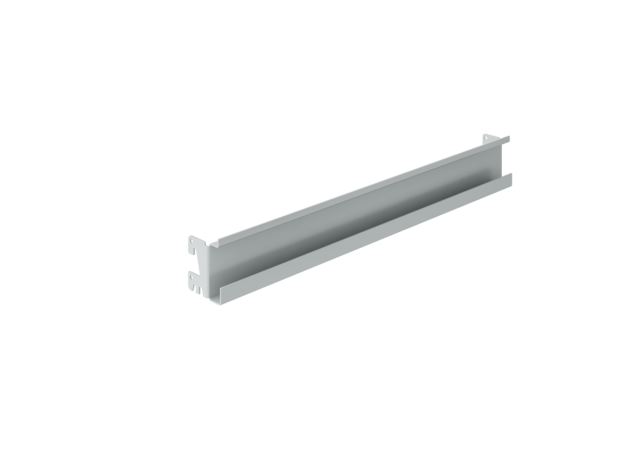

Wide range of optional accessories that can be considered to complete your purchase

Made in France
