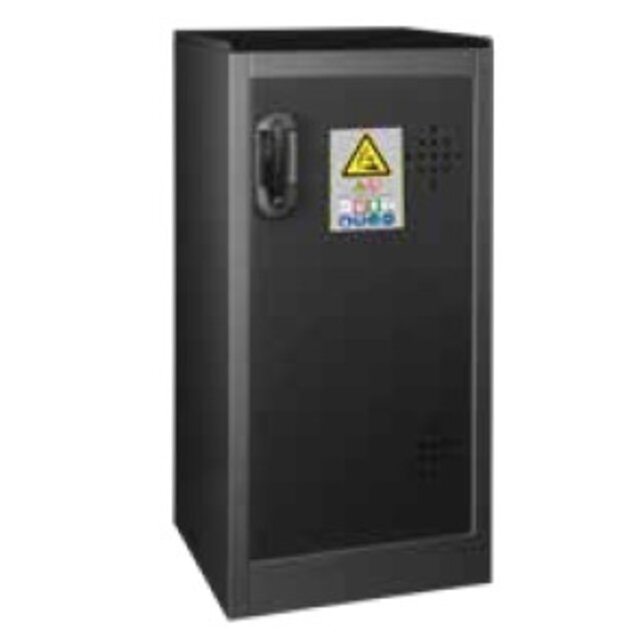

Safety cabinet for storage and charging Lithium-Ion Batteries-1000 x 500 x 500-1 Door

SAFETY CABINETS FOR STORAGE AND CHARGING OF LITHIUM-ION BATTERIES-1000 x 500 x 500

For storing and charging your Li-ion batteries safely and in compliance with legislation

ACTIVE SAFETY

• Top and bottom ventilation holes on each door.
• Hinged door(s) with 110° opening angle.
• 3-point lock and key.
• Drilling for connection to a forced ventilation system. (ref.
AZVENT), supplied with a Ø 100 mm sleeve (included).

COMPLIANCE

• REGULATION - EU -2023/1542 - Article 42 - 4. Storage or transport conditions ensure the conformity of batteries.
• Complies with recommendation for risk prevention and safety: allows batteries to be stored in a dedicated area.
• Standardised pictograms in accordance with ISO 3864-1 and ISO 7010 standards, and with the European directive 92/58/EEC.

FEATURE

• Cost-effective solution for storing and charging your Li-ion batteries safely and in compliance with legislation.
• Standardised pictogram for the storage of Li-ion batteries.
• Work surface of the countertop cabinets covered by a rubber mat.

DESCRIPTION

External dimensions H x W x D (mm)  1000 x 500 x 500

Internal dimensions H x W x D (mm) 890 x 498 x 453

Load capacity per shelf (kg) 51

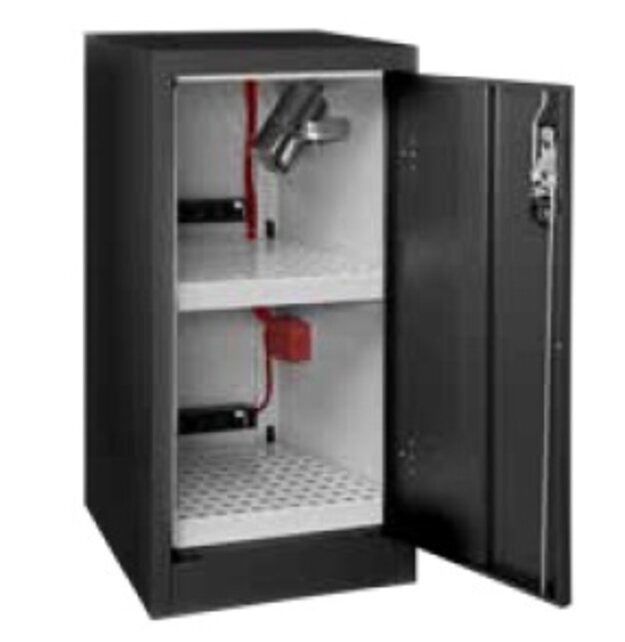

Perforated shelves 2

Weight (Kg) 26

ACCESSORIES - FILTRATION OR VENTILATION BOXES

• Opening vent forrange 14.E (Réf : AZVENT)
• perforated shelf   (Réf : C150)

DESCRIPTION ALARMWI

This Wi-Fi smoke detector alerts you if there is smoke or excessive
heat build-up. It alerts you with an audible alarm for people nearby
and an alert sent to your phone wherever you are.
• Easy to connect to your Wi-Fi, for alerts on your phone.
• Audible alarm to warn as many people as possible.
• Threshold of detection: 37 °C.
• Powered by 2x AA/LR6 battery.

OPTIONS

• Additional perforated shelf : Perforated shelf  50 x 483 x 438
• Self-activating fire extinguisher : Self-activating fire extinguisher at 79°C with special lithium bulb
• Hole for 1 cable
• Rack of electrical outlets for recharging batteries : Rack of 7 electrical outlets type G (UK)

 • Ventilation box
• Connection kit
• Connected smoke detector
• Digital code lock
