Scaffolding System
Price on request
Excl. Shipping costs
New Metal or Aluminum Modular Scaffolding Systems - Made in EU - EN1090-2, EN-ISO3834-2, ISO15613-1, ISO1514-1
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
Product description

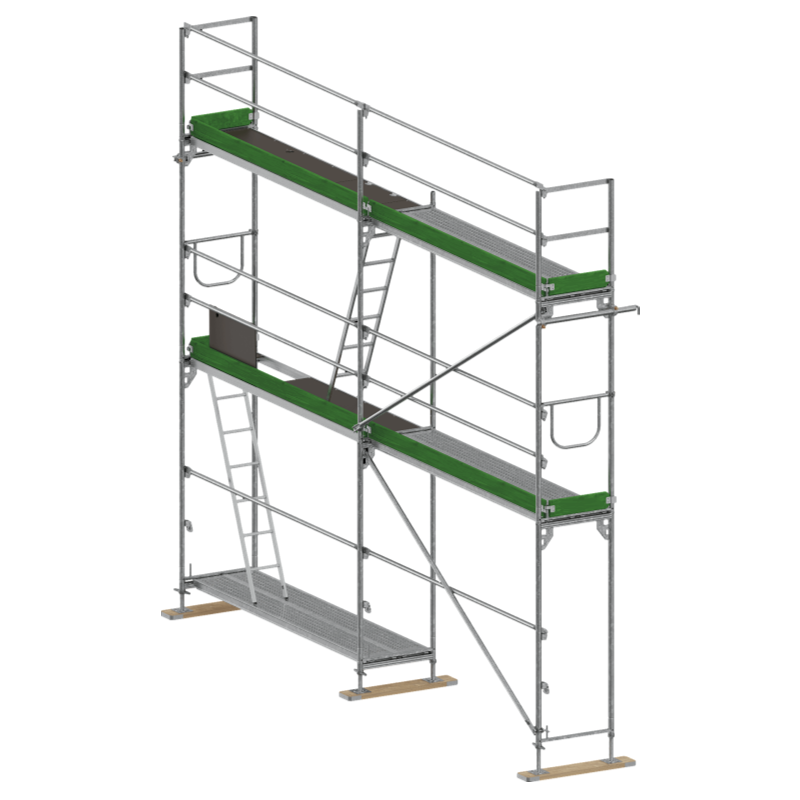

Scaffolding Systems
Our Modular scaffolding has many structures in its basic applications, such as access stairs, footbridges, mobile scaffolding, scaffolding for crane lifting, working platforms, facade scaffolding, support scaffolding, retaining (support) scaffolding, protective scaffolding, reachmaster scaffolding, stages and stands and much more.
System scaffolding, steel, which gives much more possibilities in creating the form of the scaffolding structure. They allow for the implementation of facade and free-standing structures, working platforms, structures for an advertising banner, supporting scaffoldings or communication stairs. This system allows for the implementation of much more complicated, spatial structures based on the manufacturer's DTR.
To make easier for our customer we have prepared 4 different sizes areas. Customization for project base we can always adjust the quantities and prices.
Our 3 different sizes areas we offer for the modular system are as following:
-
Area 1 (m2 ): 125
-
Area 2 (m2): 250
-
Area 3 (m2): 500
-
Area 4 (m2): 1000
*(∓ 1-2 m2)
Material list per Area size:Liste de matériel par taille de zone :
No. |
Description |
Weight (Kg) |
QTY for 125m2 |
QTY for 250m2 |
QTY for 500m2 |
QTY for 1000m2 |
1 |

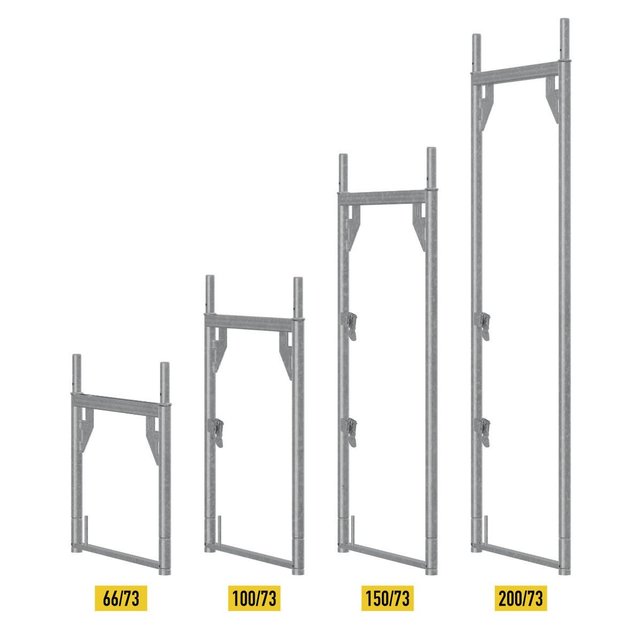

FRAME 200x73 |
18,7 |
20 |
36 |
72 |
136 |
2 |
END FRAME 73 |
8,9 |
2 |
2 |
2 |
2 |
3 |

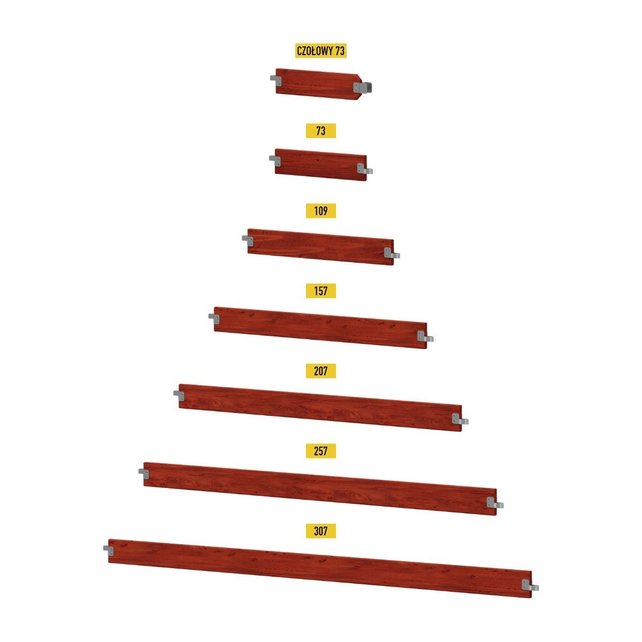

END TOE BOARD 73 |
1,3 |
8 |
8 |
8 |
8 |
4 |
GUARD RAIL POST 100 |
4,64 |
3 |
7 |
16 |
32 |
5 |
END GUARD RAIL 73 |
3,1 |
6 |
6 |
6 |
6 |
6 |

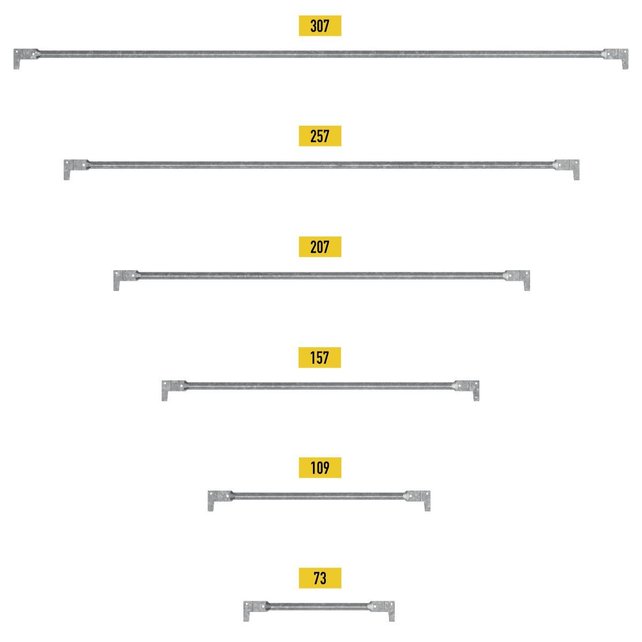

GUARD RAIL 307 |
5,5 |
36 |
72 |
153 |
297 |
7 |

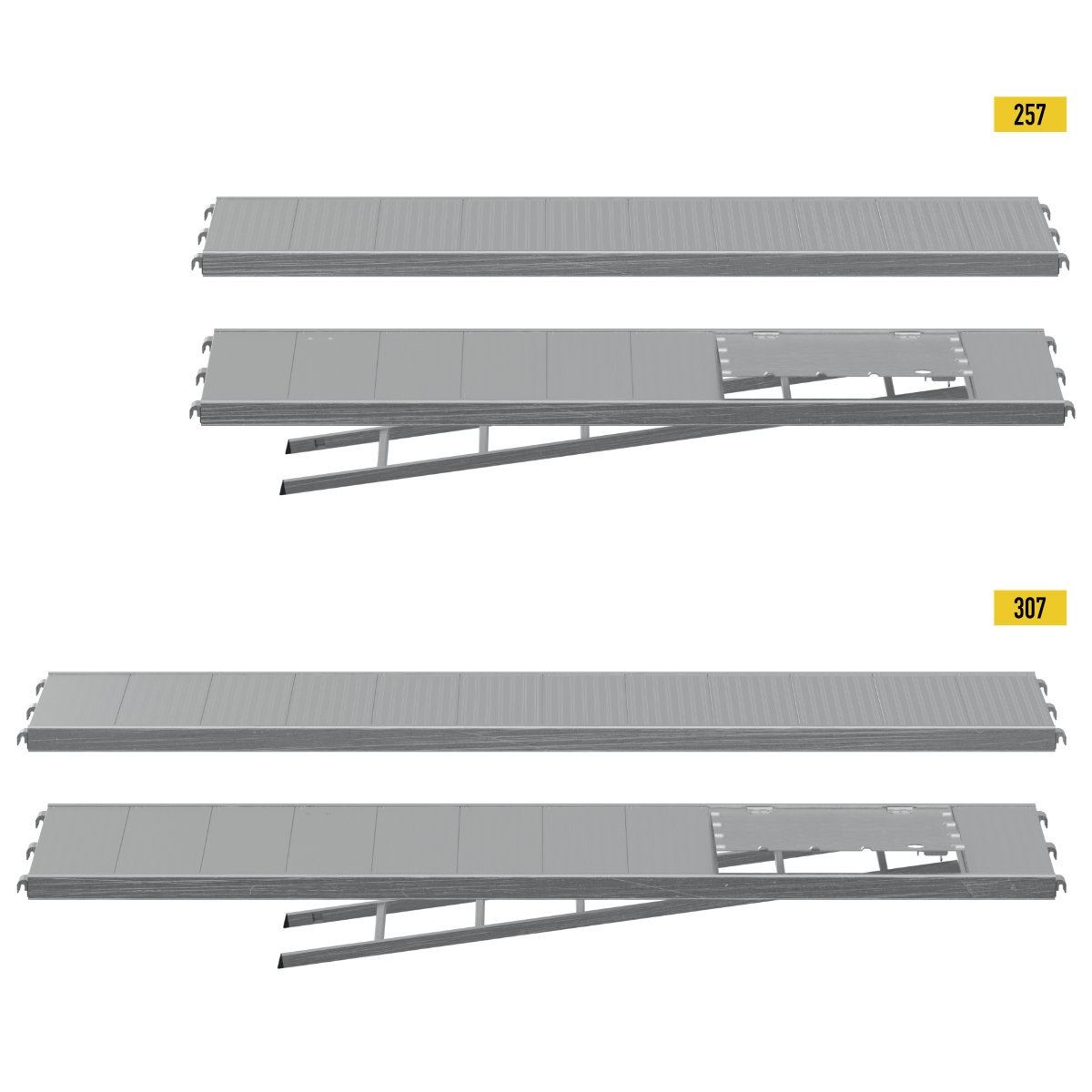

ACCESS DECK WITH LADDER ALU/PLYWOOD STANDARD 307x61 |
29,7 |
4 |
4 |
8 |
12 |
8 |

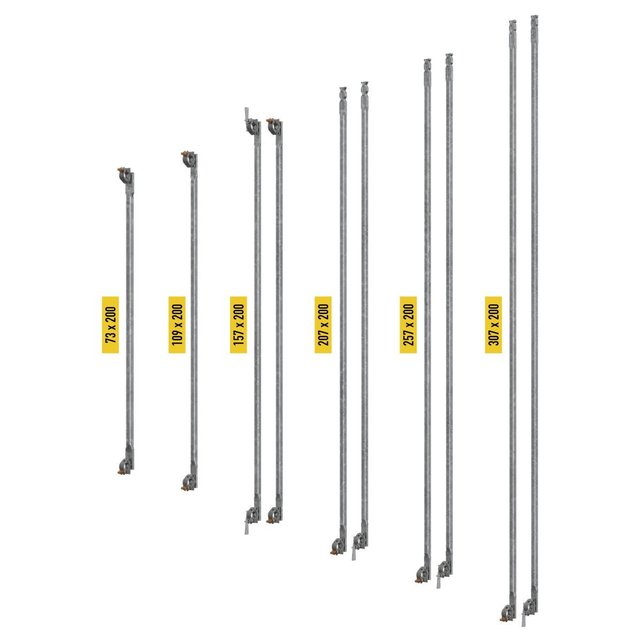

DIAGONAL BRACE 307x200 |
8,4 |
8 |
8 |
20 |
36 |
9 |
TOE BOARD 307 |
6,1 |
16 |
32 |
68 |
132 |
10 |

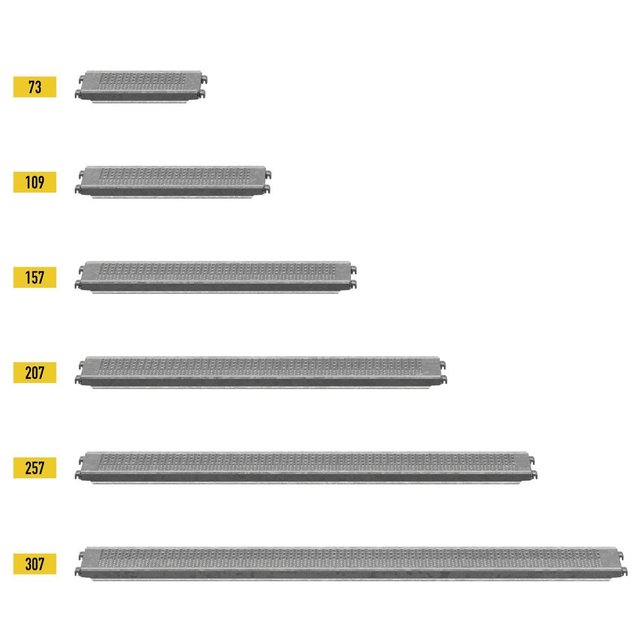

STEEL DECK ERGO 307x32 |
18,8 |
24 |
56 |
120 |
240 |
11 |

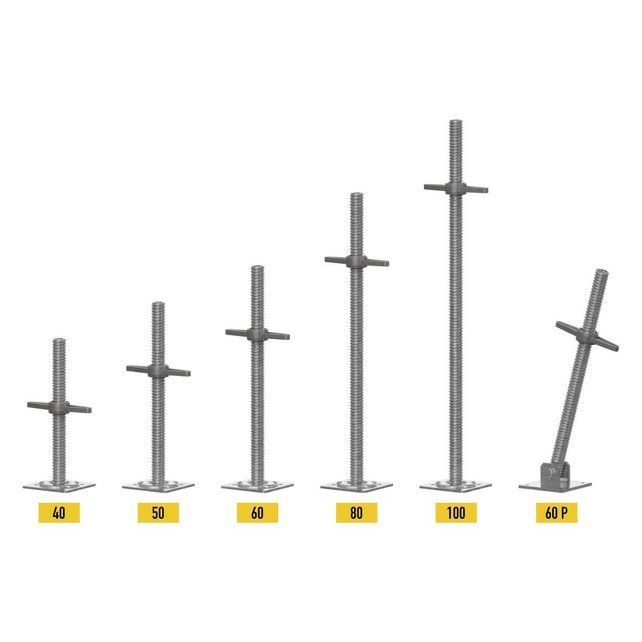

BASE JACK 600x38 ERGO |
3,3 |
10 |
18 |
36 |
68 |
12 |

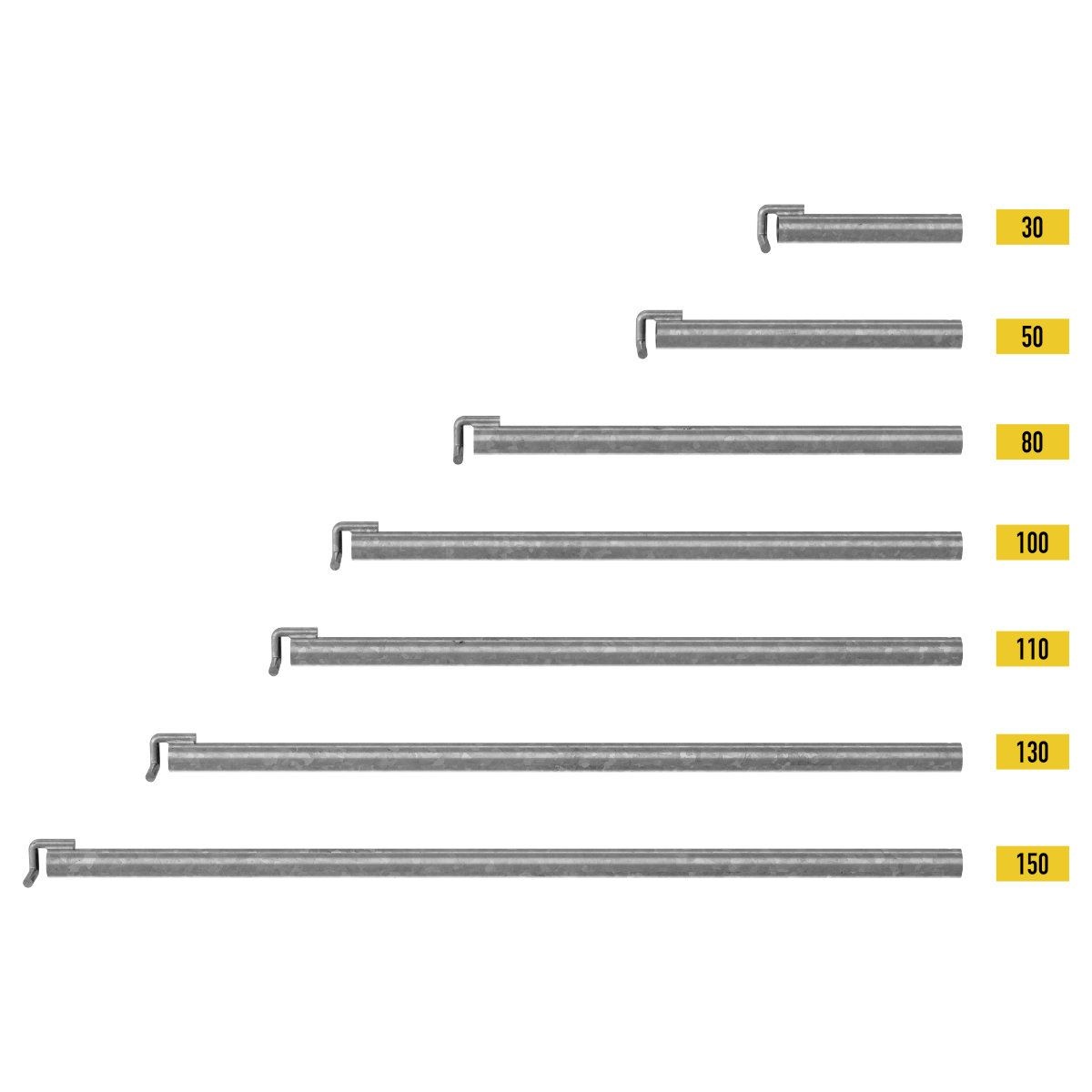

ANCHOR 50 |
1,83 |
10 |
16 |
30 |
54 |
13 |
DOUBLE COUPLER |
1,1 |
10 |
16 |
30 |
54 |
14 |

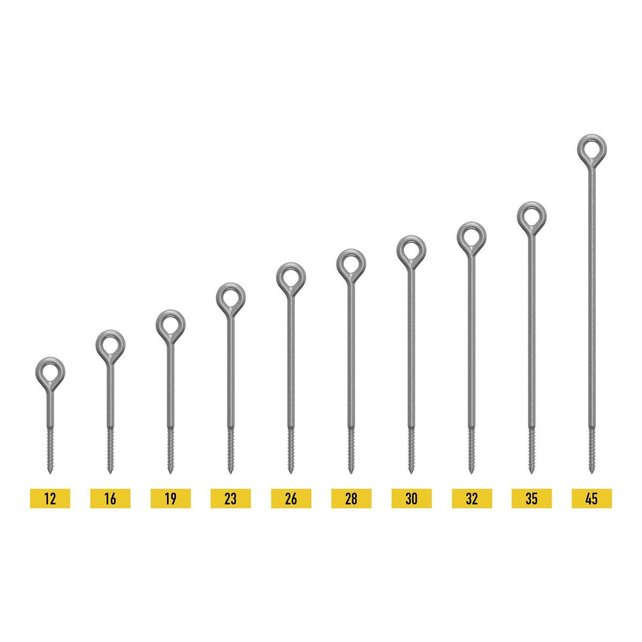

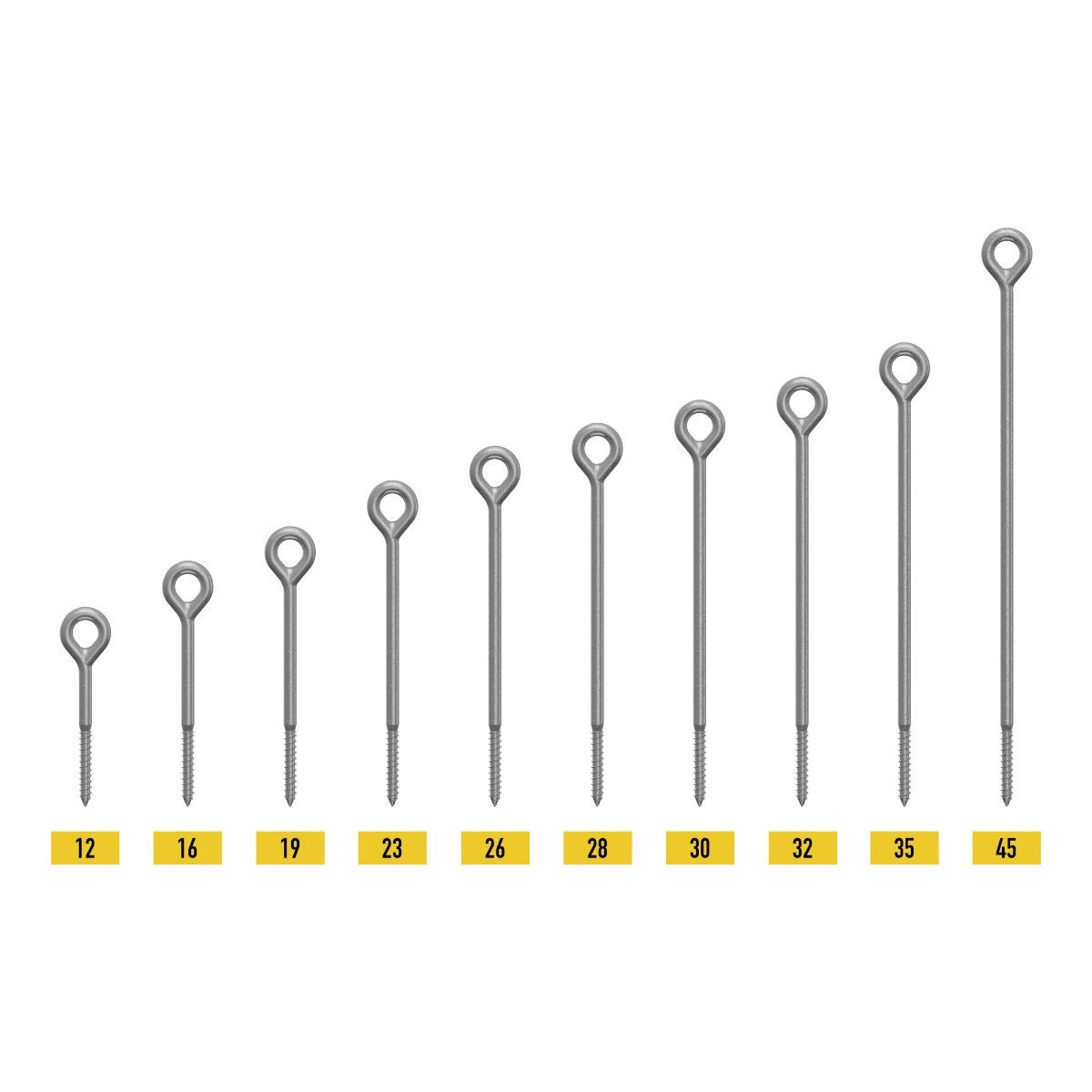

EYE SCREW 260 |
0,29 |
10 |
16 |
30 |
54 |
All the steel elements are Hot-Dip-Galvanized.
System certification:
-
EN1090-2
-
EN ISO3834-2
-
ISO15613-1
-
ISO15614-1
Made in EU
Get in touch now with our experts and receive best cost-effective advise. For more info you can write us your inquiry and we will make sure to answer you in timely manner [email protected] or dial +971543554679
Product information
| Brand | SalesBridges |
| Article code | SBSC125 |
| SKU | SBSC125 |
| EAN | 9502861175251 |
