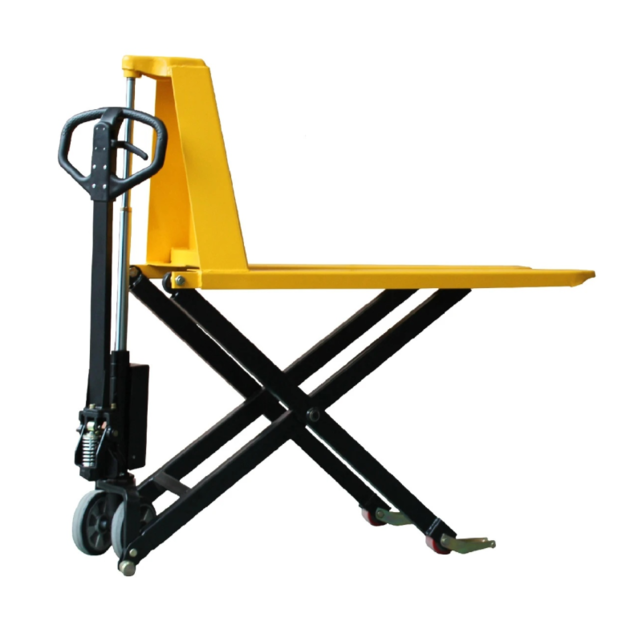

Scissor lift pallet truck with 2 lifting cylinder, 1000Kg lifting height 800 mm

Quick lift Scissor pallet truck

Scissor lift truck 1000Kg Lifting height 800mm

The SBHL1000 scissor lift truck with one-piece lifting cylinder from Salesbridges enables ergonomic working in the warehouse. Comfortable working height and load and unload pallets more ergonomically. With the SBHL1000 scissor lift truck, pallets weighing up to 1,000 kg can be transported and lifted to a lifting height of 800 mm. The practical quick lift function works with pallets up to a maximum of 250 kg. All pallets above this weight are lifted at normal lifting speed. The SBHL1000's single-stage telescopic cylinder is also extremely low-maintenance.

Basic high lifting pallet truck with telescopic 2-stage lifting cylinder.

• Capacity 1000 kg
• Fork length: 1150mm
• Quicklift
• Type Manual quick lift pump
• Fork width, total/fork (mm) 540/160
• Weight (kg) 140
• Steering wheel PU
• Lifting speed (mm/stroke) 10/25
• Lifting height 85-800 mm

Quick lift function

The SBHL1000 manual scissor lift truck offers a convenient quick lift function.  The maneuvering height is more easily reached and pallets can be moved faster. This is made possible by a one-piece piston that is easier to lift than the SBHL1000's three-piece piston. All devices are steplessly lowered using the lever on the tiller handle.

Caster equipment

Swivel and fork rollers are made of polyurethane. These PU wheels are quiet, wear-resistant and offer good grip. Unevenness in the warehouse floor is easy to drive over. Polyurethane wheels are also a good compromise between smooth running and rolling resistance. Ideal for sensitive surfaces, hard floors and loading ramps.

Can also be used as a workbench

Like the SBHL1000 can also be used as a workbench or table extension. From a lifting height of 200 mm, support bolts are extended, which give the device sufficient stability.
