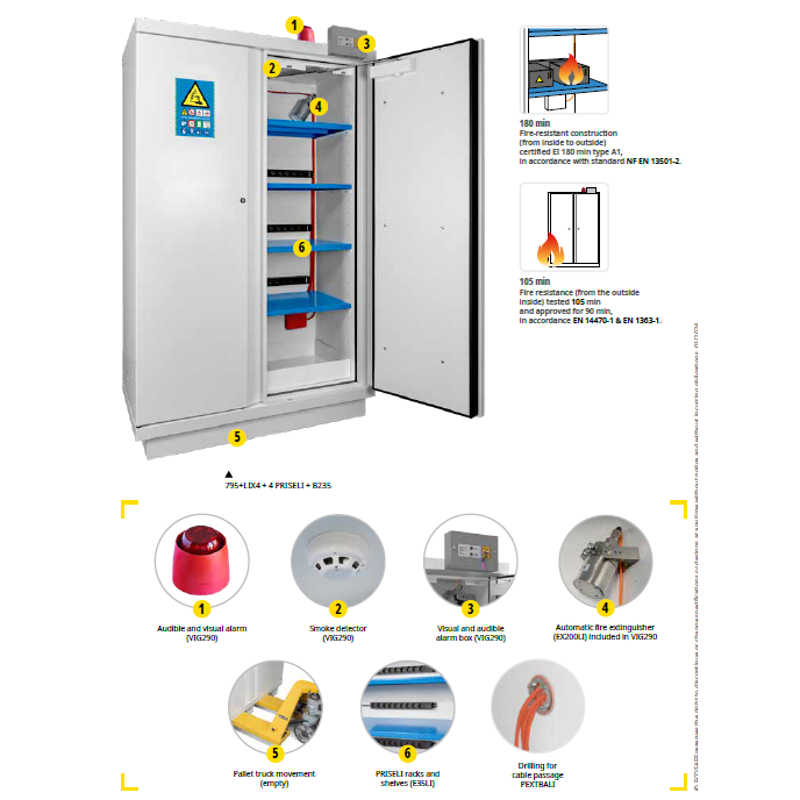

Security Cabinets for Lithium Batteries 90 minutes - 1100 x 1137 x 670 mm

Security Cabinets for Lithium Batteries 90 minutes

1100 x 1137 x 670 mm

Fire resistance (from the outside inside) tested 105 min and approved for 90 min, in accordance EN 14470-1 & EN 1363-1.

COMPLIANCE

• REGULATION - EU -2023/1542 - Article 42 - 4. Storage or transport conditions ensure the conformity of batteries.
• Complies with level 2 of standard EN 16121+A1 (opening/ closing 80000 cycles and placement of the load defined by the manufacturer on the shelves).
• Proven fire resistance of 105 minutes, according to the ISO 834 curve as per the EN 14470-1 standard
• Standardized warning labels in accordance to ISO 3864 and ISO 7010, as well as the European directive 92/58/EEC.

FEATURE

• 105-minute fire resistant and made in France

• Storage of flammables and Lithium Batteries

• Locking system

• Thermo-expanding seals of the doors

• Reduce the risk of fire and explosion

• Holes for the connection to the ventilation

DESCRIPTION

• Cabinet Material Sheet steel 12/10th and inner body built in melamine

• External dimensions H x W x D (mm) 1100 x 1137 x 670

• Internal dimensions H x W x D (mm) 820 x 1000 x 410

• Load capacity per shelf (kg) 51

• Nb of Doors 2

• Doors type Swing Doors

• Hinges Left and right

• Door closure Automatic Closure

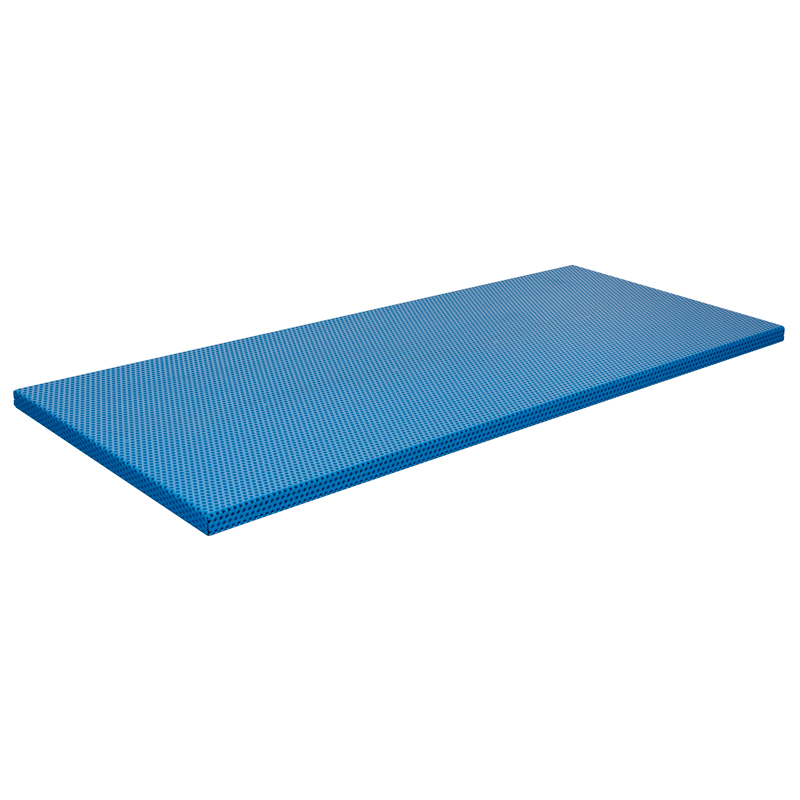

• Perforated shelves 2

• Weight (Kg) 297

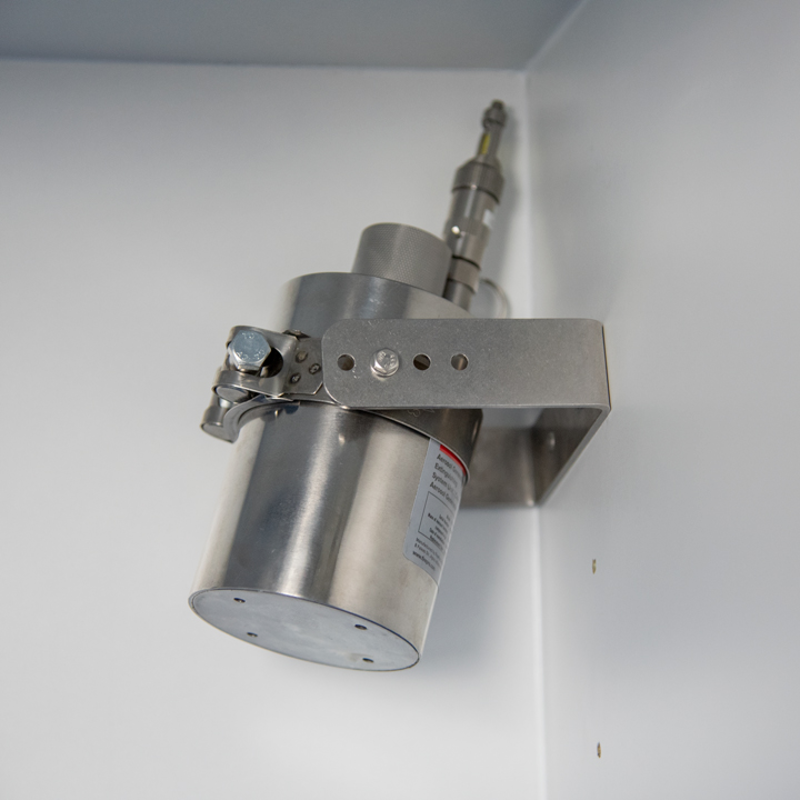

• Pre-Equipped with 2 x Perforated Shelf + Fire Extinguisher With Automatic Triggering at 79°C per Thermal Bulb for Lithium

 To further secure the storage ,Optional solutions, Accessories Recommended

• CONTAINMENT SUMP : Retention capacity (L)40  - 30 Min Fire Resistance.

• Perforated cover plate 30 Min Fire Resistance

• Rack of 8 electrical outlets

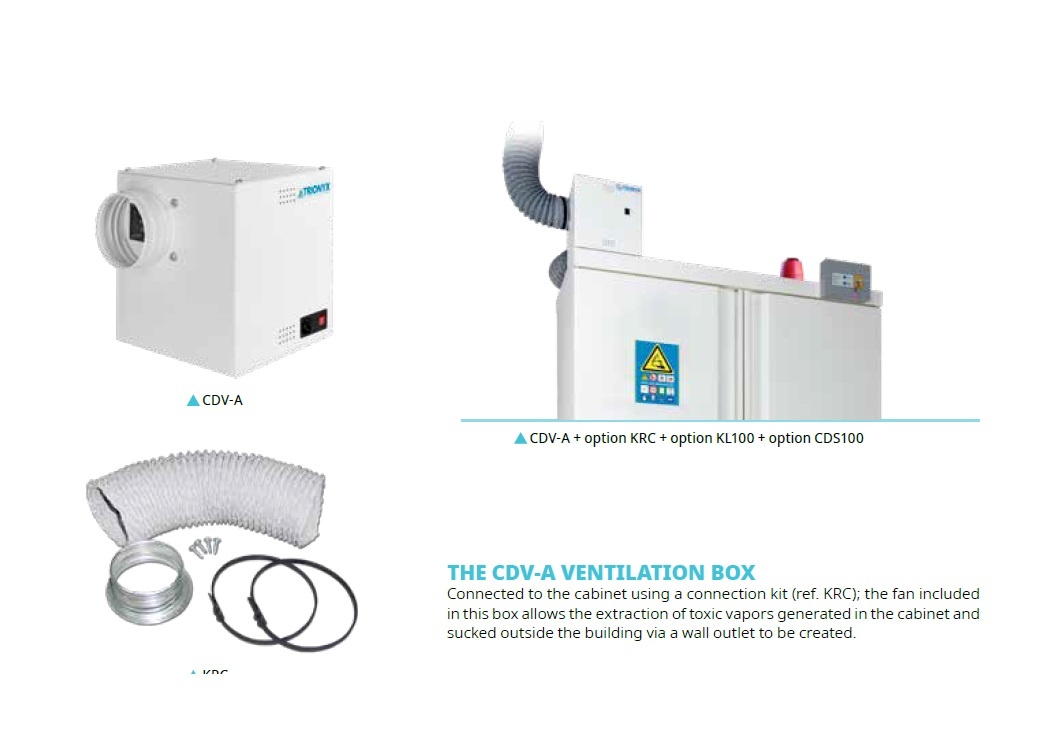

• Ventilation box for a connection to the outside

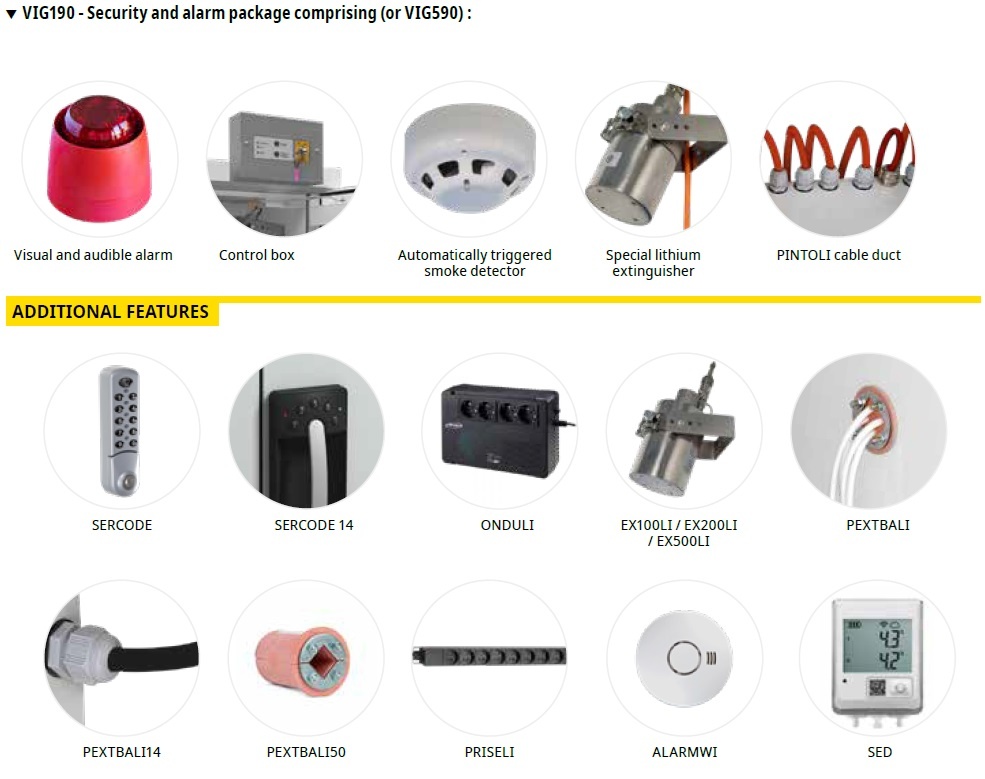

• Visual & audible alarm + control box + smoke detector + fire extinguisher+Cable Duct

• Connecting kit

• Breakthrough for cable entry with fire-resistant cable

RECOMMANDATION

• For Simple battery storage: Cabinet equipped with perforated shelves and a Containment sump.

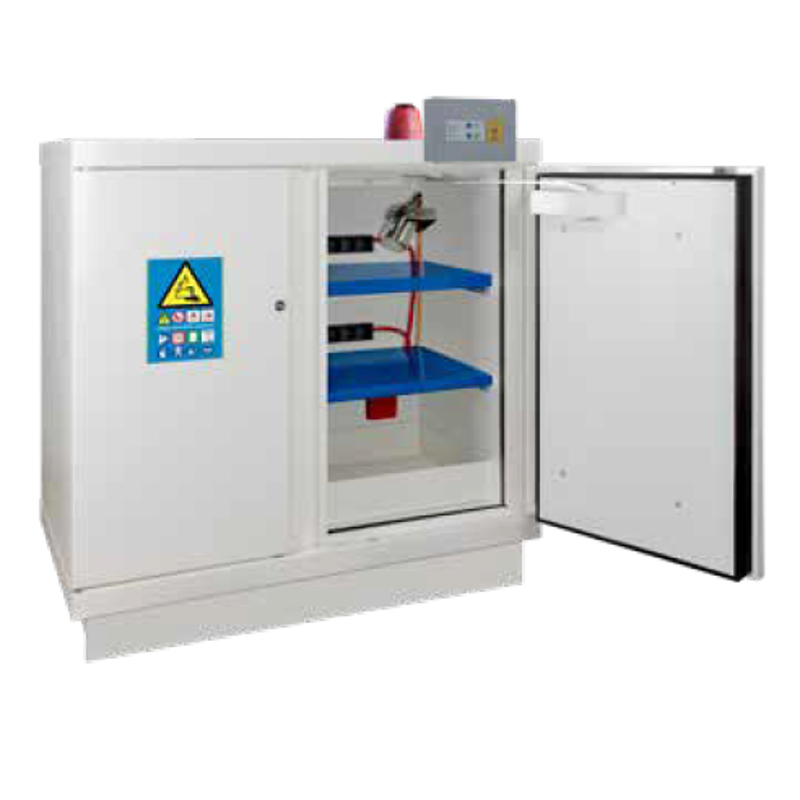

• For Storage and charging of batteries: Cabinet equipped with perforated shelves, a Containment sump and electrical outlet racks .

• For Simple battery storage + advanced protection system: Cabinet equipped with perforated shelves with  a Containment sump + optional advanced protection system (either a fire extinguisher or a security set including visual and sound alarm, control box, automatic smoke detector, fire extinguisher and cable passthrough)..

• For Storage and charging of batteries + advanced protection system: Cabinet equipped with perforated shelves, a Containment sump and electrical outlet racks + optional advanced protection

  system (either a fire extinguisher or a security set including visual and sound alarm, control box, automatic smoke detector, fire extinguisher and cable pass-through)

In the event of a fire, the cabinets must not be moved except by the fire brigade.
