Steel column protection column collision protection

Steel column protection, collision protection

Protect columns easily, quickly and cost-effectively.

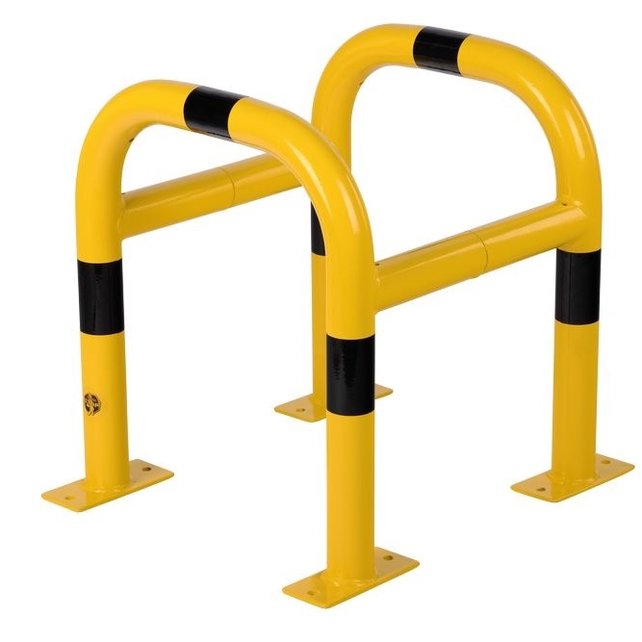

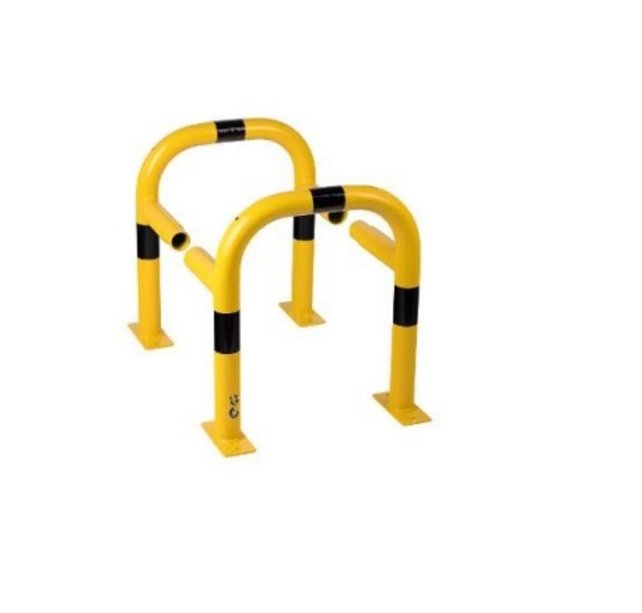

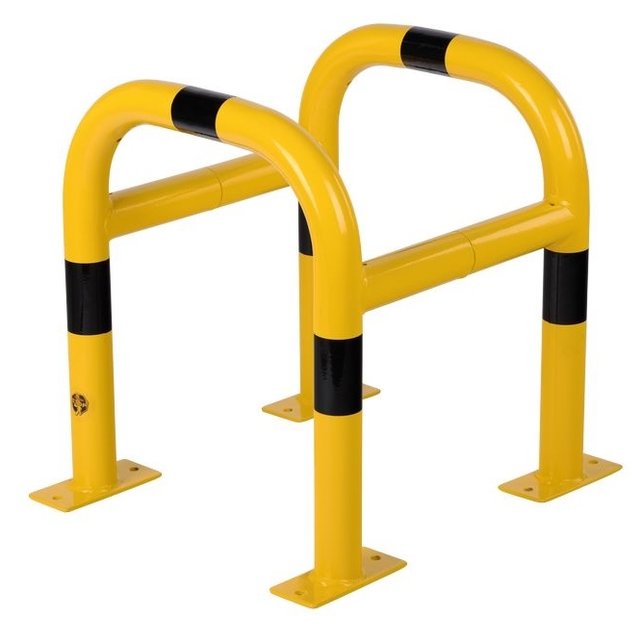

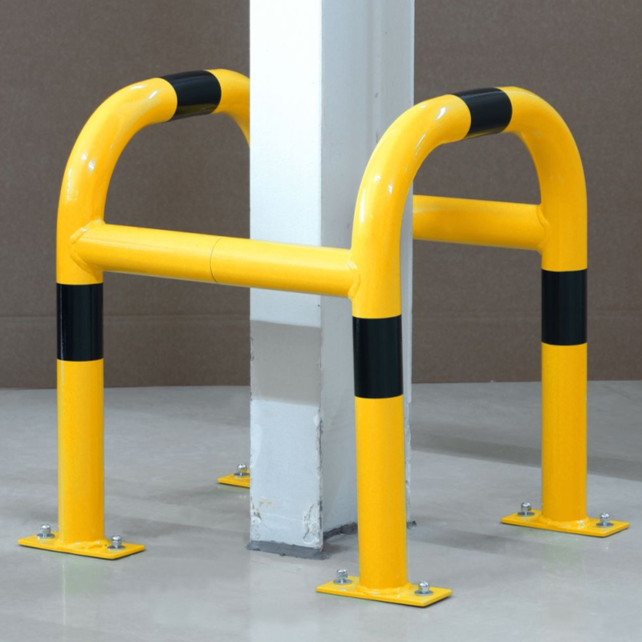

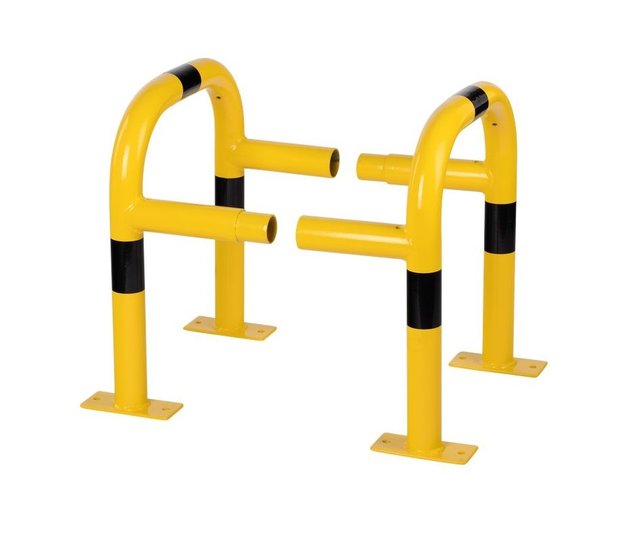

The steel column protection is a perfect solution to protect columns up to 400 x 400 mm inside and outside. The tubular tubes are connected to the steel beams to form a stable whole. The yellow-black warning markings make the product highly visible. Mounting with foot plates.

Up to 400mm W x 400mm L
2 parts: 600mm H x 520mm W
galvanized and powder coated yellow (similar to RAL 1023) for outdoor use or powder coated for indoor use,
for floor mounting - bottom plate dimensions: 160 mm W x 70 mm D with 8x drill holes Ø 12.5 mm

• Steel material

• Surface galvanized powder coated

• Material thickness (mm) 3.2

• Color yellow

• Warning sign black warning sign

• Overall length (mm) 620

• Overall width (mm) 520

• Total height (mm) 600

• Diameter (mm) 60

• Net weight (kg) 16.6

• Length without base plate (mm) 520

• Width without base plate (mm) 520

• Application area indoors and outdoors

• Installation site paved ground

• Mounting plug and screw on

• Number of mounting holes 8

• Mounting included Mounting material not included

• Accessories (optional) Mounting Art. No. FIX 1

• Foot plate length (mm) 160

• Foot plate width (mm) 120

• Foot plate height (mm) 6

• Foot plate color yellow

• Approval / Certification TÜV certified (according to DGUV 108-007 / previously BGR 234)

Steel column protector, square, height 600 mm, side length 500 mm, two-piece, base plate 160 x 70 mm with 12.5 mm drill holes, galvanized and powder coated yellow (similar to RAL 1023), with black warning marking, with base plate for floor mounting, for outdoor use

Protect columns easily, quickly and cost-effectively. Innovative and economical protection of columns. Thanks to the modular system, a tailor-made solution can always be delivered
through individual cuttings.
Easy installation.

Do you have any questions or are you interested in a quote? We are happy to offer you support. You can email us at [email protected] or reach us at 0652883848. In order to provide you with the best support, we ask that you send drawings / photos / information about your project.
