Swivel wheel

200mm 300kg

Nylon Polyamide A white

Specification

• Wheel material: Polyamide A - nylon
• Wheel diameter: 200 mm
• Tread width: 50 mm
• Hub width: 59 mm
• Load capacity: 300 kg
• Dimensions mounting plate: 135x110 mm
• Distance bolt holes:105x84/76 mm
• Bolt size: M12
• Plate thickness: 3.5 mm
• Total height: 235 mm
• Bearings: roller bearing
• Housing surface: zinc blue
• Temperature: - 40 to + 80 ° C
• Standard: EN 12532

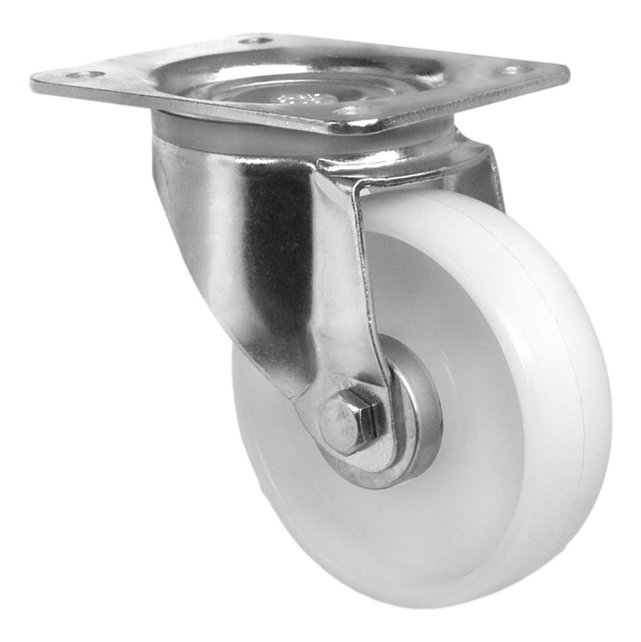

Swivel castor without brake with a diameter of 200 mm and a load capacity of 300 kg. This wheel is made entirely of nylon - polyamide A and is therefore extremely suitable for hard and flat surfaces. It is provided with a top plate for fixing and can be fixed with 4 bolts. Make sure the size of the mounting plate and bolt holes match what you need!

Nylon wheels are durable, easy to clean, have a high load-bearing capacity and good rolling properties. For uneven floors, thresholds, tiles or, for example, more sound absorption, it is better to use PU or Elastic Rubber wheels.

Do you need advice? Contact us immediately via email [email protected] or telephone +31652883848
