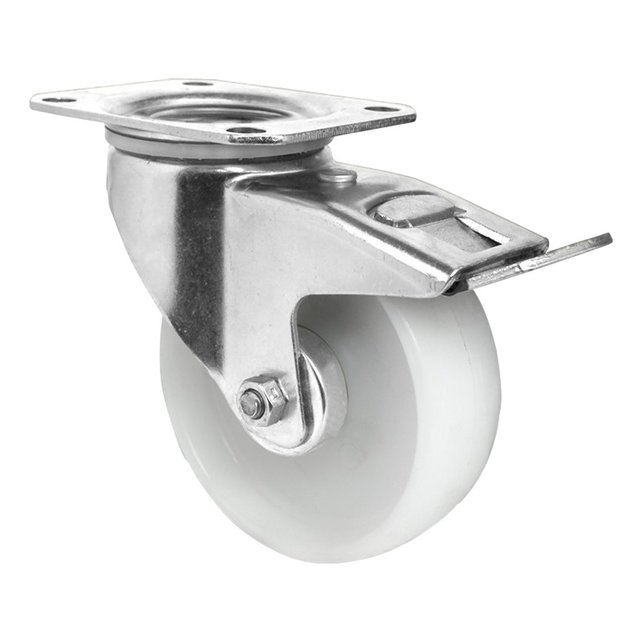

Swivel wheel with brake

160mm 300kg

Nylon polyamide A white

Specification

• Wheel material: Polyamide a  - nylon
• Wheel diameter: 160 mm
• Tread width: 50 mm
• Hub width: 59 mm
• Load capacity: 300 kg
• Dimensions mounting plate: 135x110 mm
• Distance bolt holes: 105x84/76 mm
• Bolt size: M12
• Plate thickness: 3.5 mm
• Total height: 195 mm
• Bearings: roller bearing
• Housing surface: zinc blue
• Temperature: - 40 to + 80 ° C
• Standard: EN 12532

Swivel castor with brake with a diameter of 160 mm and a load capacity of 300 kg. This wheel is made entirely of nylon - polyamide a and is therefore extremely suitable for hard and flat surfaces. It is provided with a top plate for fixing and can be fixed with 4 bolts. Make sure the size of the mounting plate and bolt holes match what you need!

Nylon wheels are durable, easy to clean, have a high load-bearing capacity and good rolling properties. For uneven floors, thresholds, tiles or, for example, more sound absorption, it is better to use PU or Elastic Rubber wheels.
