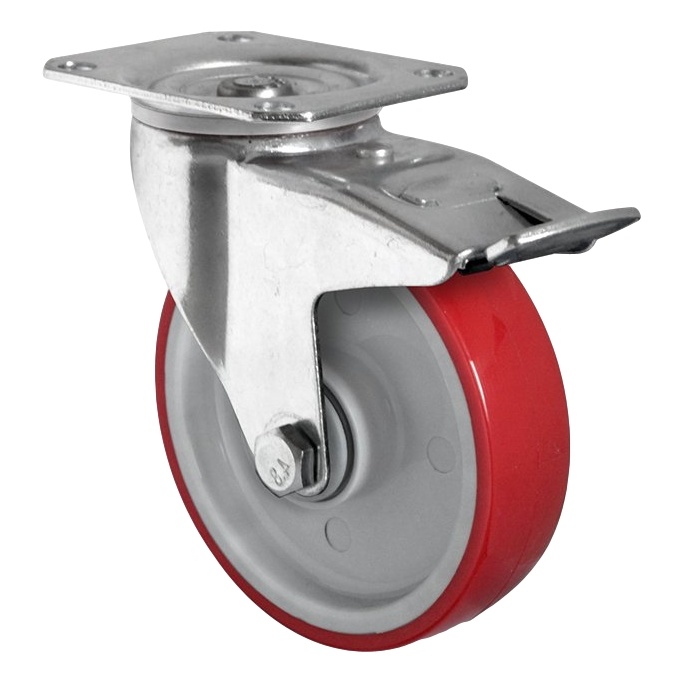

Swivel wheel with brake

200mm 350kg

PU red

Specification

• Wheel material: PU
• Wheel diameter: 200 mm
• Tread width: 46 mm
• Hub width: 59 mm
• Load capacity: 350 kg
• Dimensions mounting plate: 135x110mm
• Distance bolt holes: 105x84/76mm
• Bolt size: M12
• Plate thickness: 4.0 mm
• Total height: 235 mm
• Bearings: roller bearing
• Housing surface: zinc blue
• Temperature: - 40 to + 80 ° C
• Standard: EN 12532

Swivel castor with brake with a diameter of 200 mm and a load capacity of 350 kg. This wheel is made of PU and suitable for many applications. It is especially suitable for indoor spaces. It is provided with a top plate for fixing and can be fixed with 4 bolts. Make sure the size of the mounting plate and bolt holes match what you need!

PU wheels are tear and wear resistant, do not leave marks on the floors and are also quieter than other wheels. For uneven floors, thresholds, tiles or, for example, more sound insulation, it is best to choose PU or Elastic Rubber wheels.
